2000 Anayak HVM-3300
2000 Anayak HVM-3300
Contact us for price
Minnesota
orCall (863) 439-6066
Description

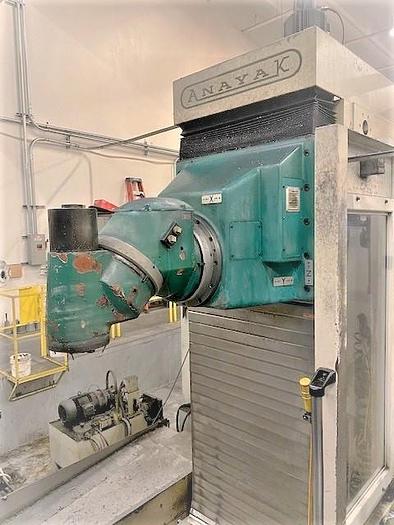

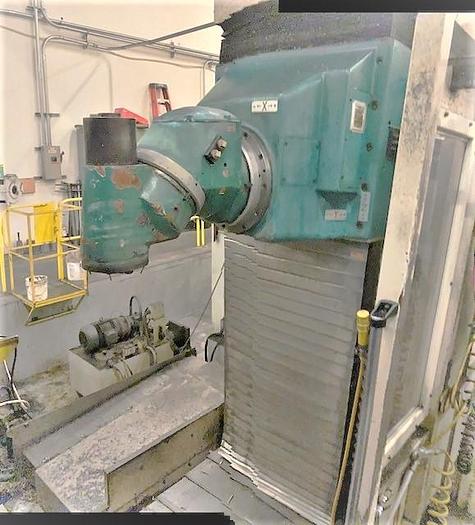

Universal A/B Axis Head with 2.5 Degree Index Movement
Chip Conveyor
Way Covers

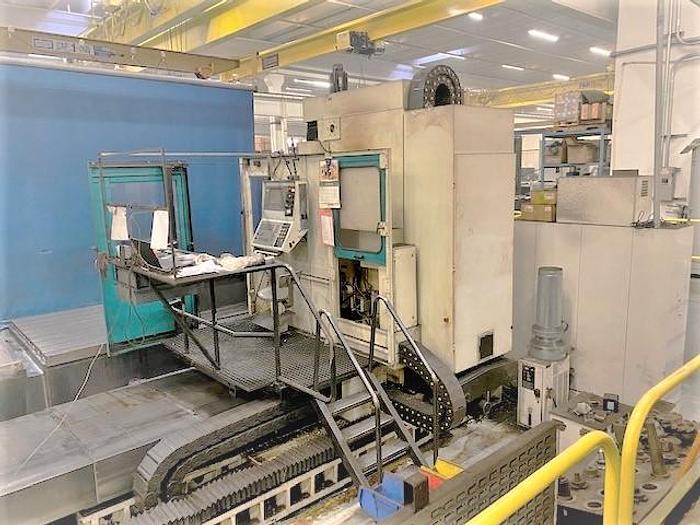

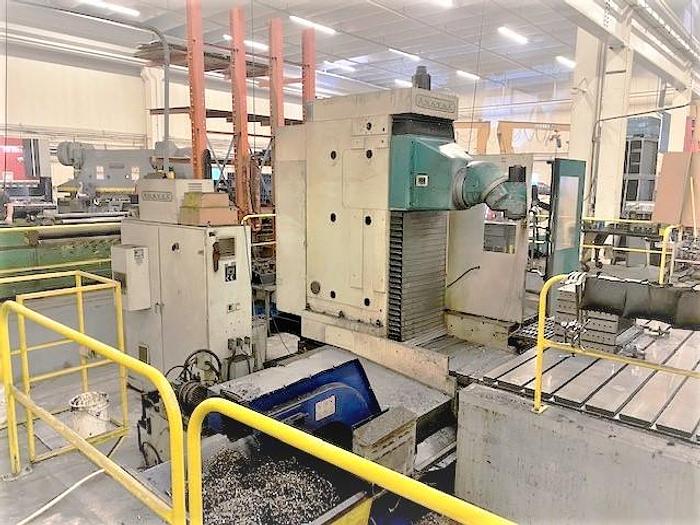

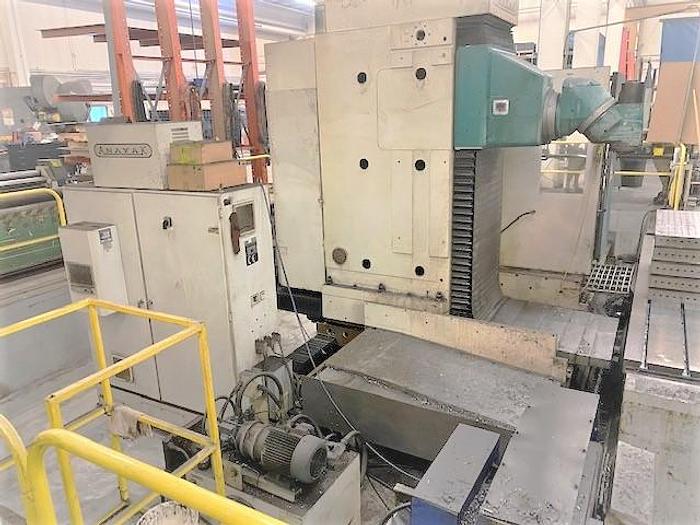

Traveling Column Design Allowing For Heavy Workpieces
RS 232 Port Interface
All Available Manuals
675V Electrics
**Manufactured New May of 2000**

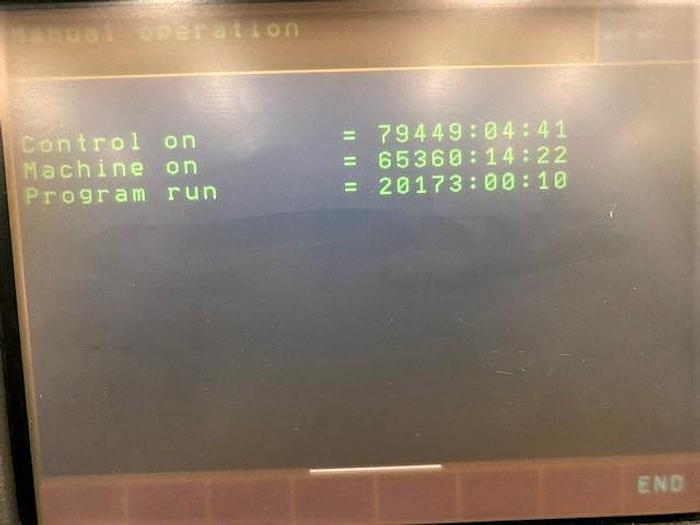

**Control On Hours 79,499**
**Machine On Hours 65,360**
**Program Run Hours 20,173**
**Good running machine, shop has new machine coming in March 2023**
Specifications
| Manufacturer | Anayak |
| Model | HVM-3300 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118564 |

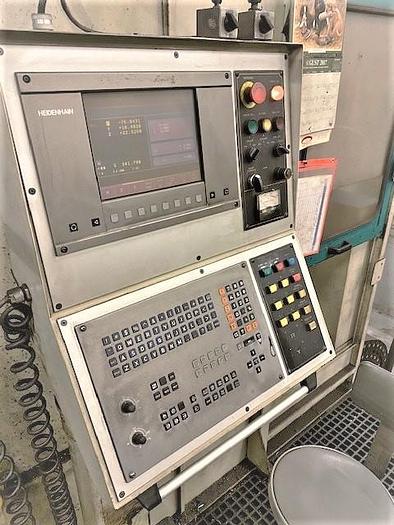

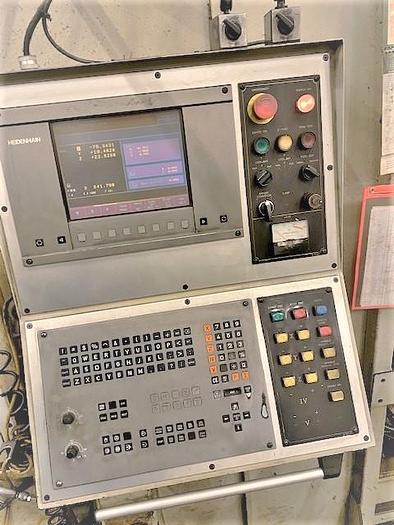

| Machine Control | Heidenhain Control |
| Table Size | 141.84" x 39.4" |
| Maximum Table Load | Unlimited |
| X-axis travel | 106.38" |
| Y-Axis Travel | 47.28" |
| Z-Axis Travel | 57.52" |
| C-Axis Rotation | +0/-180 Degrees (2.5 Degree increments) |
| B-Axis Rotation | -180 / +170 Degrees (2.5 Degree increments) |
| Spindle Diameter | 5" |
| Spindle Taper | ISO 50 |
| Spindle Speeds | 60 - 4,000 RPM |
| Spindle Motor | 30 HP |
| Maximum Tool Diameter / Length / Weight | 4.53" / 13.79" / 55 lbs. |
| Rapid Traverse Rates | 394 IPM |
| Cutting Feedrates | 236 IPM |
