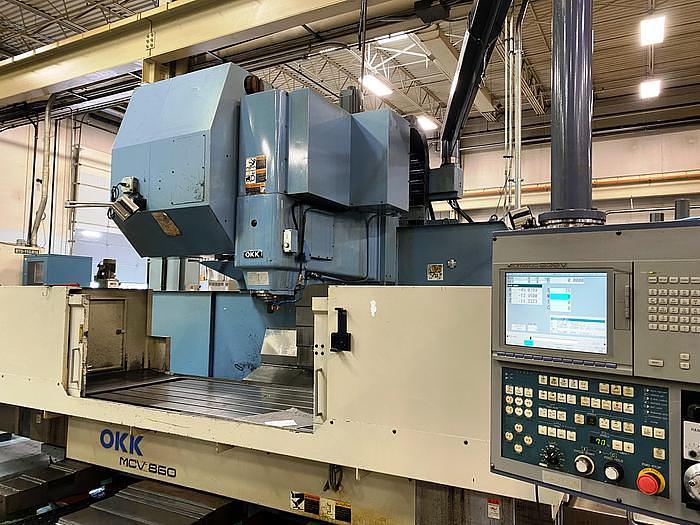

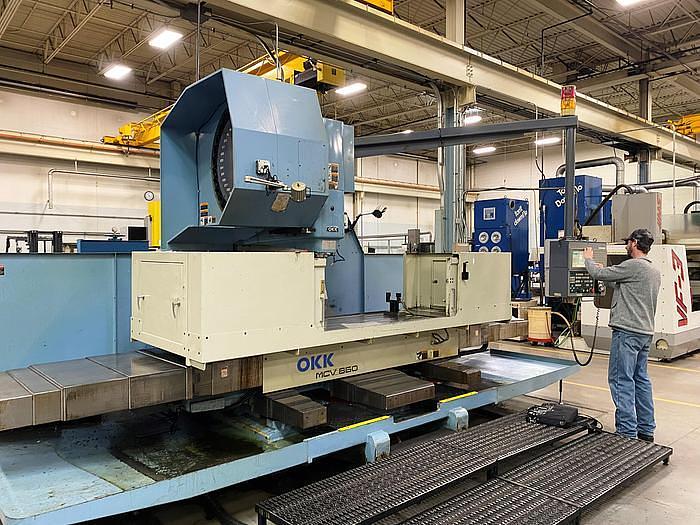

2002 OKK MCV-860
2002 OKK MCV-860
$89,500 (USD)
Location:Wisconsin
or
Call (863) 439-6066
Description
30 Station Side Mounted Tool Changer Spindle Oil Chiller Unit Remote Jog Handle Coolant Through the Spindle

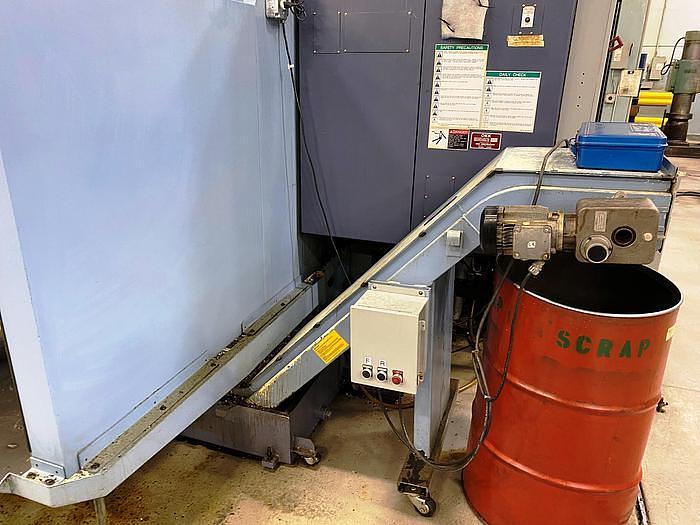

Chip Conveyor

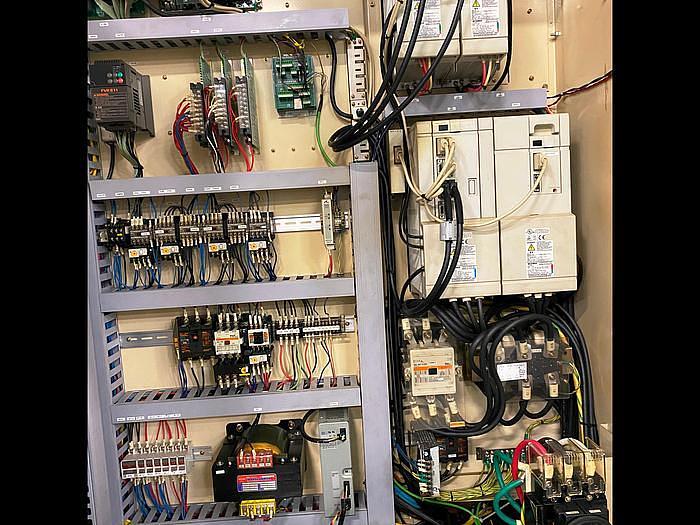

Table Guarding for Coolant Splash 3 Color Machine Status Condition Lights 3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank & Pump Wired 220V Electrics
Uses OKK 90 Pull Studs
Made in Japan
**From Clean Mold/Die Shop Environment**
Specifications
| Manufacturer | OKK |
| Model | MCV-860 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 118560 |

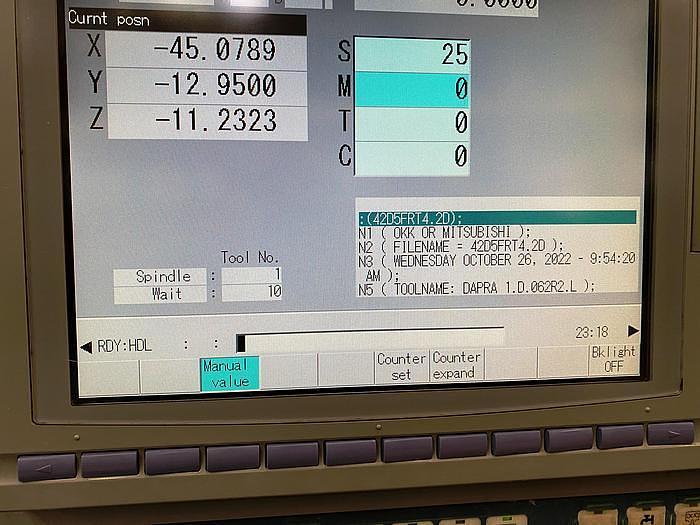

| Control | OKK Neomatic 635 Control |

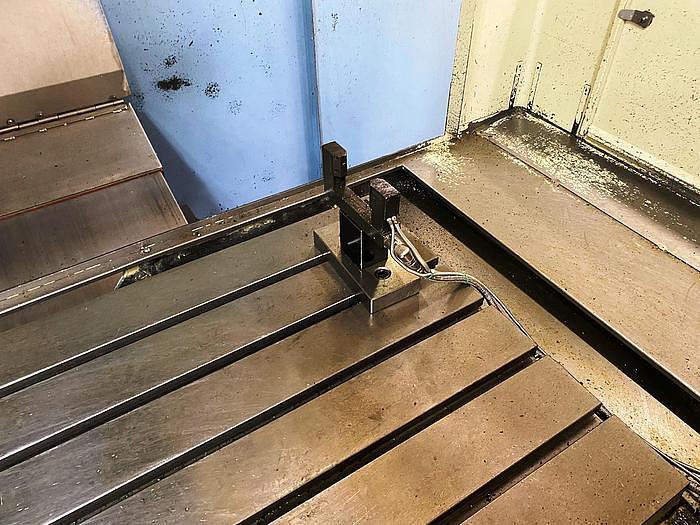

| Table size | 90.55" x 33.46" |
| Maximum Weight on Table | 6,613 lbs. |
| X-Axis Travel | 80.31" |
| Y-Axis Travel | 33.85" |
| Z-Axis Travel | 28.34" |
| Spindle Taper | CAT #50 |
| Spindle Speeds | 25 - 4,500 RPM |
| Spindle Motor | 25 HP - 2 Speed Geared |
| Distance Spindle Nose to Table Top | 7.87" - 36.22" |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Machine Dimensions | 220" x 174" x 141" |
| Machine Weight | 37,400 lbs. |
