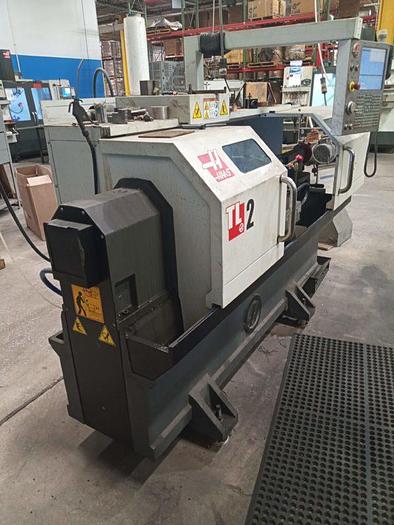

2016 Haas TL-2
No longer available
2016 Haas TL-2
New Jersey
Description

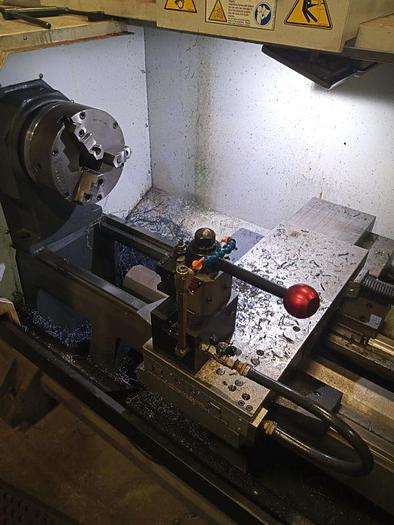

8" Samchully FTC-273 3 Jaw Manual Scroll Chuck

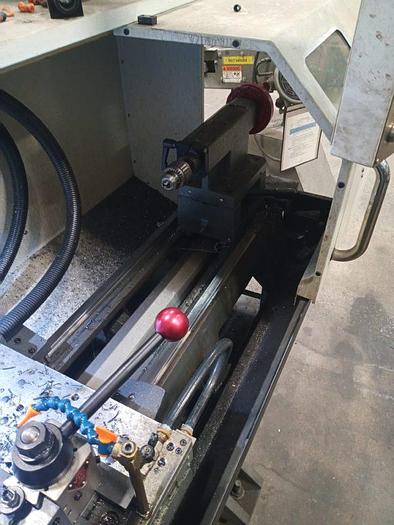

Tailstock
Dorian V35TC Quick Change Tool Post

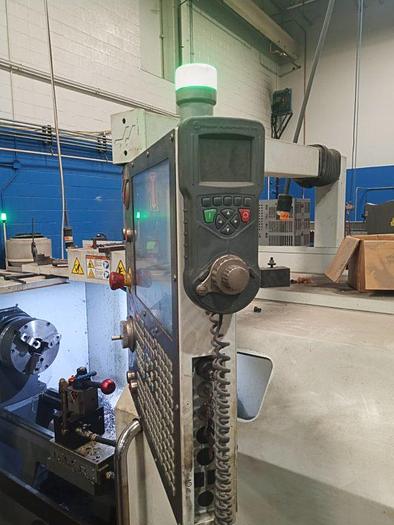

Remote Jog Handle
2,000 RPM Spindle
Work Light
Coolant System with Tank & Pump
Full Enclosure Doors Early Power Failure Detection Module
USB Port Interface
RS 232 Port Interface Vector Drive Spindle
**All Service Performed by the HFO office**

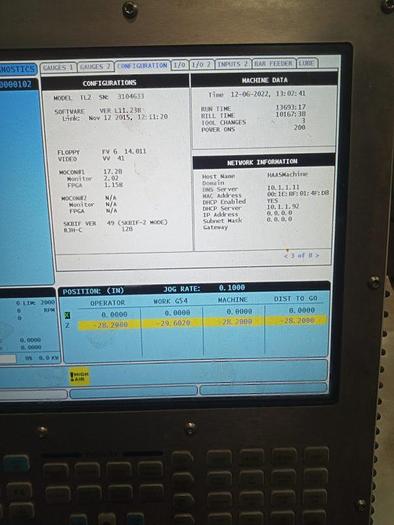

**Run Hours 13,691**
**Approximate Spindle Hours 4,500**
Specifications
Manufacturer | Haas |
Model | TL-2 |
Year | 2016 |
Condition | Used |
Stock Number | 118551 |
Control | Haas CNC Control |
Chuck Size | 8" 3 Jaw Scroll Chuck |
Maximum Swing over Bed | 20" |
Maximum Swing Over Cross Slide | 11" |
Maximum Cutting Diameter | 16" |
Maximum Machining Length | 48" |
X-axis travel | 8" |
Z-Axis Travel | 48" |
Spindle Nose / Spindle Bore | A2-5" / 2.31" |
Spindle Speeds | 2,000 RPM |
Spindle Motor | 10 HP |
Number of Turret Positions | Toolpost |
Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
Machine Dimensions | 138.6" x 57.4" x 72.4" |
Machine Weight | 5,000 lbs. |
