2007 Haas SL-30 Chucker
No longer available
2007 Haas SL-30 Chucker
$29,500 (USD)
Location:Wisconsin
Description
Haas Barfeed Interface for Servo 300 Loader (barfeed not included)

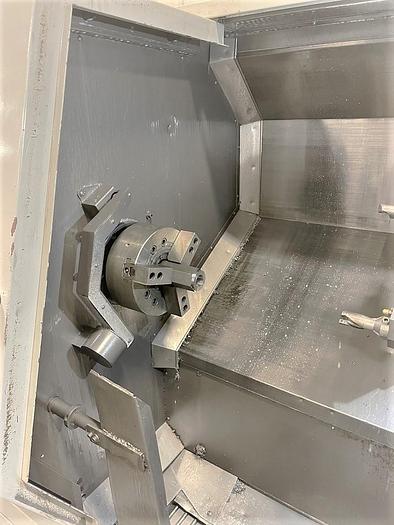

10" 3 Jaw Hydraulic Chuck
Chip Conveyor - Belt Type
Parts Catcher
Tool Presetter

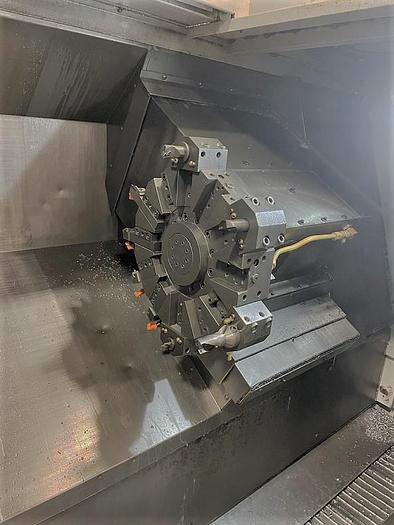

Block Style Turret
Rigid Tapping
Chuck Open/Close Foot Pedal
208/230V 3 Phase Electrics
All Available Manuals
All Available Tool Blocks
ONLY 19,056 Machine Run Hours
Approximately 7,500 Cutting Hours
**Unit does have a hydraulic leak in the acuator**
**Barfeed seen in photos NOT included**
**Manufactured New in September of 2007**
Specifications
| Manufacturer | Haas |
| Model | SL-30 Chucker |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118542 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 14.5" |
| Maximum Turning Length | 34" |
| Maximum Bar Capacity | 2.5" |
| Distance Between Centers | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00" |
| Spindle Speeds | 20 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 129" x 66" x 74" |
| Machine Weight | 14,000 lbs |
