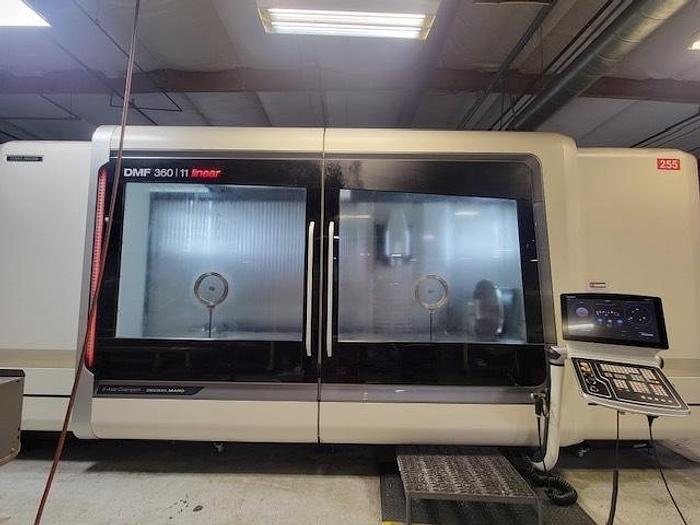

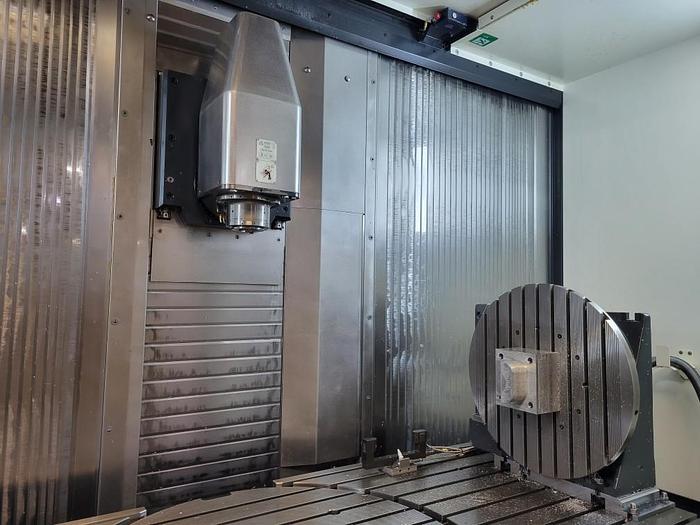

2017 DMG-Mori DMF 360 | 11 Linear

No longer available

2017 DMG-Mori DMF 360 | 11 Linear



Universal Style Pendulum B Axis Head

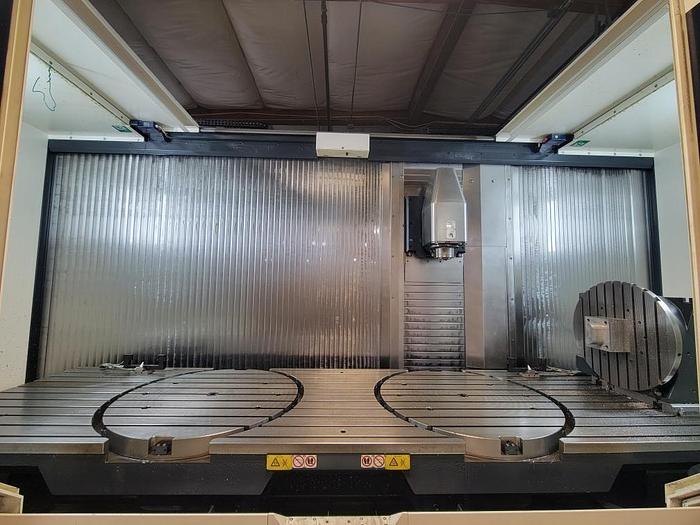

(2) Built In Rotary Tables

(1) Horizontal Rotary Table NC Sub Table 700 A Axis for Right Working Area

120 Station Tool Changer

Removable Partition Wall

Chip Conveyor

Renishaw Probing

Blum Tool Laser Measuring

Inner Cooler

Spray Gun

Air Blast

3D Quick Set

3D Data Model

Oil Separator

Coolant System with Tank & Pump USB Port Interface RS-232 Port Interface

All Available Manuals

CSA Specification

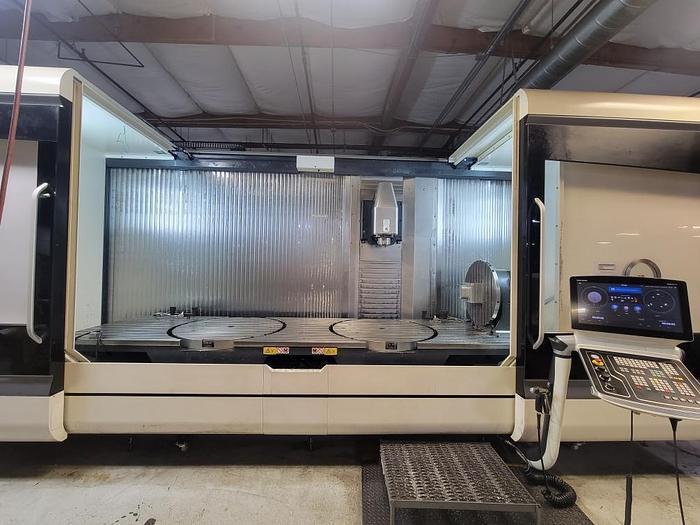

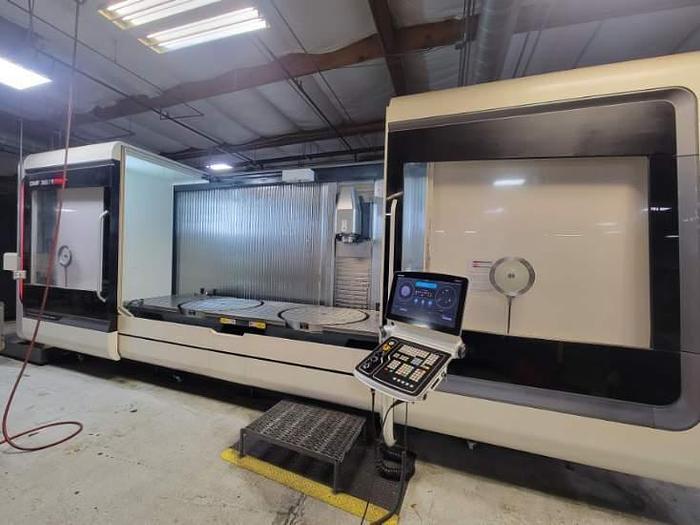

**Partition wall is removable for pendulum machining in 2 working spaces**

**Price of new as equipped at $956,100**


ModelDMF 360 | 11 Linear
Stock Number118540
Table Size 141.7" x 43.3"
Maximum Table Load 11,023 lbs.
X-Axis Travel141.7"
Machine Weightnot available

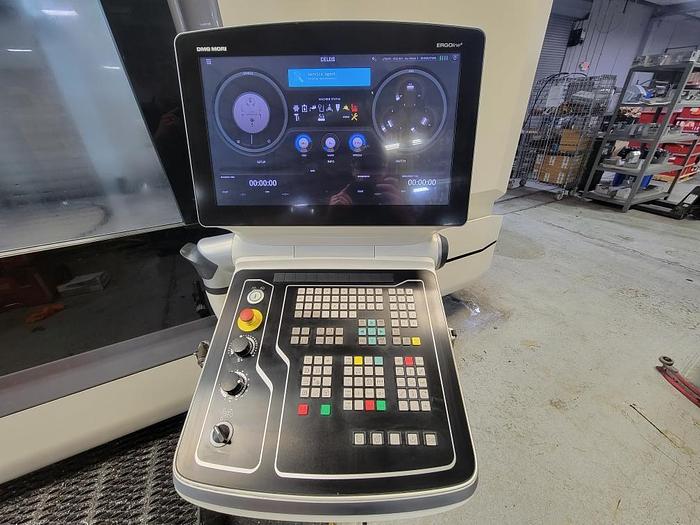

ControlSiemens 840D Ergoline w/ Celos Control
Maximum Workpiece Size165.4" x 43.3"
Y-Axis Travel43.3"
Z-Axis Travel35.43"
A-Axis Movement - Spindle Tilt+/- 100 Degree Tilt
B-Axis Table Rotation.001 Degree Full 4th Axis
Rotary Table Diameter41.3"
Spindle TaperCAT 50
Spindle Speeds10,000 RPM
Spindle Motor59 HP
Number of Tool Positions120 Station Tool Changer
Rapid Traverse Rates X, Y / Z 3940 IPM, 2364 IPM / 3149 IPM
Machine Dimensions not available
Maximum Workpiece Diameter / Height55.1" / 36.6"
