2016 Nakamura Tome WT-150 II

2016 Nakamura Tome WT-150 II

$219,500 (USD)

Pennsylvania

orCall (863) 439-6066

Description

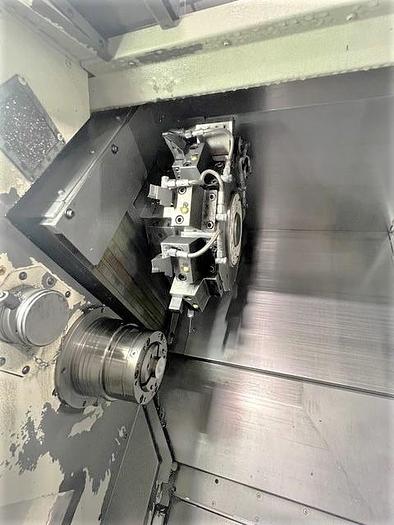

(1) 12 Position Upper Turret - Live Tools - Y Axis

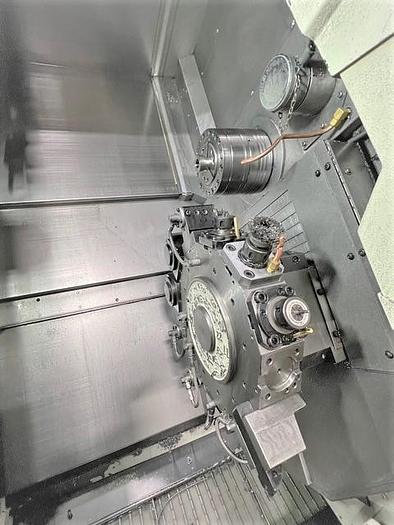

(1) Lower Turret with 12 Positions - Live Tools Twin Spindle Design

Y Axis Capability on Upper Turret Only Full C Axis on Both Spindles Live Milling/Drilling Capability

Subspindle

Hainbuch Spanntop 65mm Mini Combi Pull Back Collet Chuck on Main Spindle

Hainbuch Spanntop 65 Dead Length Collet Chuck for Sub Spindle Kitagawa 6" 3-Jaw Hydraulic Chuck on Sub Spindle

LNS Quick Load Servo S3T Short Magazine Barfeeder Parts Catcher A for Left Spindle

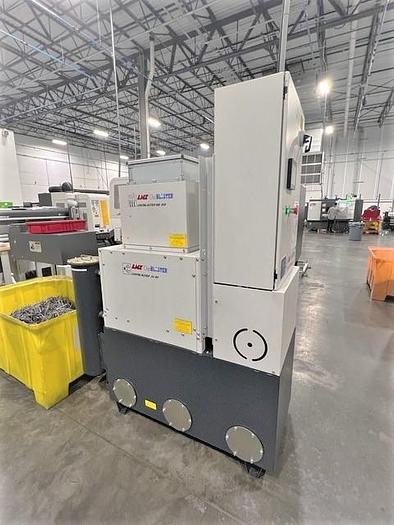

Parts Catcher G for Right Spindle Chip Conveyor Chip Blaster JV40 1000 PSI High Pressure Coolant System

Chip Blaster Mist Blaster 300 CFM Mist Colletor

Removable Tool Setter

All Available Tool Holders

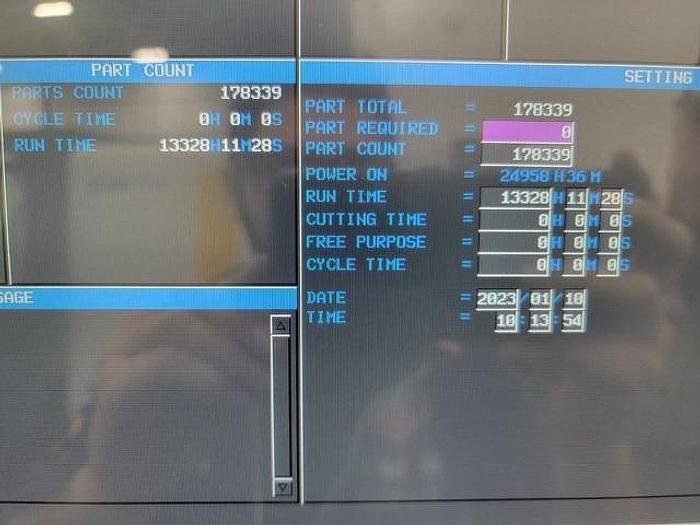

All Available Manuals Power On Hours 24,958

Run Hours 13,328


**Price New as equipped at $475,110**

Specifications

ManufacturerNakamura Tome
ModelWT-150 II
Year2016
ConditionUsed
Stock Number118538
ControlFanuc 31iB
Chuck Sizes Main / SubspindleCollet / 6" 3 jaw Hydraulic & Collet
Maximum Turning Diameter7.48"
Maximum Turning Length20.3"
Distance Between Spindles7.87" - 29.6"
Maximum Bar Capacity Left Spindle / Right Spindle2.05" / 2.05"
X1 / X2 Axis Travel6.59" / 6.59"
Y-Axis Travel Upper Turret+/- 1.38"
Z1 / Z2 Axis Travel20.3" / 20.3"
B-Axis Travel - Subspindle23.7"
C Axis Spindle Rotation - Both Spindles0.001 degree
Number of Turrets2 Turrets
Number of Turret Positions12 Stations / 24 Positions - Both
Main Spindle Nose / Subspindle NoseA2-6" / A2-5"
Spindle Speed / Spindle Motor Left Spindle4,500 RPM / 20 HP
Spindle Speed / Spindle Motor Right Spindle5,000 RPM / 15 HP
Milling Spindle Speed / Milling Motor6,000 RPM / 7.37 HP
Machine Dimensions142" x 78" x 73"
Machine Weight19,600 lbs.
