2019 DMG-Mori NHX-4000 5CPP
No longer available
2019 DMG-Mori NHX-4000 5CPP
Location:Utah
Description

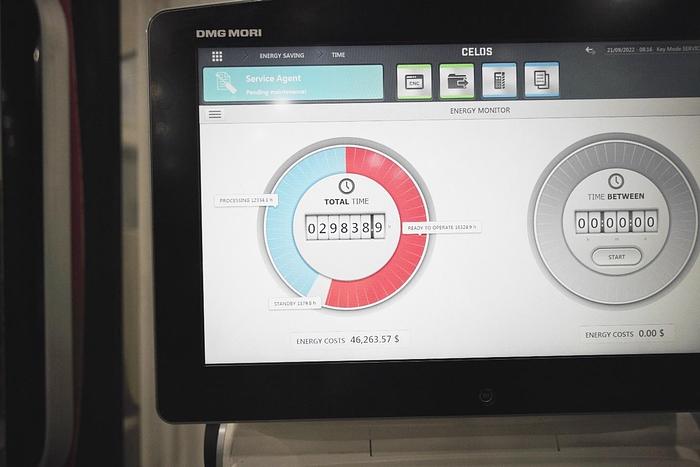

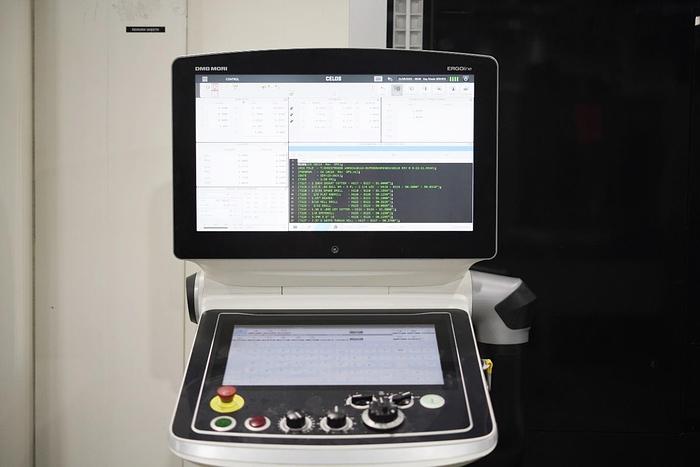

Fanuc F31iB w/CELOS (MAPPS V) ERGOline Touch
Gen 3

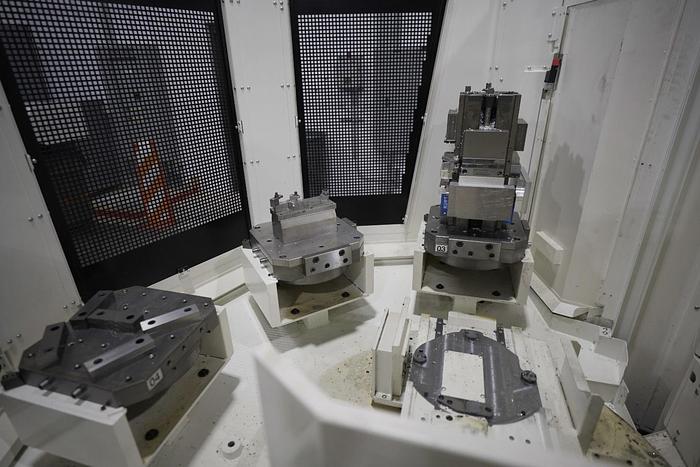

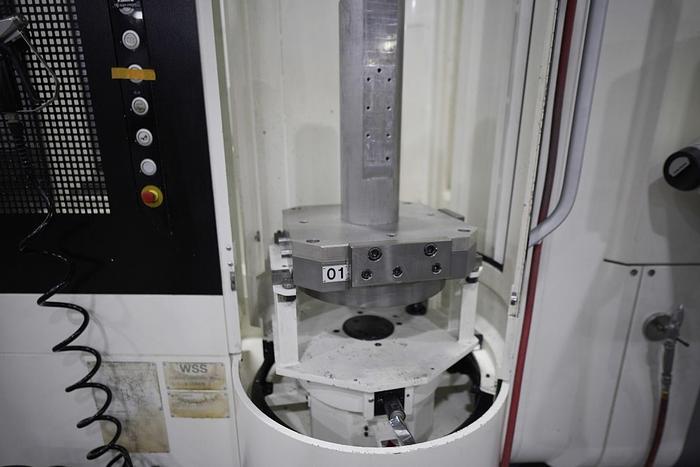

5-Pallet Pool
Sludge Coolecting inside Coolant Tank
In-Machine Measuring System (Spindle) Touch Sensor
Renishaw OMP60 + Workpiece Setter
Tool Breakage Detection
Water-Glycol Spindle Chiller Unit
Manual Pulse Generator
Full Closed Loop Control, Scale Feedback
Chip Conveyor
Specifications
Manufacturer | DMG-Mori |
Model | NHX-4000 5CPP |
Year | 2019 |
Condition | Used |
Stock Number | 118531 |
Machine Control | Fanuc F31iB |
Table Size / Number of Pallets | 15.7"x15.7" / 5-Pallet Pool |
Maximum Table Load | 882 lbs |
X-axis travel | 22" |
Y-Axis Travel | 22" |
Z-Axis Travel | 26" |
Table Indexing | .001 Degree Full 4th Axis |
Maximum Workpiece Diameter / Height | 24.8" / 35.4" |
Spindle Speed | 20,000 rpm |
Spindle Motor | 50 hp |
Spindle Taper | BT 40 |
Tool Magazine Capacity | 240 atc |
Machine Dimensions LxWxH | 106"x165"x119" (For a two pallet machine) |
Machine Weight | 18,700 lbs includes Coolant Tank |
