2007 Mitsubishi MD+Pro II
No longer available
2007 Mitsubishi MD+Pro II
Location:California
Description

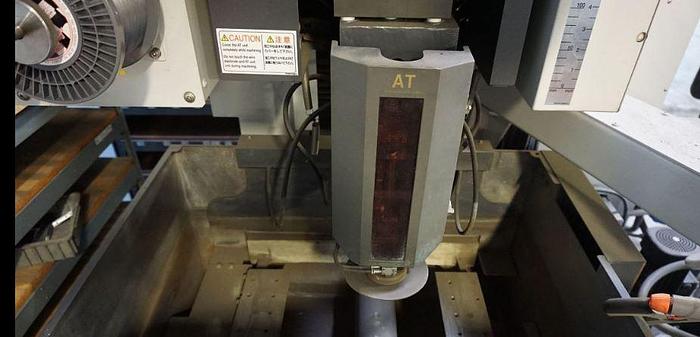

Submerged Machining

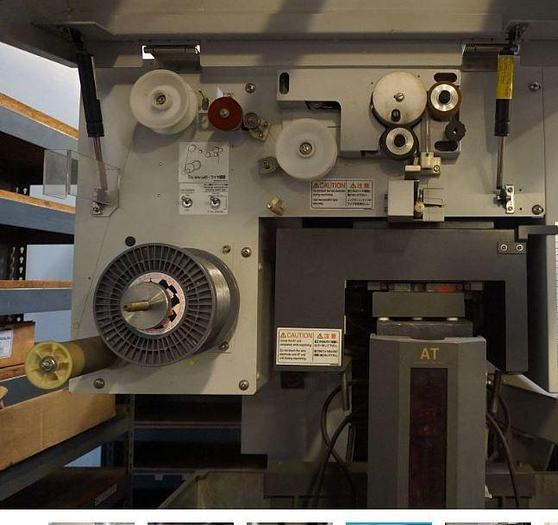

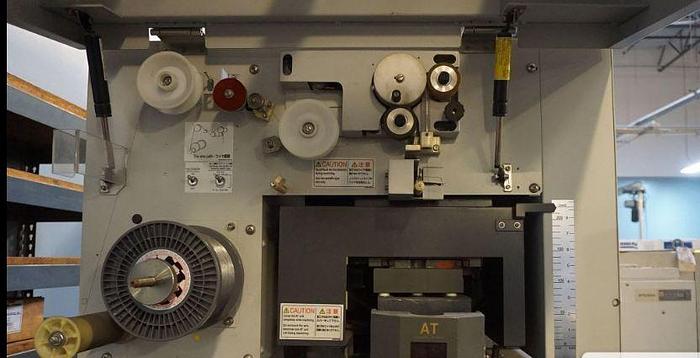

Auto Wire Threading
U&V Axis (5-Axis)
AC Servo Drives
Electric Chiller Unit

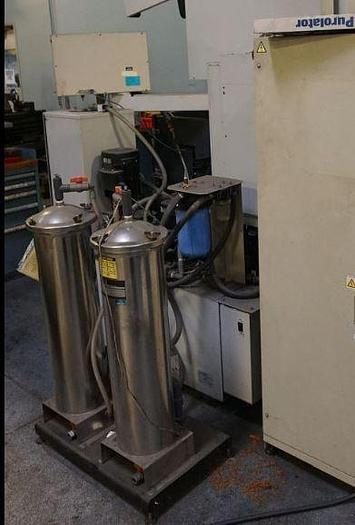

Filter System
All Available Manuals
Specifications
| Manufacturer | Mitsubishi |
| Model | MD+Pro II |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118529 |

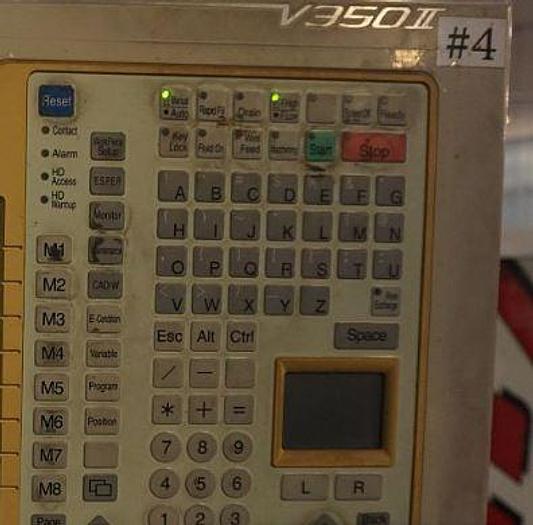

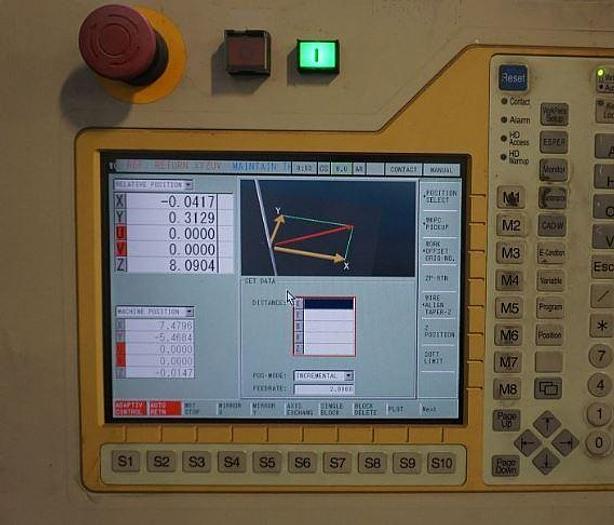

| Machine Control | Mitsubishi V350II |
| Number of Axes | 5 |
| Table size | 21.3"x16.9" |
| Maximum Table Load | 1,100 lbs |
| X-Axis Travel | 12.6" |
| Y-Axis Travel | 9.8" |
| Z-Axis Travel | 8.7" |
| U/V-Axis Travel | 1.3" |
| Taper Capacity | 153.9 Degrees |
| Minimum Wire Diameter | .004" |
| Maximum Wire Diameter | .012" |
| Dielectric Tank Capacity | 116 Gallons |
| Machine Dimensions LxWxH | 70"x94"x80" |
| Machine Weight | 4,500 lbs |
