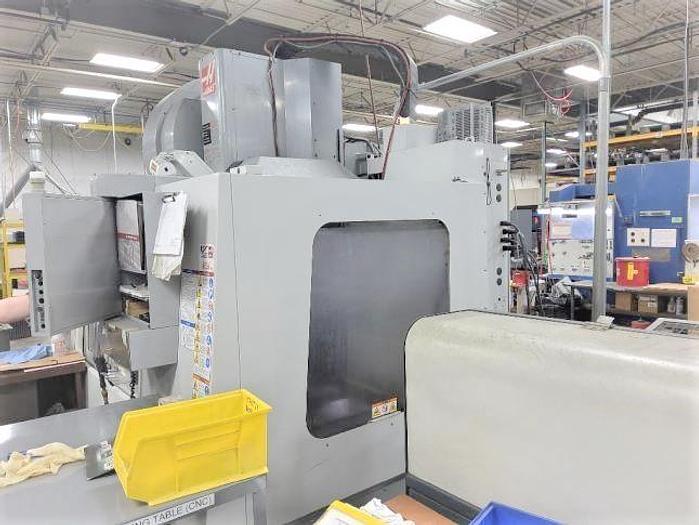

2007 Haas VF-3BYT/40
No longer available
2007 Haas VF-3BYT/40
$64,500 (USD)
Location:Michigan
Description

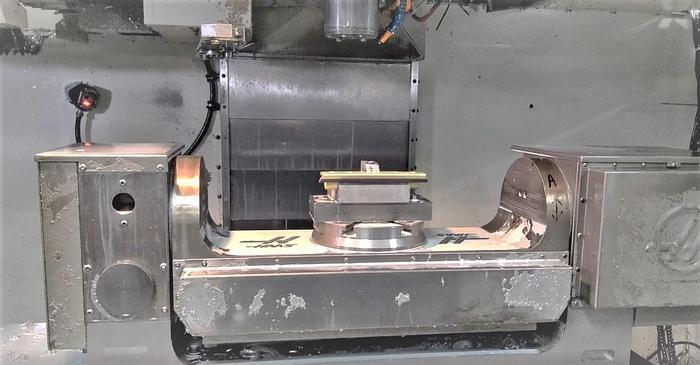

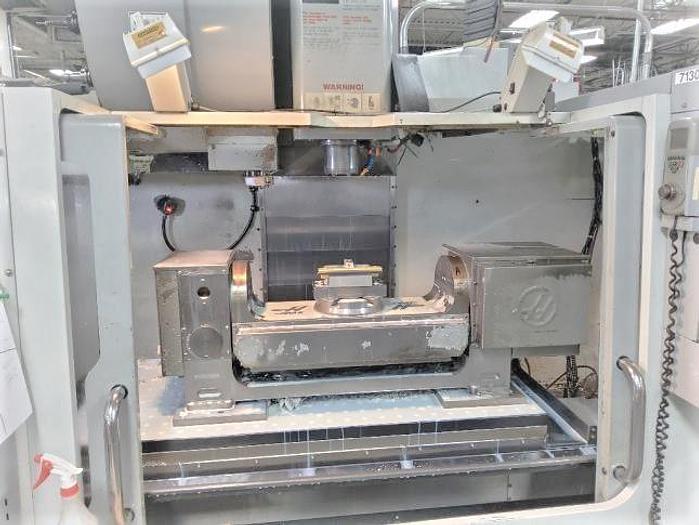

Haas TR-160 Trunnion Style Table

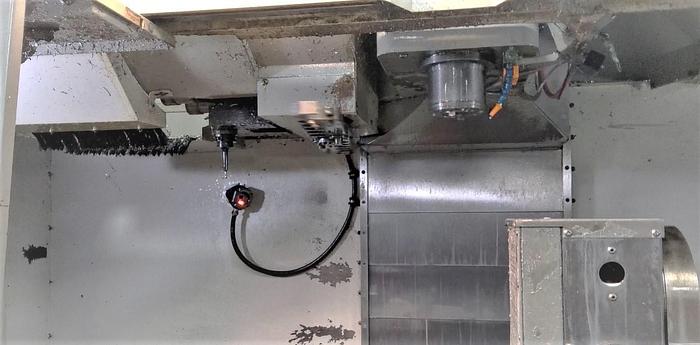

Haas Renishaw Probing
Coolant Through the Spindle
2 Speed Gearbox
40 Station Side Mounted Tool Changer
10,000 RPM Spindle
Auger Style Chip Conveyor Programmable Coolant Nozzle Spindle Orientation Coordinate Rotation & Scaling Remote Jog Handle User Definable Macros
Vector Drive Spindle

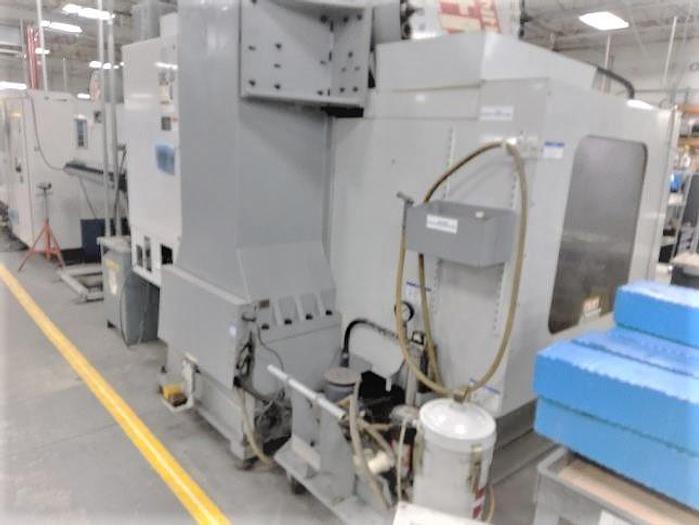

USB Port Interface RS 232 Port Interface Coolant System with Tank & Pump All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF-3BYT/40 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118517 |

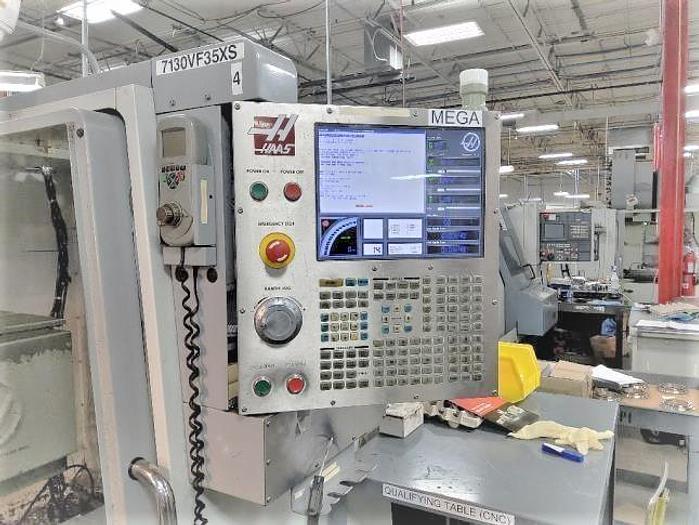

| Control | Haas CNC Control |
| Table Size | 52" x 24" |
| Maximum Weight on Table | 3,500 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| A-Axis Travel | +/- 120 Degrees |
| B-Axis Rotation | 0.001 Degrees |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM - 2 Speed Gearbox |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 7" / 16" / 30 lbs. |
| Tool Change Time Chip to Chip | 6.3 seconds |
| Rapid Traverse Rates | 1000 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions | 156" x 102" x 109" |
| Machine Weight | 12,560 lbs. |
