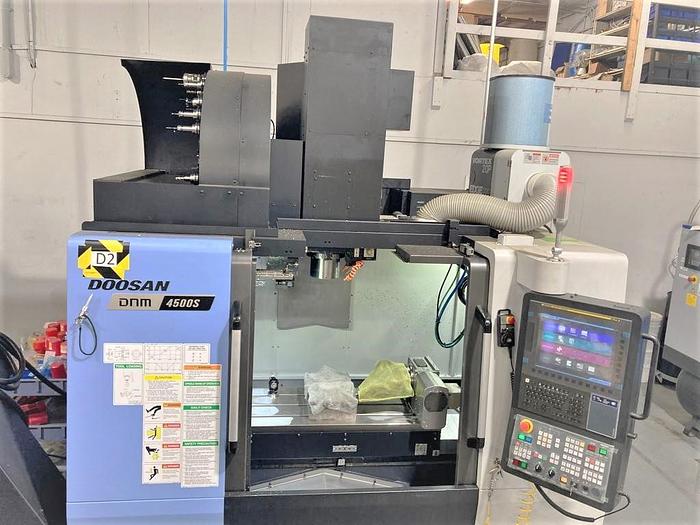

2021 Doosan DNM 4500S
No longer available
2021 Doosan DNM 4500S
$119,500 (USD)
Location:Florida
Description

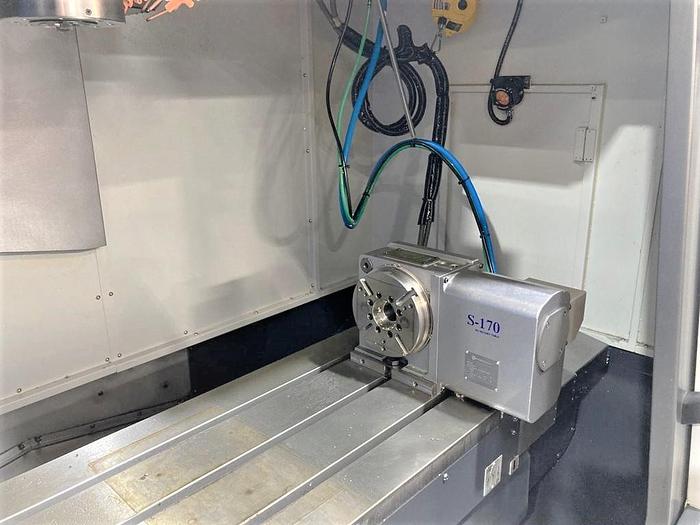

Samchully Model S-170 4th Axis Rotary Table
High Pressure Coolant Through the Spindle
Renishaw Tool Measurement Probing
Prepped for Part Probing (spindle mounted part probe available for additional cost)
40 Station Side Mounted Tool Changer

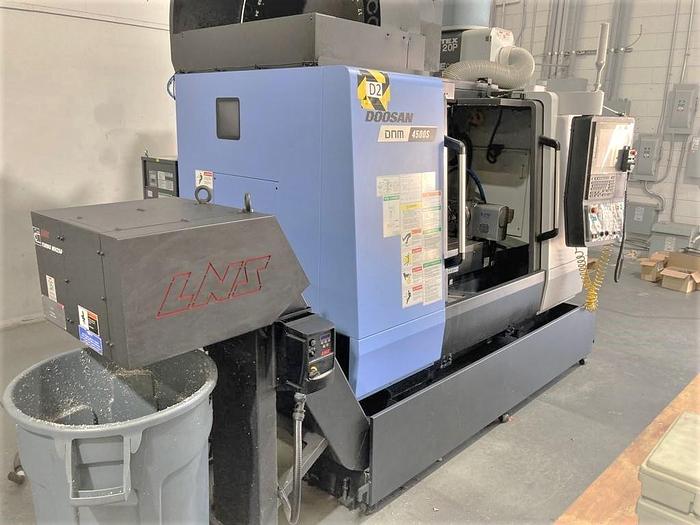

Chip Conveyor - MH250 Fine Filtering Belt Type
Edge Model Vortex 20P Mist Collector System
Rigid Tapping
Remote Jog Handle
Spindle Orientation
Custom Macro B
Work Light
Coolant System with Tank & Pump
Spindle Chiller
USB Port Interface
RS 232 Port Interface
Wired 220V/3/50-60 Hz Electrics
All Available Manuals
Includes (20) CAT 40 Tool Holders
**Customer Paid $143,300 new as equipped**
**Manufactured New in March of 2021**

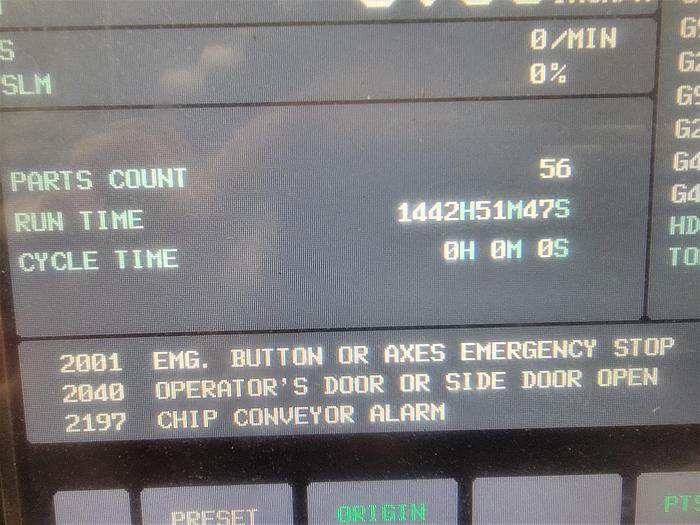

**ONLY 1,442 Hours of Run Time**
Specifications
| Manufacturer | Doosan |
| Model | DNM 4500S |
| Year | 2021 |
| Condition | Used |
| Stock Number | 118515 |

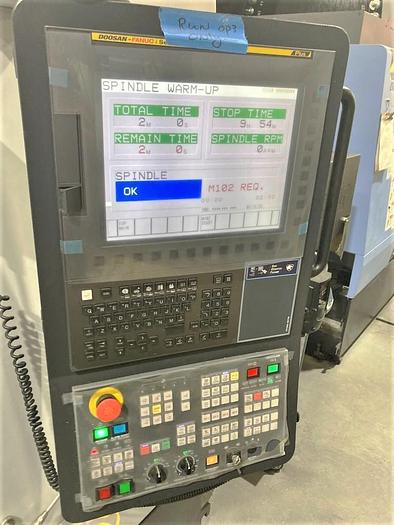

| Machine Control | Fanuc i Series Plus Control |
| Table size | 39.4" x 17.7" |
| Maximum Table Load | 1,100 lbs. |
| X-Axis Travel | 31.5" |
| Y-Axis Travel | 17.7" |
| Z-Axis Travel | 20.1" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 25 HP |
| Distance Spindle Nose to Table Top | 2.9" - 26" |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Tool Change Time Tool to Tool | 1.3 Seconds |
| Rapid Traverse Rates X, Y / Z | 1653 IPM |
| Cutting Feedrates | 590 IPM |
| Machine Dimensions | 110" x 80" x 118" |
| Machine Weight | 11,000 lbs. |
