2008 Mazak Nexus QTN 200-II

2008 Mazak Nexus QTN 200-II

$42,500 (USD)


orCall (863) 439-6066


8" 3 Jaw Hydraulic Chuck

Chip Conveyor

Automatic Tool Eye

Programmable Tailstock

IC Memory Card Interface

PCM CIA Interface (2 slots)

3.5" Floppy Disk Interface

RS232 Port Interface

Hydraulic Pressure Interlock

Chuck Open/Close Confirmation

Door Interlock

Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals

All Available Tooling

Wired 208V Electrics

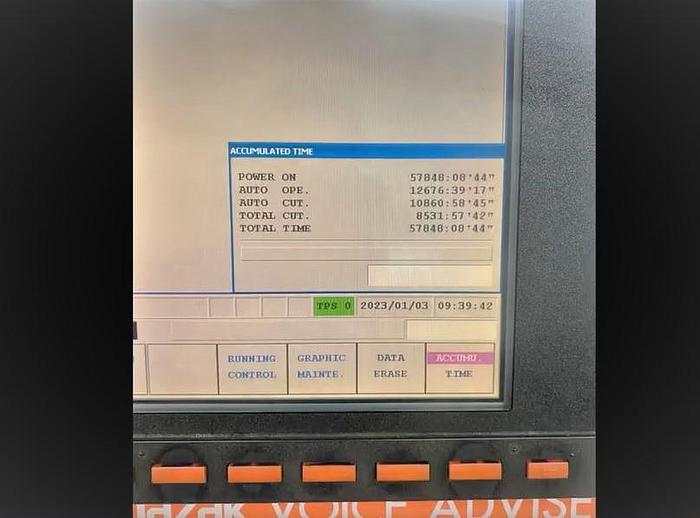

Total Cut Hours 8,531


ModelNexus QTN 200-II
Stock Number118502
ControlMazatrol Matrix Nexus
Chuck Size8" 3-Jaw Hydraulic
Maximum Swing24"
Maximum Cutting Diameter14"
Maximum Machining Length20.1"
X-Axis Travel7.5"
Z-Axis Travel21.125"
Spindle Nose / Bore / Bar CapacityA2-6" / 3.0" / 2.00"
Spindle Speeds5,000 RPM
Spindle Motor35 HP
Number of Turret Positions12 Position Drum
Rapid Traverse Rates X/Z1181 / 1299 IPM
Tailstock Body Travel / Center21.75" / MT#5
Machine Dimensions LxWxH99.6" x 70.1" x 72.4"
Machine Weight10,803 lbs.
