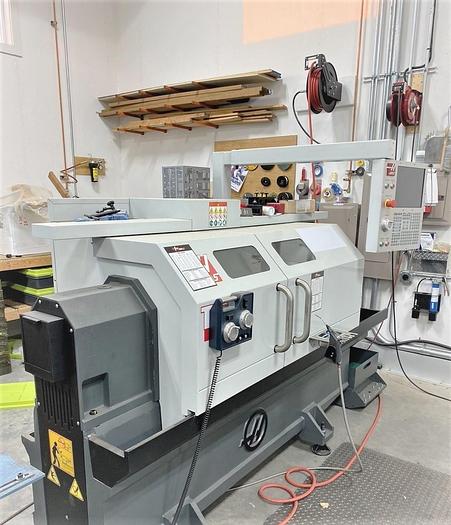

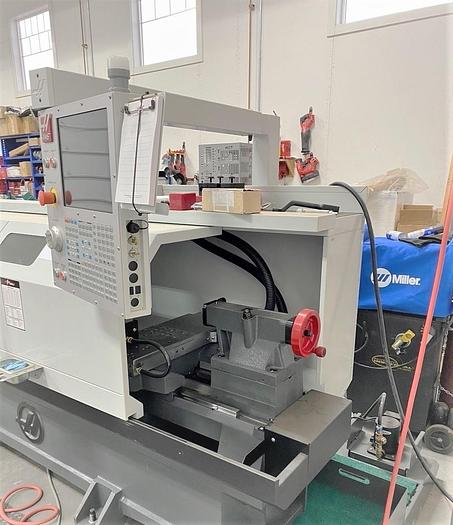

2020 Haas TL-2
No longer available
2020 Haas TL-2
Location:California
Description
8" Samchully 3 Jaw Manual Scroll Chuck
Tailstock
3,000 RPM Spindle Feature with A2-5" Nose
Haas Intuitive Programming System
Rigid Tapping
User Definable Macros
Electronic Hand Wheels Coolant System with Tank & Pump Early Power Failure Detection Module
User Definable Macros 1 GB Program Memory
Full Enclosure Doors
Touch Screen Monitor
Haas Connect
Haas Drop
WIFI Interface
Ethernet Interface
USB Port Interface RS 232 Port Interface Vector Drive Spindle
Low Voltage Transformer
**Optionally Available Dorian Tool Post at additional cost**
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118501 |
| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Scroll Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 12 HP |
| Number of Turret Positions | Cross Slide Only |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 138.6" x 57.4" x 72.4" |
| Machine Weight | 5,000 lbs. |
