2013 Haas DS-30Y

2013 Haas DS-30Y

$89,950 (USD)

California

orCall (863) 439-6066

Description

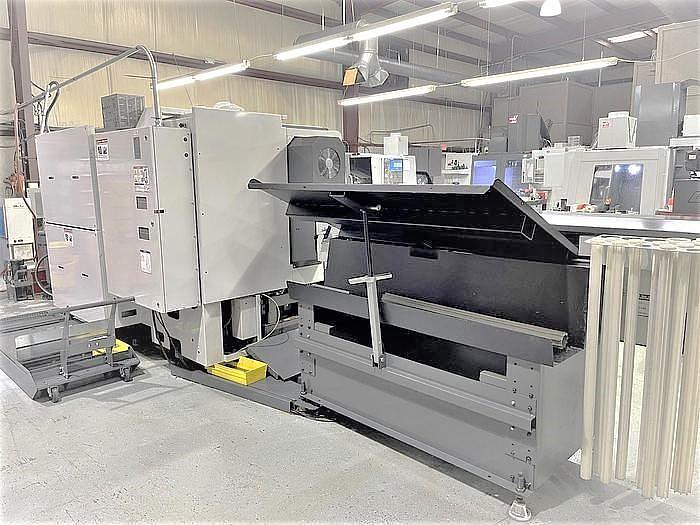

Haas Servo Bar 300 Magazine Barfeed

Y-Axis Capability

Full C Axis Spindle Rotation

Live Milling / Drilling Capability

Subspindle

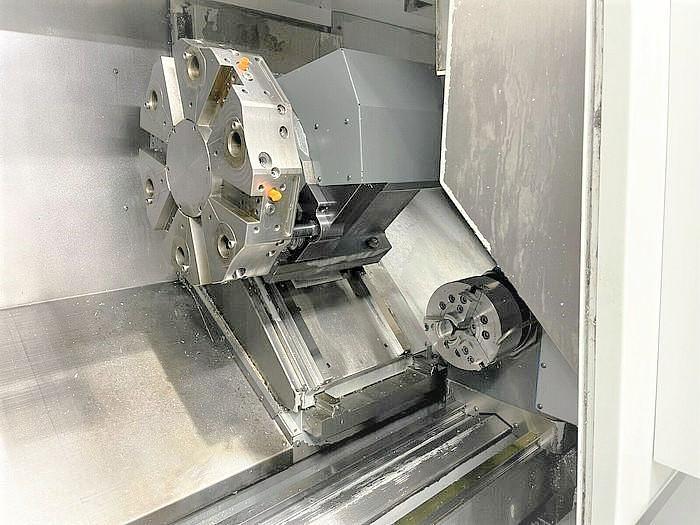

12 Position Turret (VDI/BOT type)

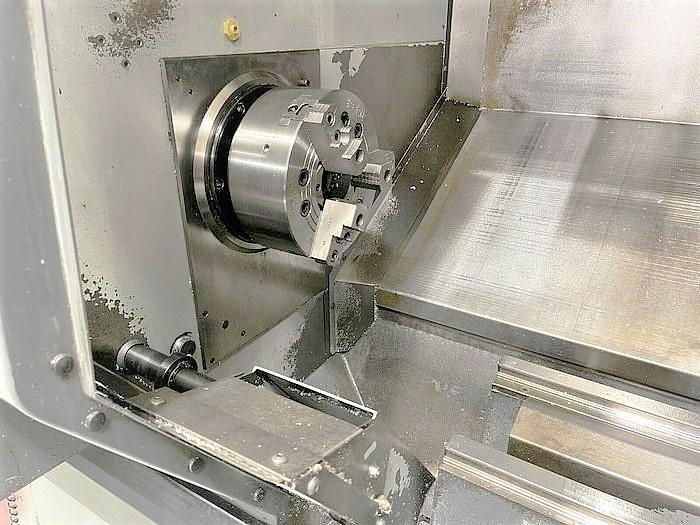

10" 3-Jaw Hydraulic Chuck for Main Spindle

8.3" 3-Jaw Hydraulic Chuck for Subspindle

Parts Catcher

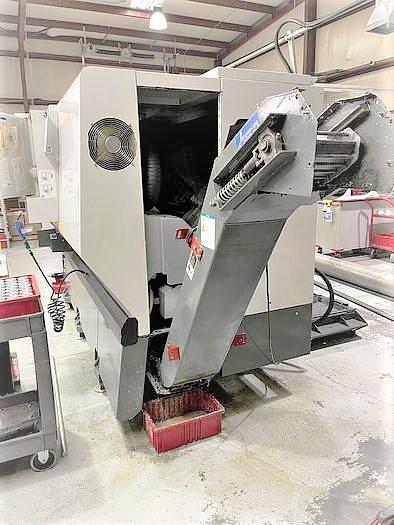

Belt Style Chip Conveyor

Spindle Orientation

Rigid Tapping

Auto Jet Air Blast

High Intensity Lighting

Coolant Tank with Pump

Internal High Voltage Transformer 380V - 480V

USB Port Interface

RS 232 Port Interface

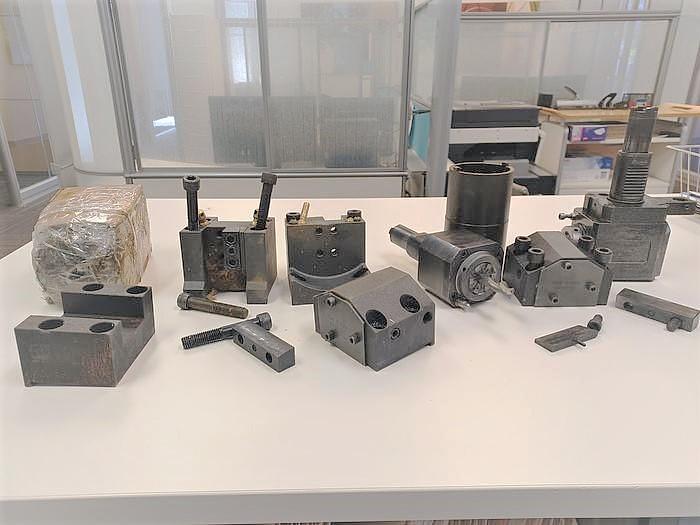

Includes (2) Live Tool Holders 1 Axial and 1 Radial

All Available Static Tool Holders

Miscellaneous Tooling



Specifications

ManufacturerHaas
ModelDS-30Y
Year2013
ConditionUsed
Stock Number118497
Chuck Sizes Main / Subspindle10" Hydraulic / 8.3" Hydraulic
Maximum Swing over Bed31.75"
Maximum Swing Over Cross Slide20.75
Maximum Cutting Diameter16"
Maximum Cutting Length23"
X-Axis Travel12.5"
Y-Axis Travel+/- 2"
Z-Axis Travel23"
C-Axis Rotation.001 Degree
Spindle Nose / Bore / Bar CapacityA2-6" / 3.5" / 3"
Spindle Speeds3,400 RPM
Spindle Motor30 HP
Subspindle Nose / Bore / Bar CapcityA2-5" / 2.44" / 2"
Subspindle Speed3,400 RPM
Subspindle Motor20 HP
Rotary Tool Speed / Rotary Motor3,000 RPM / 5 HP
Turret Type12 Position VDI/BOT Ty[e
Rapid Traverse Rates X, Y / Z472 IPM / 1,200 IPM
Machine Dimensions LxWxHNA
Machine Weight14,600 lbs
