2008 Fadal VMC4020FX
No longer available
2008 Fadal VMC4020FX
Location:Illinois
Description
24 Station Side Mounted Tool Changer
4th Axis Drive

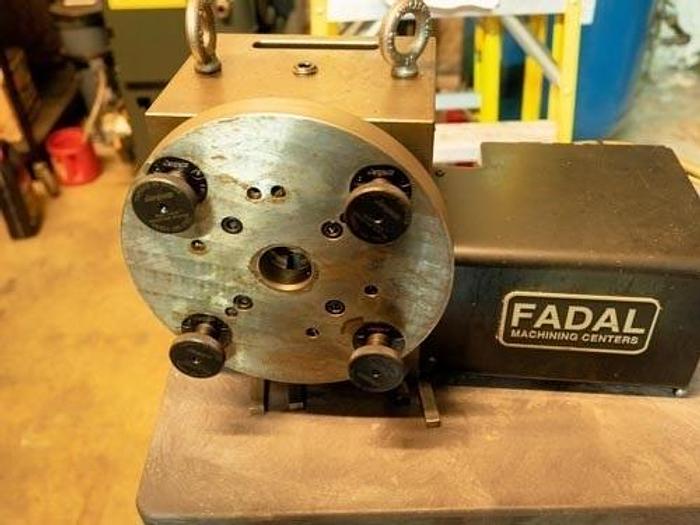

4th Axis Rotary Table VH165
10,000 RPM Spindle
Chip Conveyor
Coolant Thru the Spindle

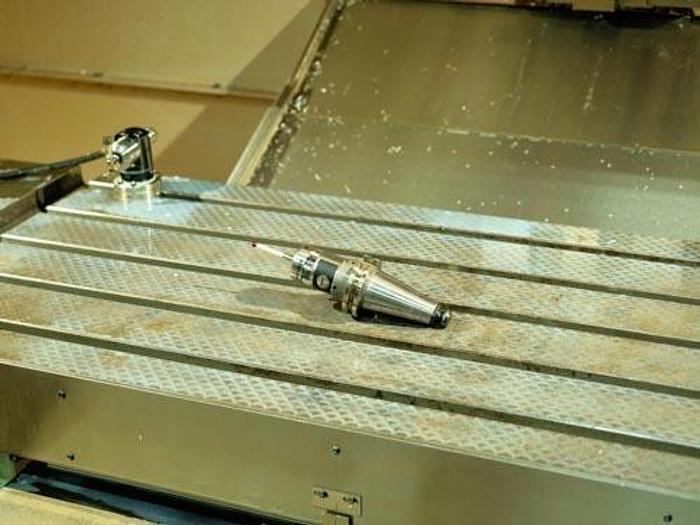

Renishaw Probing System
Extended Z-Axis Travel
Advance Control Package
Data Server
Boxed Ways
High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface
Multi Processor Control
Coolant System with Tank & Pump
Wired 230V-440V Electrics
Specifications
| Manufacturer | Fadal |
| Model | VMC4020FX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118496 |

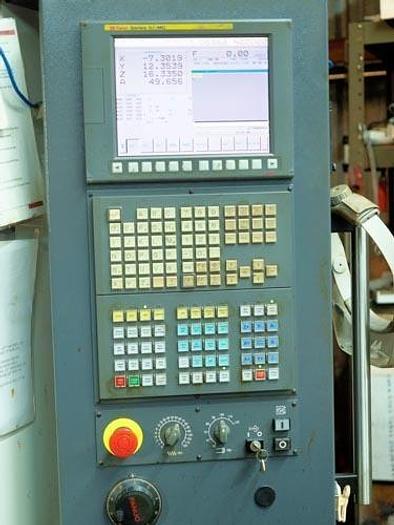

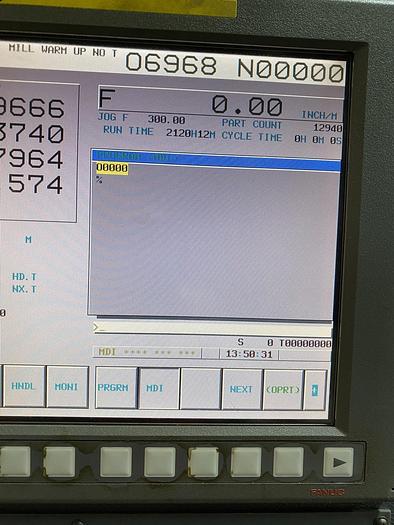

| Control | Fanuc OI-MC |
| Table Size | 48" x 20" |
| Maximum Table Load | 3,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 24" |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 28" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP Hi Torque |
| Tool Magazine Capacity | 24 Station Side Mounted Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 1,000 IPM |
| Machine Dimensions LxWxH | 116" x 87" x 104" |
| Machine Weight | 11,550 lbs. |
