2007 Milltronics ML40/160
No longer available
2007 Milltronics ML40/160
Location:Wisconsin
Description
Graphics
Conversational
G-Code
Mist Collector
Steady Rest

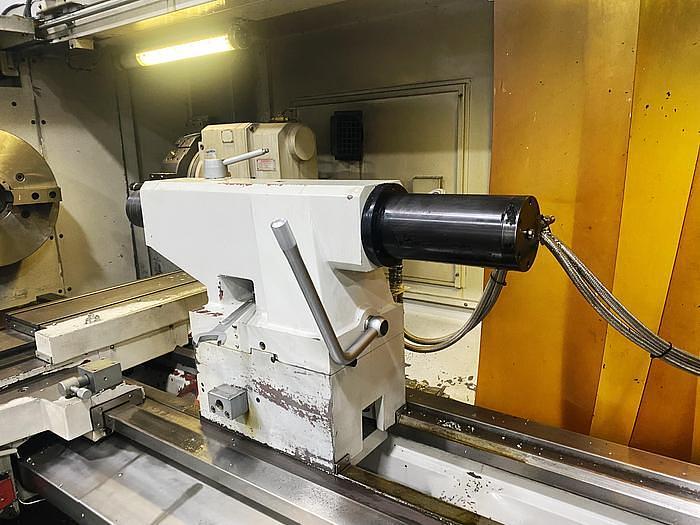

Tailstock

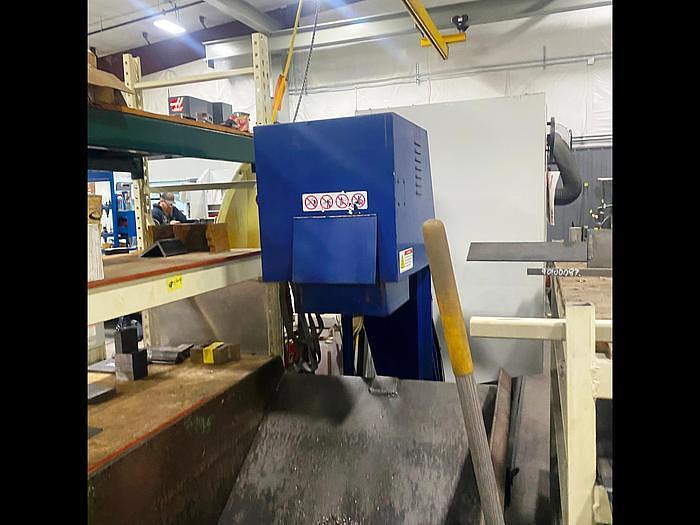

Chip Conveyor
(3) Boring Bars
All Available Manuals
Specifications
| Manufacturer | Milltronics |
| Model | ML40/160 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118494 |

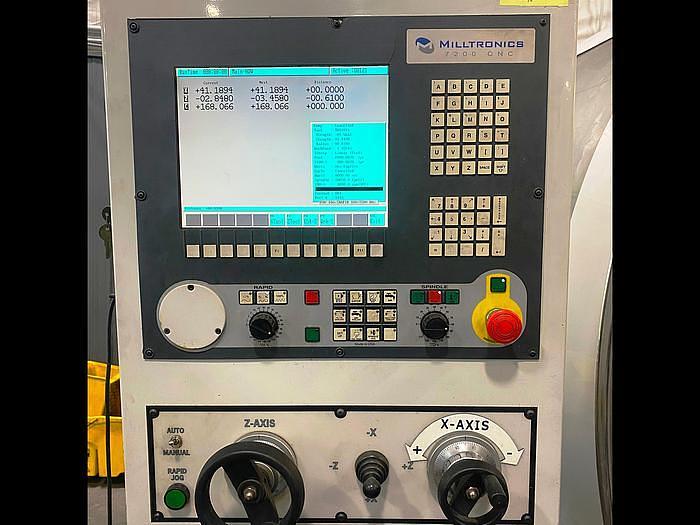

| Machine Control | Centrion 7200 Conversational |

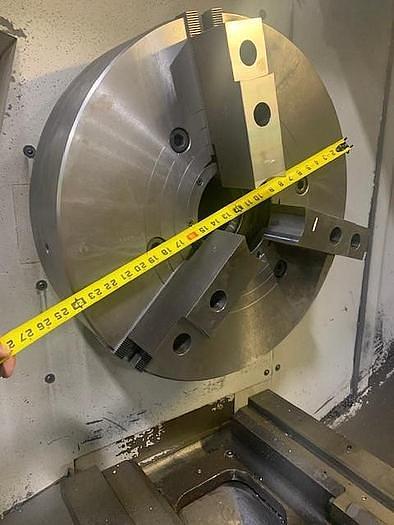

| Chuck Size | 24" 3-Jaw |
| X-Axis Travel | 21" |
| Z-Axis Travel | 160" |
| Maximum Swing | 40" |
| Swing in Gap | 50" |
| Maximum Swing Over Cross Slide | 26" |
| Distance Between Centers | 160" |
| Spindle Nose / Bore / Bar Capacity | A2-11 / 6" / 6" |
| Spindle Speed | 1,400 rpm |
| Spindle Motor | 25/35 hp |

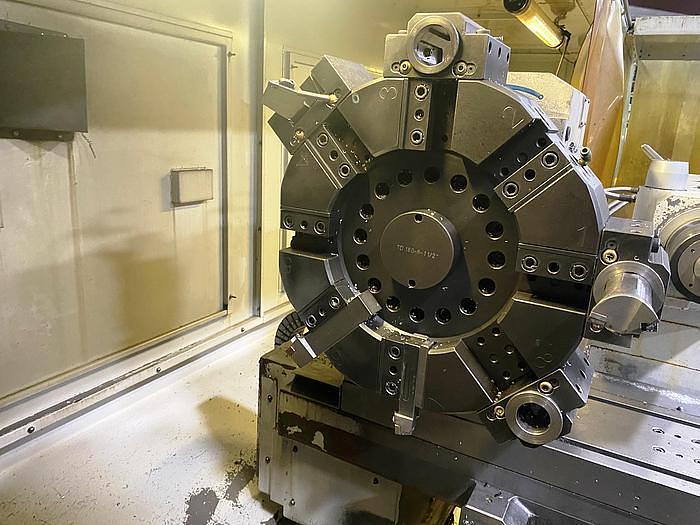

| Number of Turret Positions | 8 |
| Rapid Traverse Rates | 500 ipm |
| Tailstock Quill Travel | 9" |
| Machine Dimensions LxWxH | 272"x110"x90" |
| Machine Weight | 28,900 lbs |
