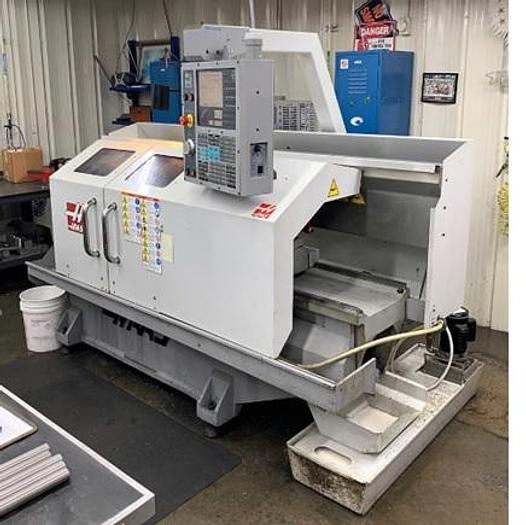

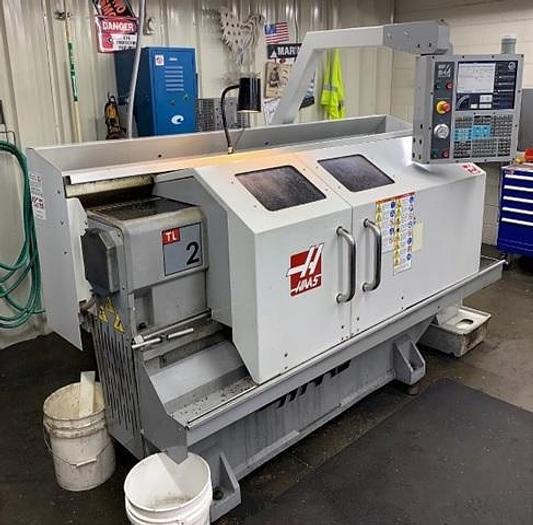

2008 Haas TL-2
No longer available
2008 Haas TL-2
$27,500 (USD)
Georgia
Description

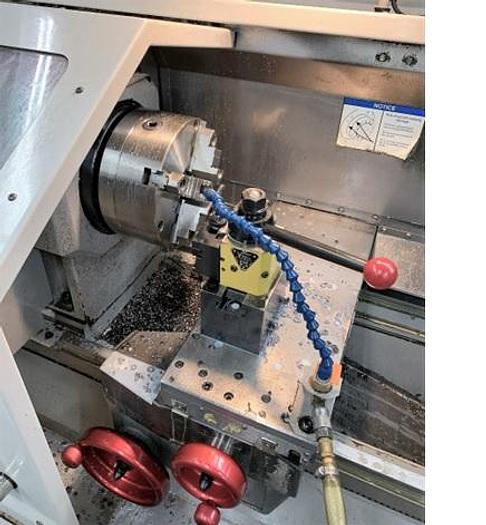

10" 4 Jaw Manual Scroll Chuck

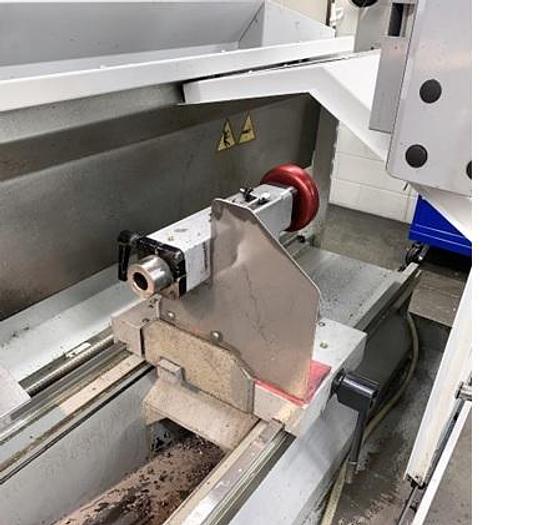

Tailstock
Upgraded A2-6" Spindle Nose with 3" Bar Capacity
Steady Rest
Quick Change Tool Post

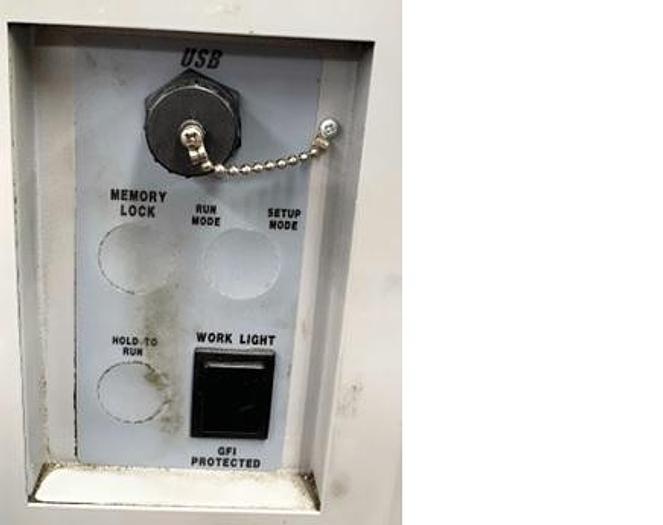

Manual Hand Wheels Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors USB Port Interface
RS 232 Port Interface
Rigid Tapping
Early Power Failure Detection Module Haas Intuitive Turning System Vector Drive Spindle Machine Can Run Either 240V Single Phase or 208V Three Phase Power

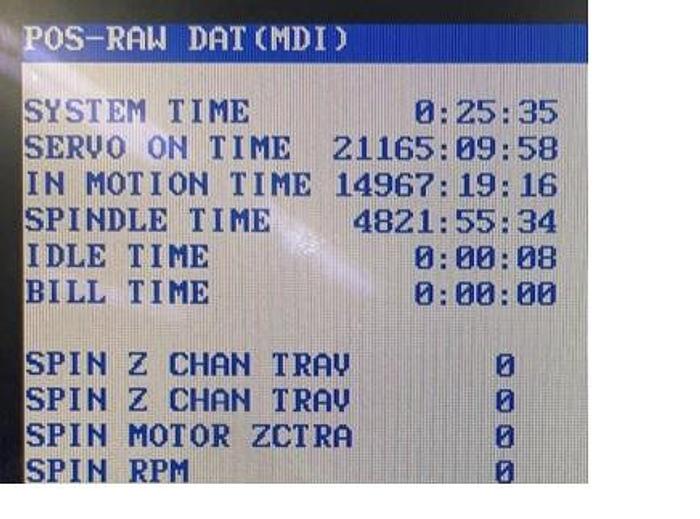

**Just 4,821 Spindle Run Hours**
Specifications
Manufacturer | Haas |
Model | TL-2 |
Year | 2008 |
Condition | Used |
Stock Number | 118487 |

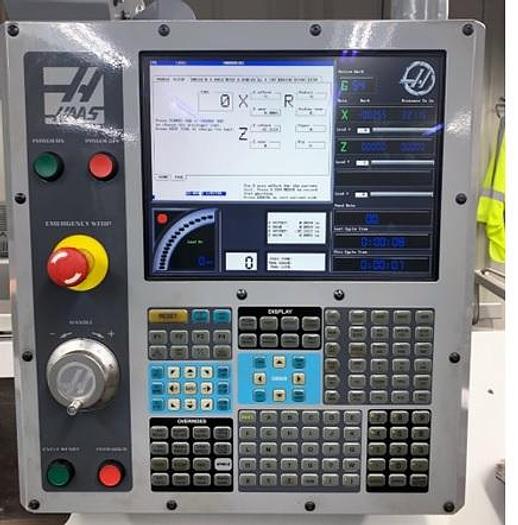

Control | Haas CNC Control |
Chuck Size | 10" 4 Jaw Chuck |
Maximum Swing over Bed | 20" |
Maximum Swing Over Cross Slide | 11" |
Maximum Cutting Diameter | 16" |
Maximum Machining Length | 48" |
X-axis travel | 8" |
Z-Axis Travel | 48" |
Spindle Nose / Spindle Bore | A2-6" / 3.0" |
Spindle Speeds | 2,000 RPM |
Spindle Motor | 12 HP |
Number of Turret Positions | Tool Post |
Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
Machine Dimensions | 103" x 71" x 83" |
Machine Weight | 5,930 lbs. |
