2004 Haas VF1
Sold
2004 Haas VF1
$26,500 (USD)
Location:Ohio
Description
4th Axis Drive and Wiring
Rigid Tapping
Auger Style Chip Conveyor
Programmable Coolant Nozzle
16 MB Program Memory
Visual Quick Code Programming
Spindle Orientation
Coordinate Rotation & Scaling
Remote Jog Handle
3.5" Floppy Disk Interface
RS 232 Port Interface Complete Coolant System with Tank & Pump All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF1 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118476 |

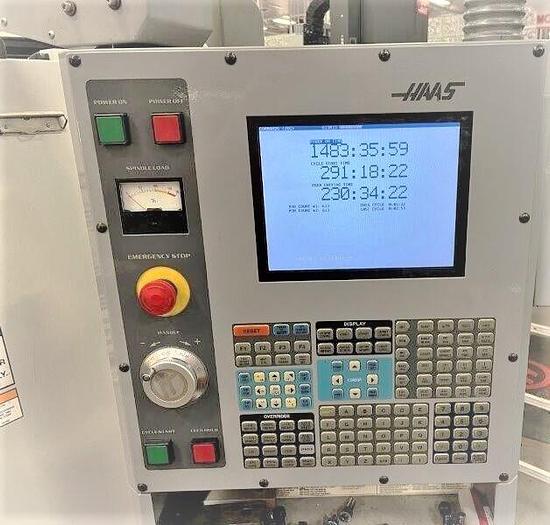

| Control | Haas CNC Control |

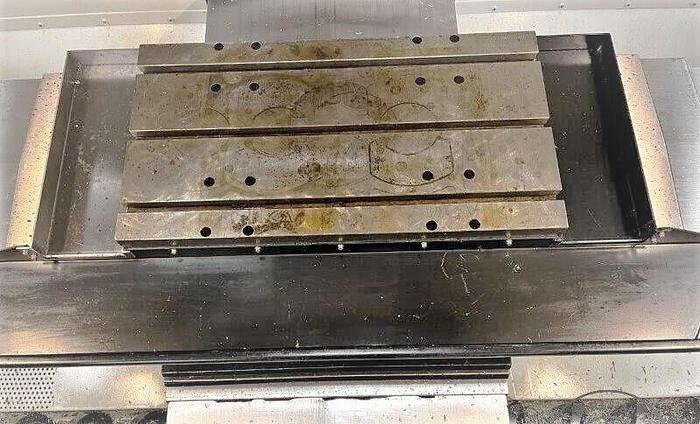

| Table Size | 26" x 14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 7,500 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Station Umbrella ATC |
| Rapid Traverse Rates | 1,000 IPM |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x96"x104" |
| Machine Weight | 7,500 lbs |
