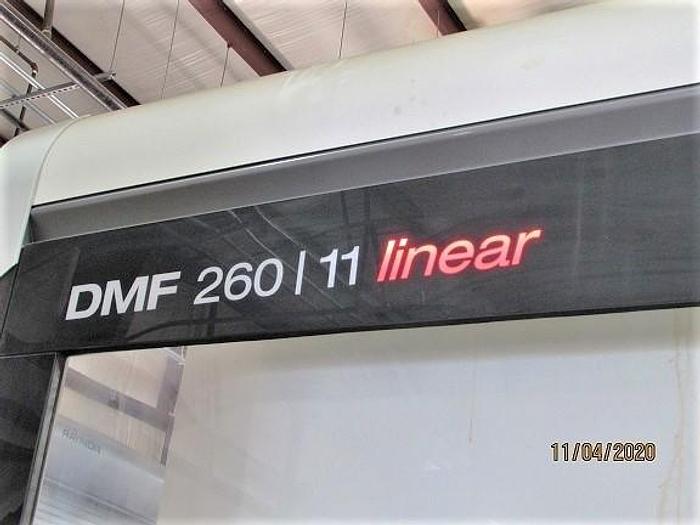

2015 DMG-Mori DMF 260 | 11 Linear
No longer available
2015 DMG-Mori DMF 260 | 11 Linear
Location:Texas
Description
Universal Style Pendulum A Axis Head

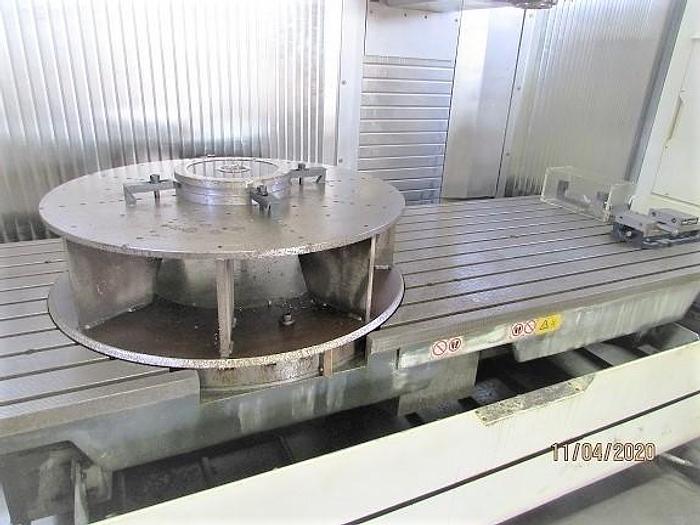

41.3" Built In Rotary Table
120 Station Tool Changer
Chip Conveyor
Coolant Through the Spindle
Tool Presetter
Manual Pulse Generator
Rigid Tapping
Coolant System with Tank & Pump USB Port Interface RS-232 Port Interface

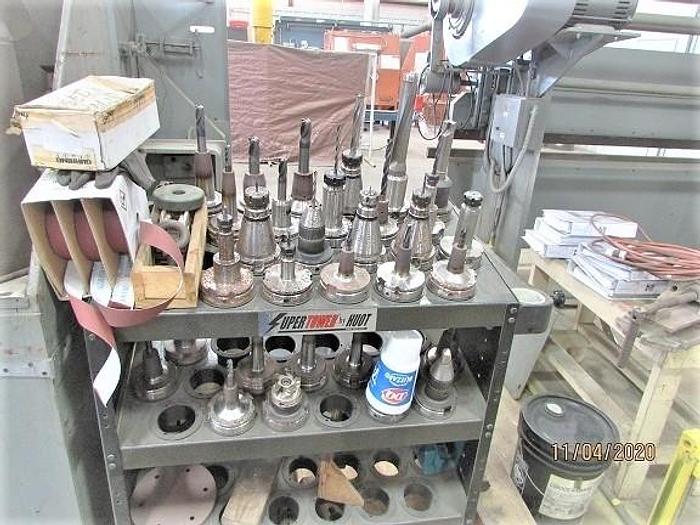

Miscellaneous HSK Tooling
230V / 3 PH Electrics
All Available Manuals
**ONLY 1,260 Run Time Hours**

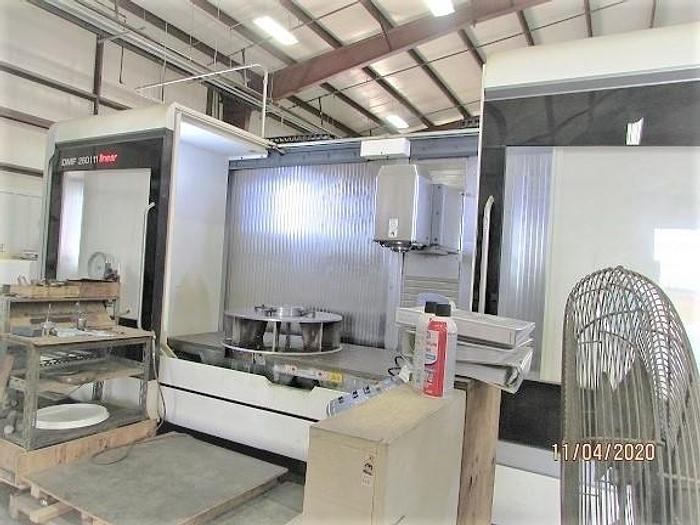

**Partition wall is removable for pendulum machining in 2 working spaces**
Specifications
| Manufacturer | DMG-Mori |
| Model | DMF 260 | 11 Linear |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118469 |

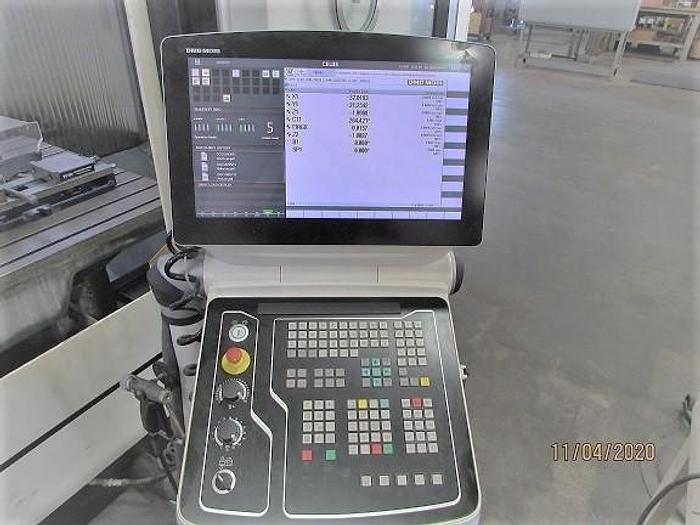

| Control | DMG Mori Erogoline Control (Siemens) |
| Table Size | 126" x 43.3" |
| Maximum Table Load | 8,818 lbs. |
| X-Axis Travel | 102.36" |
| Y-Axis Travel | 43.3" |
| Z-Axis Travel | 35.43" |
| A-Axis Movement - Spindle Tilt | +/- 100 Degree Tilt |
| B-Axis Table Rotation | .001 Degree Full 4th Axis |
| Rotary Table Diameter | 41.3" with 2,645 lbs. maximum weight |
| Spindle Taper | HSK100A |
| Spindle Speeds | 10,000 RPM |
| Spindle Motor | 69.7 HP |
| Number of Tool Positions | 120 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 16.1" / 33 lbs. |
| Rapid Traverse Rates X, Y / Z | 1575 IPM |
| Machine Dimensions | 320" Length x -Width x 245" Height |
| Machine Weight | 64,000 lbs. |
