2011 Okuma Multus B400W
No longer available
2011 Okuma Multus B400W
Location:California
Description
Tool Presetter (Relocated to accommodate an 18" chuck)

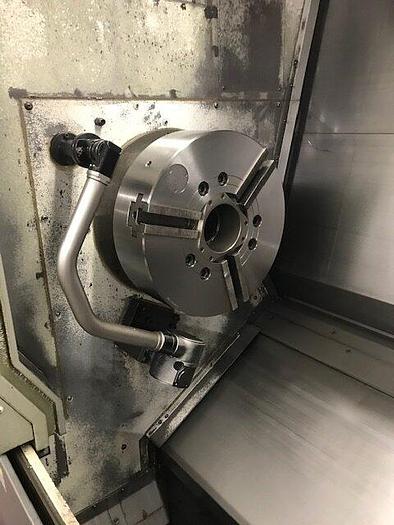

18" Kitagawa 3-Jaw Chuck on Both Spindles
4" Bar Capacity on Both Spindles
A2-11 Option on Both Spindle Noses
Chip Conveyor

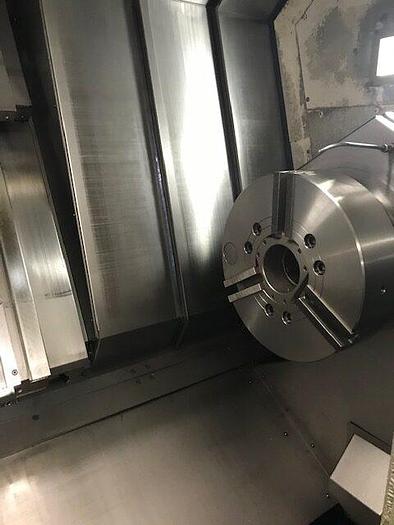

Subspindle w/12" Chuck

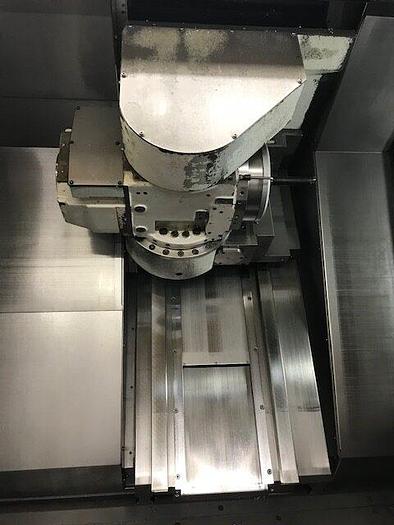

B-Axis Contouring on Upper Tool Spindle
15" Color TFT Screen
Tool Life Management
Barfeed Interface

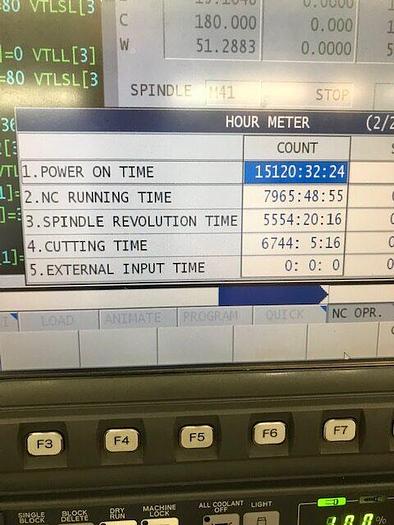

Low Hours
All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | Multus B400W |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118467 |
| Machine Control | Okuma OSP P200L |
| Chuck Size | 18" 3-Jaw Hydraulic |
| Maximum Swing over Bed | 27.95" |
| Maximum Swing Over Cross Slide | 27.95" |
| Maximum Distance Between Centers | 59.06" |
| Maximum Cutting Diameter | 27.9" |
| X-Axis Travel | 27.17" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 60.83" |
| C-Axis Rotation | 0.001 Degree |
| B-Axis Tilt Movement | 225 Degrees |
| Spindle Speed | 2,800 rpm |
| Spindle Motor | 40 HP |
| Subspindle Speed | 38-3,800 rpm |
| Subspindle Motor | 22/15 hp |
| Subspindle Travel | 61.02" |
| Spindle Nose / Bore / Bar Capacity | A2-1 / 4.5" / 4.1" Both Spindles |
| Milling Spindle Speed | 50-6,000 HP |
| Milling Spindle Motor | 19 / 13 HP |
| Spindle Taper | Capto C6 |

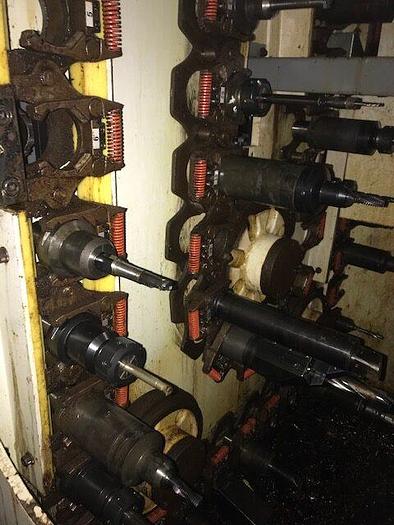

| Tool Magazine Capacity | 80 ATC |
| Machine Dimensions LxWxH | 227"x107"x118" |
| Machine Weight | 34,000 lbs |
