2013 Kingston CL-38Ax2000
No longer available

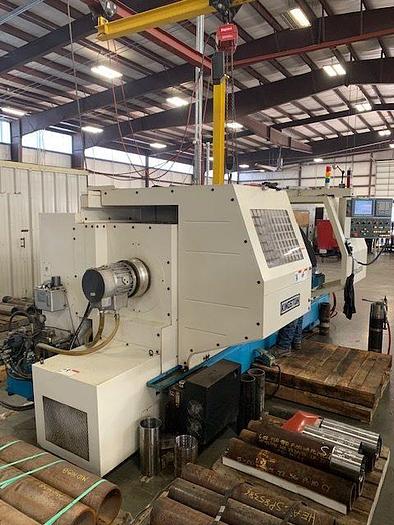

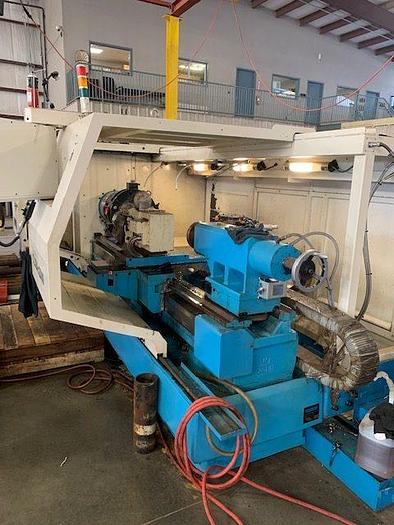

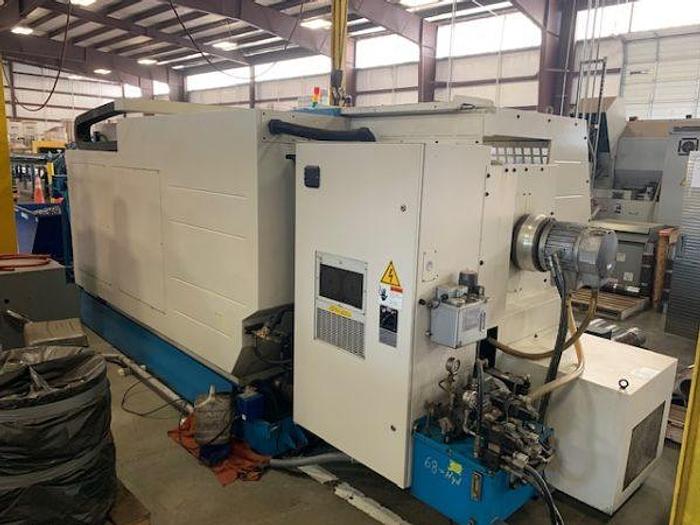

2013 Kingston CL-38Ax2000
Location:Illinois
Description
Chip Conveyor
Tailstock
Remote Jog Handle
Coolant System
All Available Manuals
Specifications
| Manufacturer | Kingston |
| Model | CL-38Ax2000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118464 |

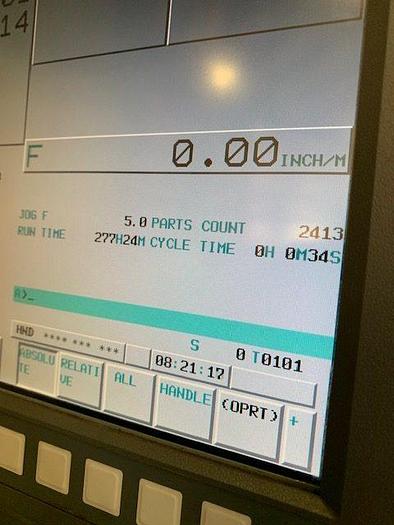

| Machine Control | Fanuc 0i-TB |
| Maximum Swing | 26" |
| Maximum Swing Over Cross Slide | 14.6" |
| Maximum Cutting Diameter | 23.6" |
| X-axis travel | 21.6" |
| Z-Axis Travel | 83.1" |
| Spindle Speeds | 3-2,000 rpm |
| Spindle Motor | 30 hp |
| Spindle Nose | As-11 |
| Spindle Bore | 4.7" |
| Number of Turrets | 2 |
| Number of Turret Positions | 8 Vertical Front / 6 Horizontal Rear |
| Rapid Traverse Rates | 394 ipm |
| Tailstock Quill Diameter / Quill Travel / Taper | 5.9" / 8.6" / #5 MT |
| Machine Dimensions LxWxH | 273"x91"x79" |
| Machine Weight | 18,480 lbs |
