2001 Haas VF1B
No longer available
2001 Haas VF1B
Location:California
Description
2 Speed Geared Transmission
10,000 RPM Spindle
24 Station Side Mounted Tool Changer
RS 232 Port Interface Complete Coolant System with Tank & Pump Rigid Tapping All Available Manuals
**Used to cut primarily aluminum and plastic**
Specifications
| Manufacturer | Haas |
| Model | VF1B |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118464 |

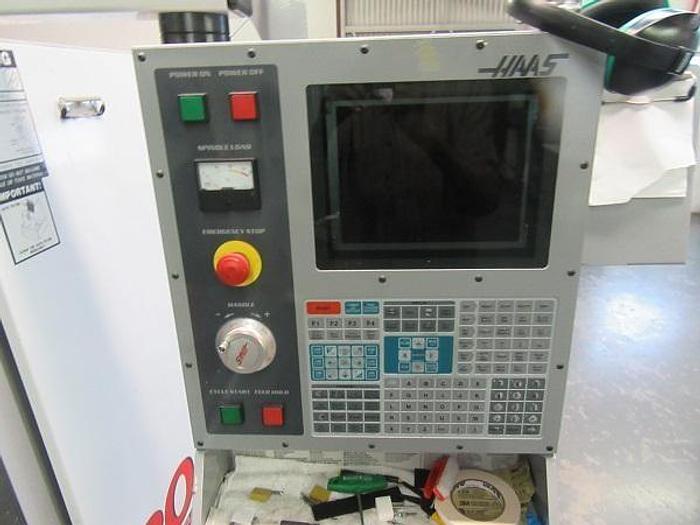

| Control | Haas CNC Control |
| Table Size | 26" x 14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 24 Station Side Mounted Tool Changer |
| Rapid Traverse Rates | 1,000 IPM |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x96"x104" |
| Machine Weight | 7,500 lbs |
