2004 Haas VF3B APC
No longer available
2004 Haas VF3B APC
$46,950 (USD)
Location:Washington
Description

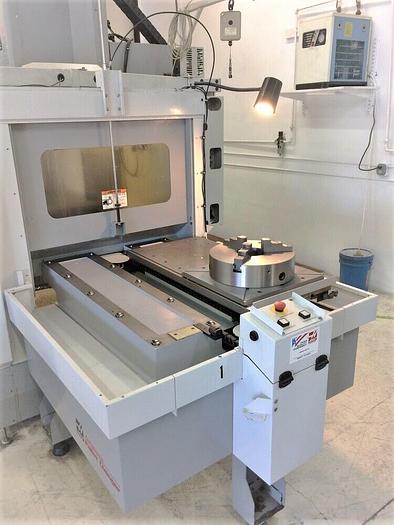

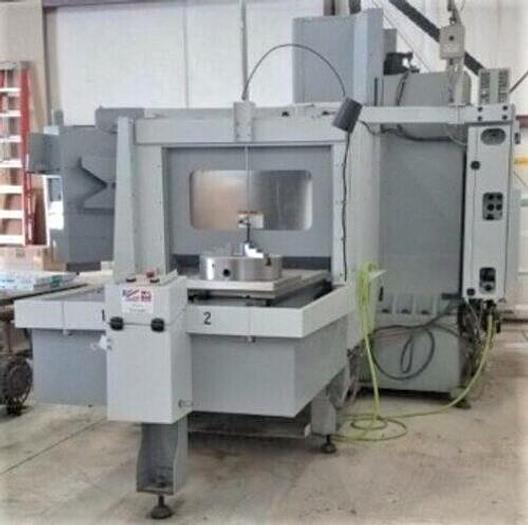

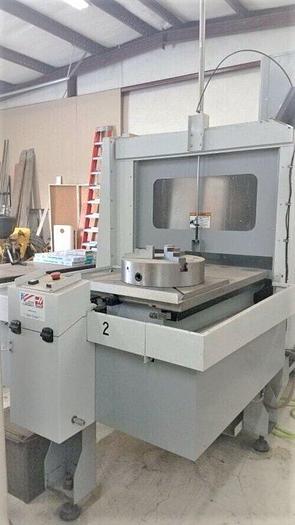

2 Pallet Changer System
2 Speed Gearbox
Haas Wireless Probing System
4th Axis Drive & Wiring

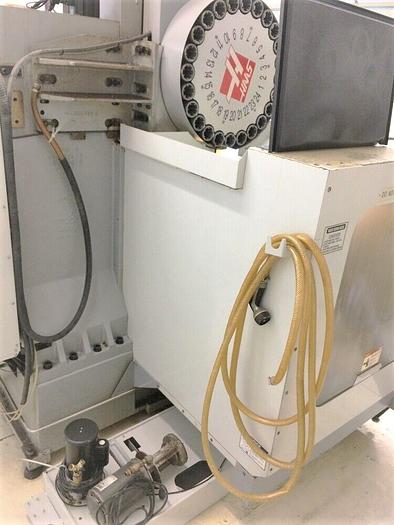

24 Station Side Mounted Tool Changer

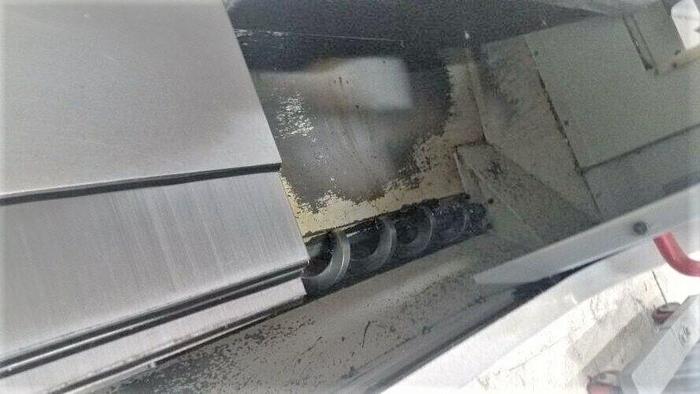

Auger Style Chip Conveyor Programmable Coolant Nozzle 1 MB Program Memory Visual Quick Code Programming Spindle Orientation Coordinate Rotation & Scaling User Definable Macros Vector Drive Spindle
3.5" Floppy Disk Interface RS 232 Port Interface Coolant System with Tank and (2) Pumps All Available Manuals Wired 208/230V Electrics
**Feed Cutting Time 1,375**
Specifications
| Manufacturer | Haas |
| Model | VF3B APC |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118460 |
| Control | Haas CNC Control |
| Table Size | 48" x 18" x 2 pallets |
| Maximum Weight on Table | 3,500 lbs. |
| Distance Spindle Nose to Table Top | 4" - 29" |
| X-axis travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 25" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 7,500 RPM 2 Speed Gearbox |
| Spindle Motor | 20 HP Brushless |
| Number of Tool Positions | 24 Station Side Mounted ATC |
| Rapid Traverse Rates | 1,000 IPM |
| Machine Dimensions | 118" x 98" x 95" |
| Machine Weight | 12,500 lbs. |
