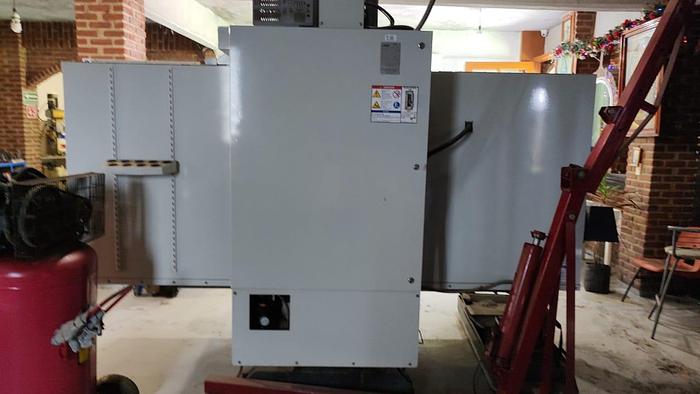

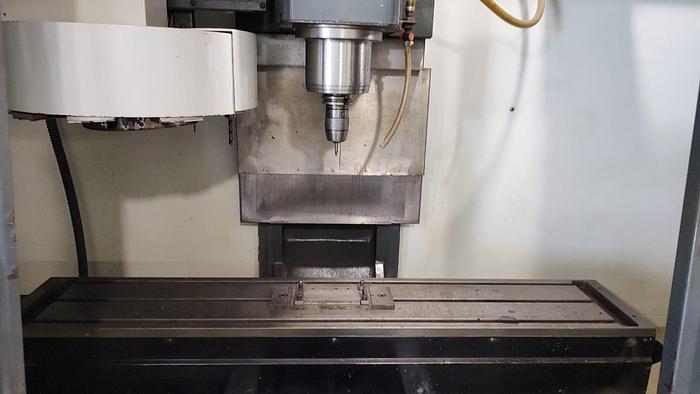

2012 Haas TM-2P
2012 Haas TM-2P
Contact us for price
Texas
orCall (863) 439-6066
Description
Full Enclosure Sheet Metal Covers
10 Station Tool Changer
Auger Style Chip Conveyor
Rigid Tapping
Vector Drive Spindle
Brushless Servos All Axis'
Direct Belt Drive
Coolant System with Tank
USB Port Interface
RS 232 Port Interface

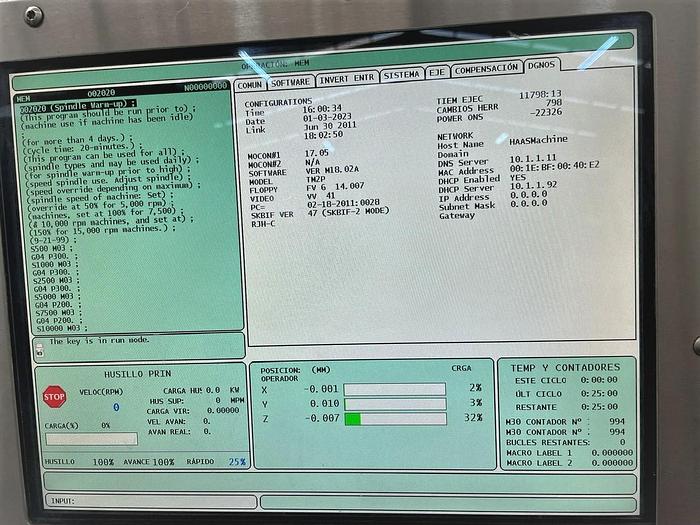

Power On Hours 11,798
Spindle Cut Hours Estimated at 3-4,000 hrs.
Specifications
| Manufacturer | Haas |
| Model | TM-2P |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118454 |

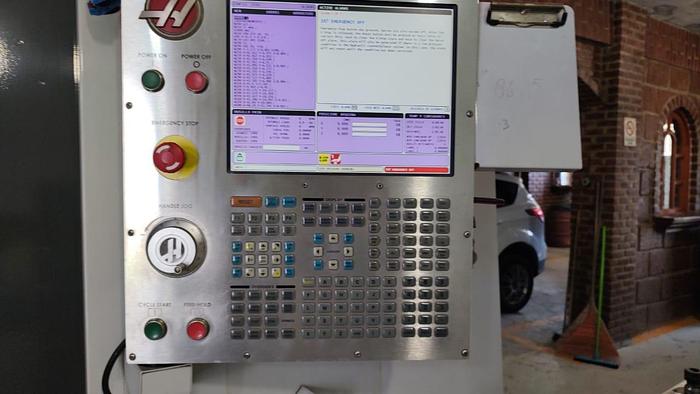

| Control | Haas CNC Control |
| Table Size | 57.75"x10.5" |
| Maximum Table Load | 350 lbs |
| X-Axis Travel | 40" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 16" |
| Distance Spindle Nose to Table Top | 4"-20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 0-6,000 rpm |
| Spindle Motor | 7.5 HP |
| Tool Magazine Capacity | 10 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.5"/NA/12 lbs |
| Tool Change Time Chip to Chip | 5.7 Seconds |
| Rapid Traverse Rates | 400 ipm |
| Machine Dimensions LxWxH | 130"x78"x99" |
| Machine Weight | 5,060 lbs |
