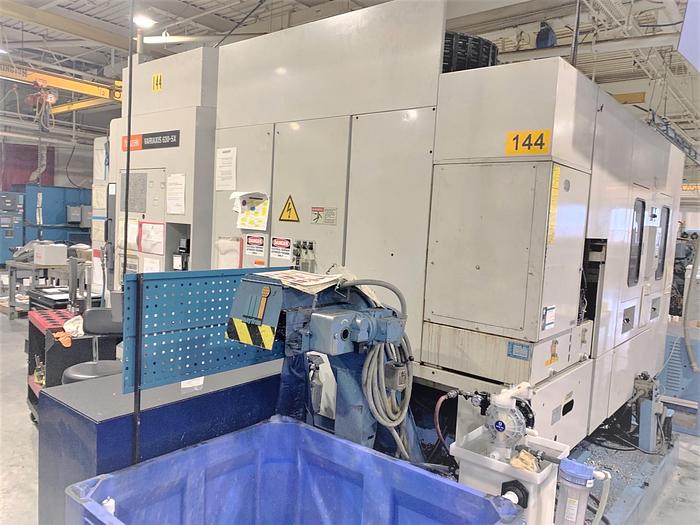

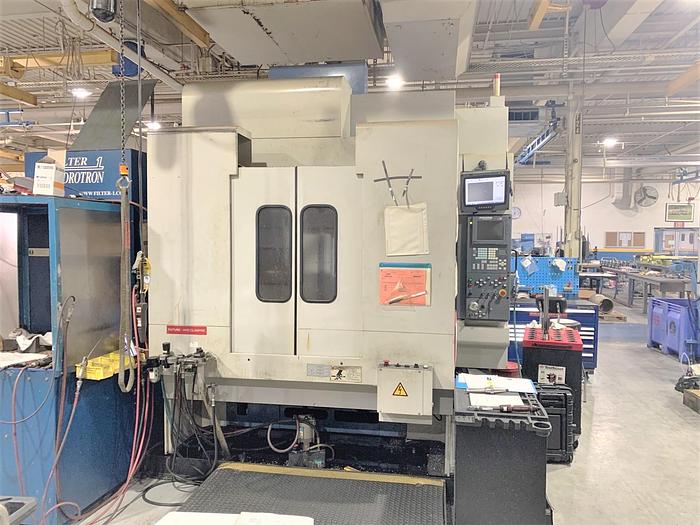

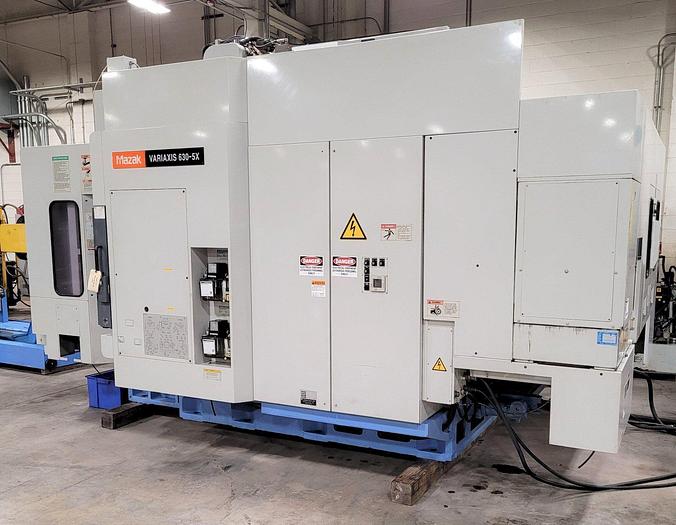

2003 Mazak Variaxis 630-5X 2-PC

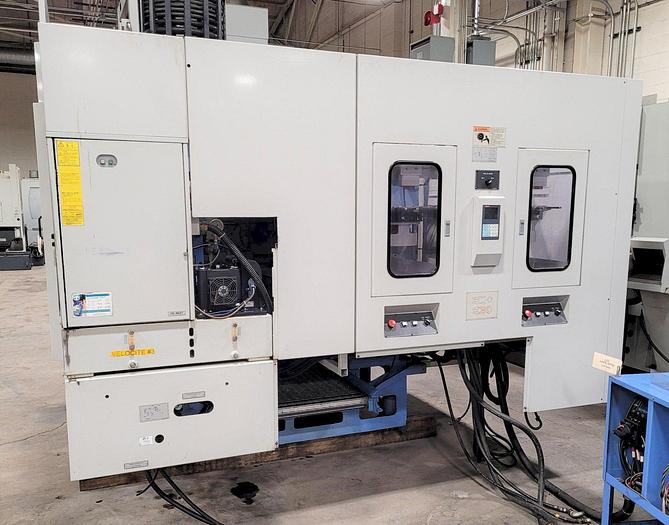

2 Pallet Changer System w/ (2) Drilled/Tapped Pallets

Full 4th Axis Rotary Table - 360,000 Degree

Trunnion A Axis Table

Renishaw Tool Probe System

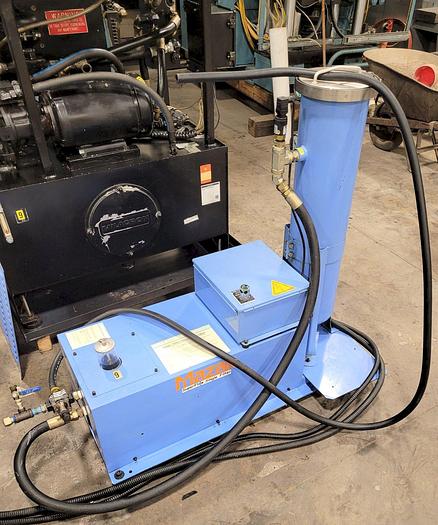

Mazak 1000 PSI High Pressure Super Flow Coolant Thru the Spindle

Chip Conveyor

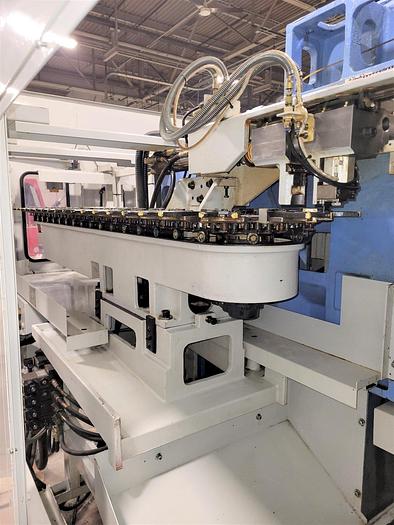

80 Station Tool Changer

Tool Breakage Detection

Tool Life Monitoring

Adaptive Feedrate Control

IC Memory Card Interface

RS-232C Port for DNC Interface

3.5" Floppy Disk Drive

PCMCIA Type II Interface -2 slots

All Available Manuals

Some Tooling

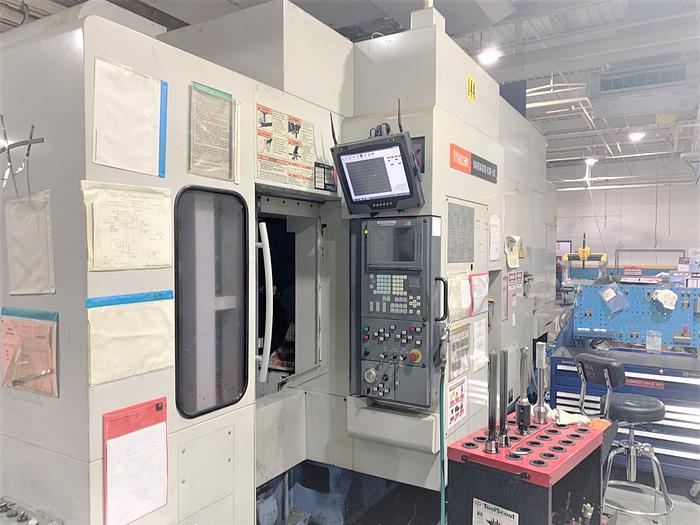

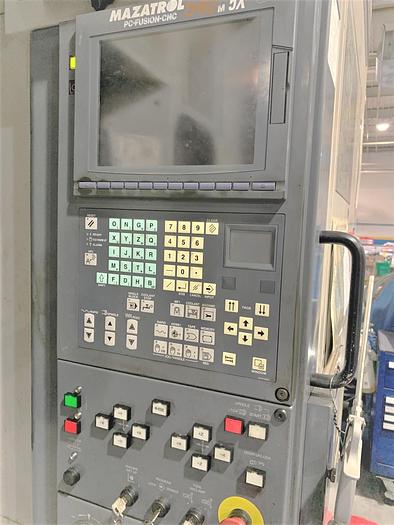

The 2003 Mazak Variaxis 630-5X 2-PC is a robust and versatile CNC Vertical Machining Center, perfect for complex multi-axis machining tasks. It features a Mazatrol Fusion 640M5X control system, ensuring precision and user-friendly operation. With a dual-pallet system, each measuring 19.69" x 19.69", it allows for efficient workflow and reduced downtime between operations. This machine offers significant travel capabilities with X, Y, and Z-Axis travels of 24.8", 30.12", and 20.08" respectively. The A-axis provides a tilt range from -120 degrees to +30 degrees, while the C-axis allows for 360,000 positions with a resolution of 0.001 degrees, enabling intricate machining from multiple angles. The spindle, equipped with a CAT #40 taper, reaches speeds up to 12,000 RPM and is powered by a potent 30 HP motor, ensuring high-performance cutting efficiency. Capable of handling a considerable table load of up to 1,102 lbs., the machine accommodates workpieces with a maximum diameter of 24.8" and height of 19.69". An 80-station tool changer with rapid tool-to-tool change times of 3.6 seconds and chip-to-chip times of 9 seconds enhances productivity. The machine's dimensions are 202.84" x 123.82" x 130.12", and it has a weight of 38,069 lbs., reflecting its robust build and capacity for heavy-duty industrial applications.
