2007 Haas SL-10T
No longer available
2007 Haas SL-10T
Location:Illinois
Description
Color LCD Monitor
Floppy Disk Drive
Rigid Tapping
Tool Presetter
Tailstock
Chip Auger
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | SL-10T |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118440 |

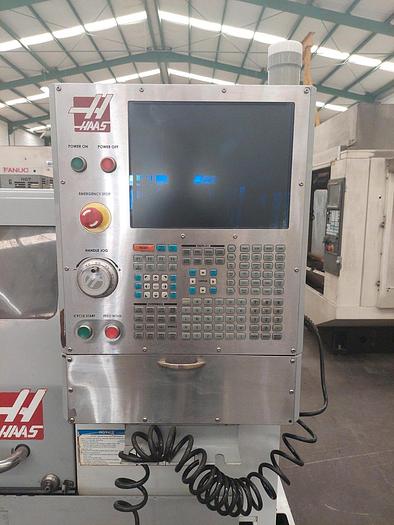

| Machine Control | Haas 32 Bit |

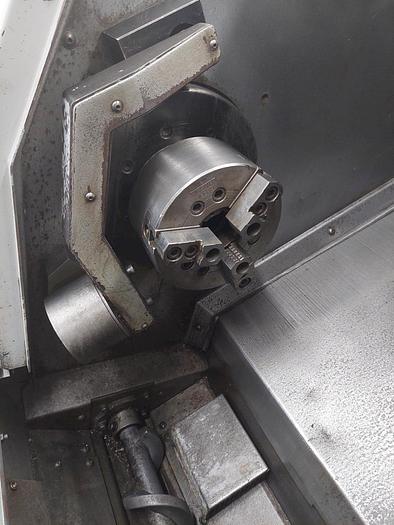

| Chuck Size | 6.5" /1.75" Thru hole |
| Maximum Swing | 16.25 |
| Maximum Swing Over Cross Slide | 8" |
| Maximum Machining Diameter | 11" |
| Distance Between Centers | 16.5" |
| X-axis travel | 6.25" |
| Z-Axis Travel | 14" |
| Spindle Speeds | 0-6,000 rpm |
| Spindle Nose / Spindle Bore | A2-5 / 2.31" |
| Spindle Motor | 15 hp |

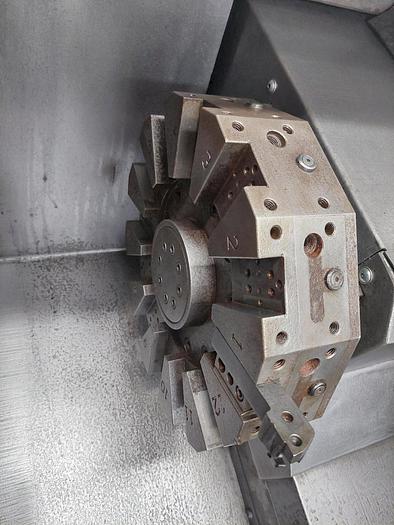

| Number of Turret Positions | 10 |
| Rapid Traverse Rates | 1,200 ipm |
| Tailstock Center / Diameter | #3 MT / NA |
| Tailstock Quill Travel | 4" |
| Machine Dimensions LxWxH | 96"x54"x70" |
| Machine Weight | 6,000 lbs |
