1985 Toshiba 118" CNC VTL retrofit in 1997
1985 Toshiba 118" CNC VTL retrofit in 1997
$79,500 (USD)
California
orCall (863) 439-6066
Description
59" 4 Jaw Chuck Adjustable Cross Rail Chip Conveyor 12 Position Tool Changer Remote Jog Handle Boxed Way Design Chip/Coolant Splash Guarding RS 232 Port Interface Steel Way Covers Coolant System with Pan & Pump All Available Manuals
Specifications
| Manufacturer | Toshiba |
| Model | 118" CNC VTL retrofit in 1997 |
| Year | 1985 |
| Condition | Used |
| Stock Number | 118437 |

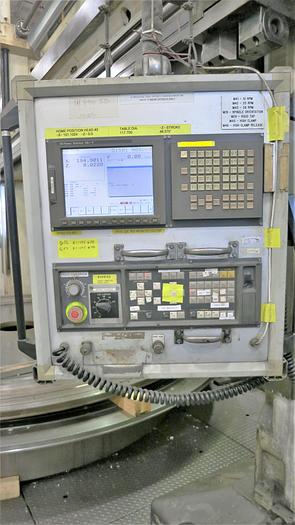

| Control | Fanuc 16-iT |

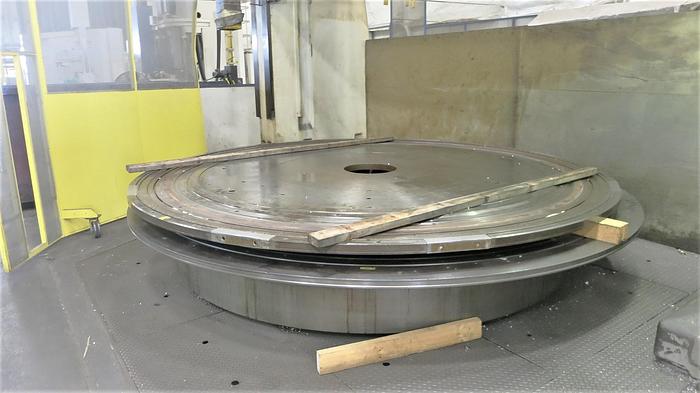

| Table Diameter | 117.7" |
| Maximum Weight on Table | 100,000 lbs. |
| Maximum Swing | 141.7" |
| Cross Rail Travel | 79.9" |
| Vertical RAM Stroke - Right | 62.9" |
| Vertical RAM Stroke - Left | 49.2" |
| Number of Heads on Cross Rail | 2 Heads |
| Maximum Distance Under Rail | 126.7" |
| Maximum Distance Under RAM | 119.2" |
| Table Speeds | .32 - 63 RPM |
| Machine Weight | 125,222 lbs. |
