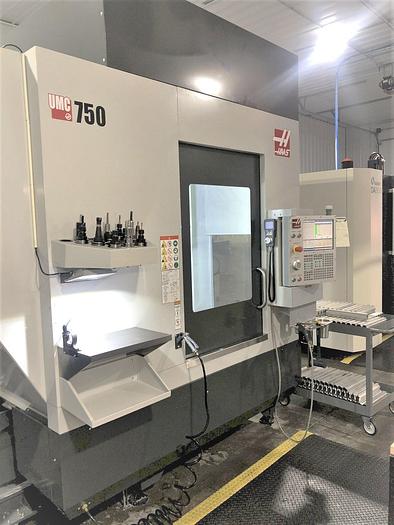

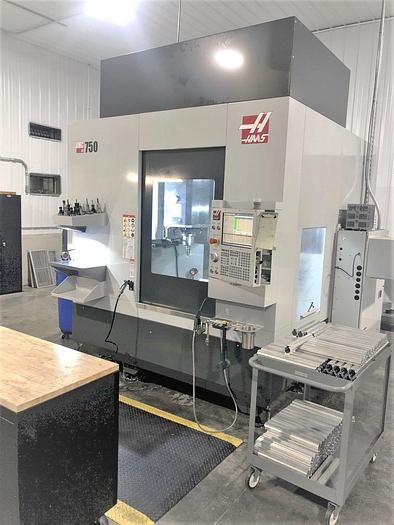

2020 Haas UMC-750
2020 Haas UMC-750
$189,500 (USD)
Iowa
Description

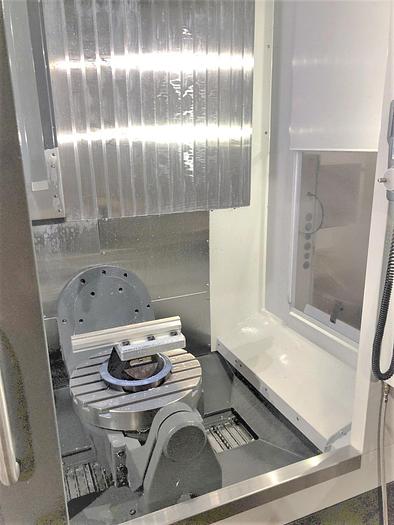

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 1,000 PSI

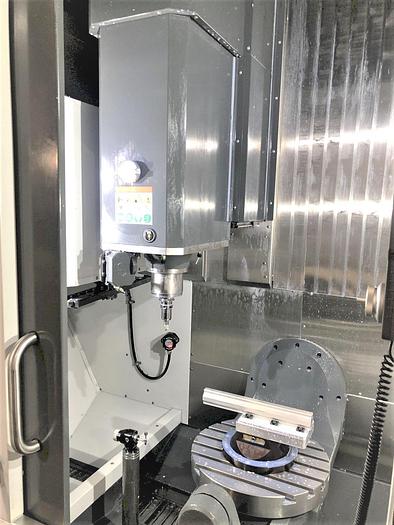

15,000 RPM Spindle

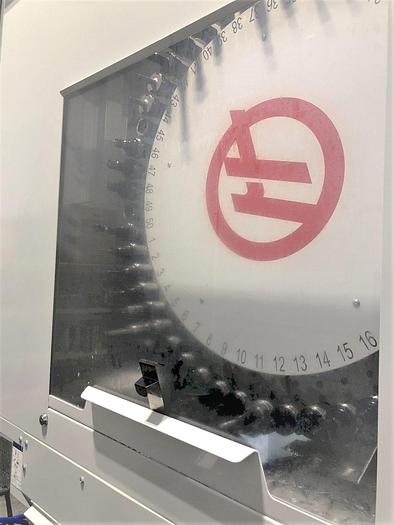

50 Station Side Mounted Tool Changer
Renishaw Probing with Tool Presetter
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
High Pressure Flood Coolant
Through the Tool Air Blast
High Speed Machining
Programmable Coolant Nozzle

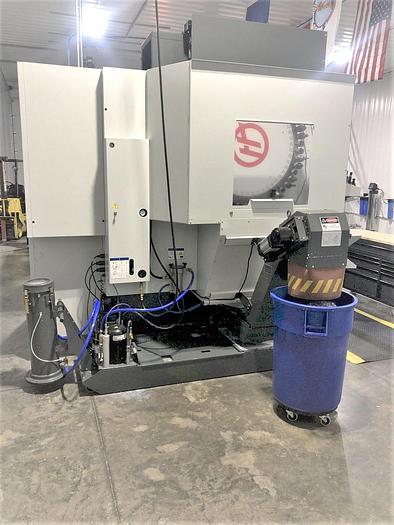

Chip Conveyor - Belt Style
Auxiliary Coolant Filter System

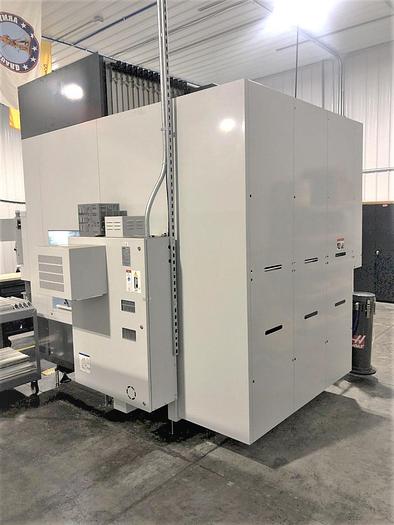

CNC Control Cabinet Cooler
Rigid Tapping
Rotary Scales
Remote Jog Handle with Touch Screen Display
Dynamic Work Offsets and Tool Center Point Control
Early Power Failure Detection Module
Second Home Position
1 GB Programming Memory
Ethernet Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Machine Anchoring Kit
Coolant Tray Filter Kit
Wired 220V Electrics
**Manufactured New in October of 2020**
**Approximately 300 Spindle Run Hours**
Specifications
| Manufacturer | Haas |
| Model | UMC-750 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118431 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
