2020 Haas UMC-1000SS
No longer available
2020 Haas UMC-1000SS
$199,950 (USD)
California
Description
Trunnion Style 5th Axis Table
Coolant Through the Spindle

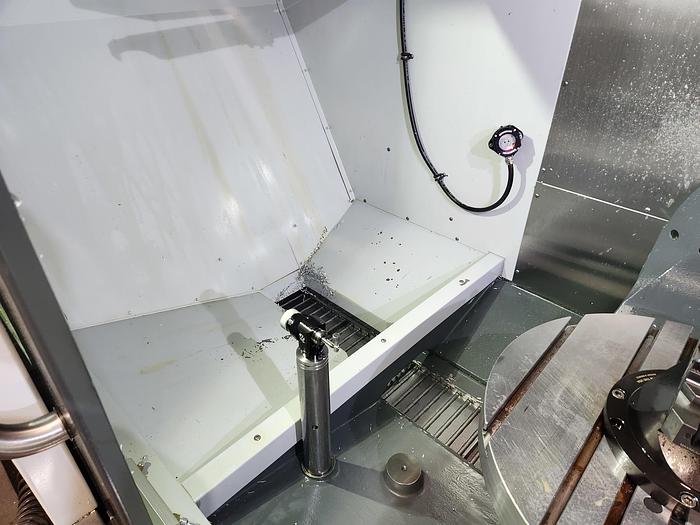

Renishaw Probing
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System

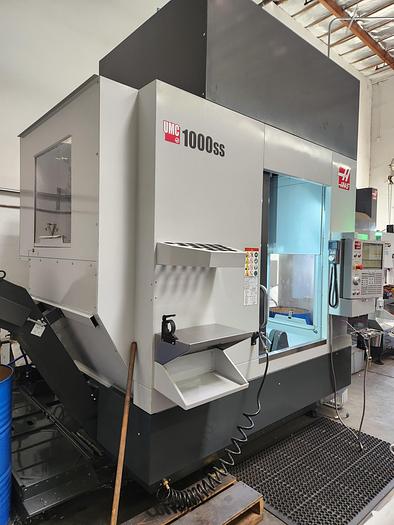

Chip Conveyor
Programmable Coolant Nozzle

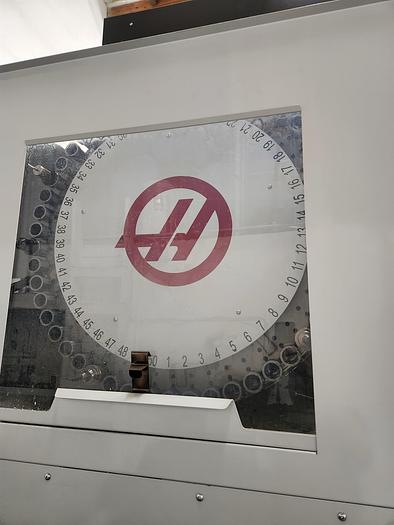

50 Station Tool Changer
High Speed Machining
Rigid Tapping
CNC Control Cabinet Cooler
Dynamic Work Offsets
Remote Jog Handle
RS 232 Port Interface
Coolant System with Tank & Pump
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals
Wired 220V 3 Phase Power

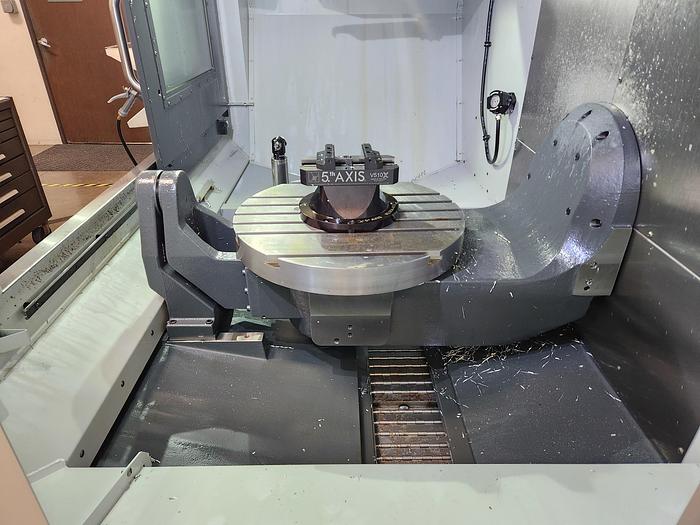

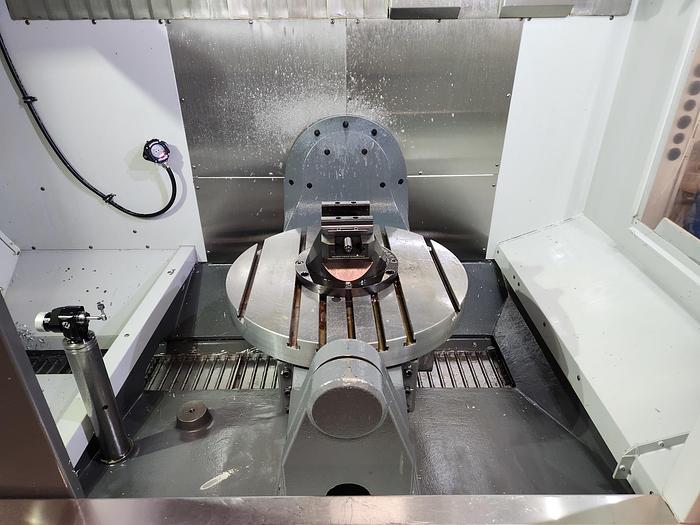

*Includes 5th Axis Vise Seen in Pictures
**ONLY 2,947 Feed Cutting Hours**
** Price New as Equipped at Nearly $275,000**
Specifications
| Manufacturer | Haas |
| Model | UMC-1000SS |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118427 |
| Table size | 24.8" Diameter |
| Table load capacity | 1000 lbs |
| X axis travel | 40" |
| Y axis travel | 25" |
| Z axis travel | 25" |
| B axis rotate of trunnion | -35 Degrees to 120 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 29" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 900 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 168" x 94" x 116" |
| Machine weight | 19,100 lbs |
