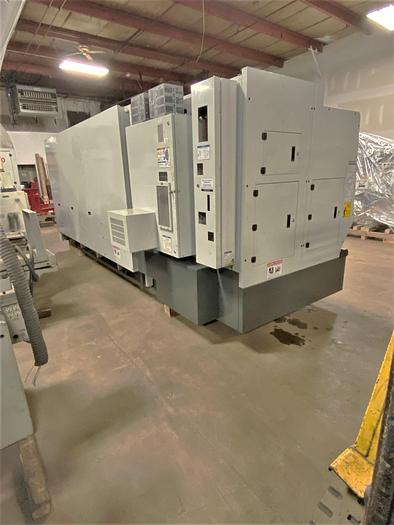

2015 Haas ST-45L
No longer available
2015 Haas ST-45L
Illinois
Description

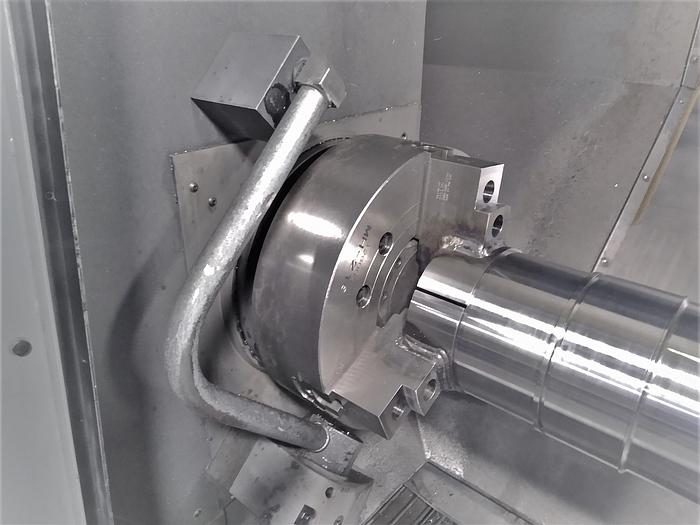

18" Samchully MH-218 3 Jaw Hydraulic Chuck
Hydraulic AX61 Steady Rest

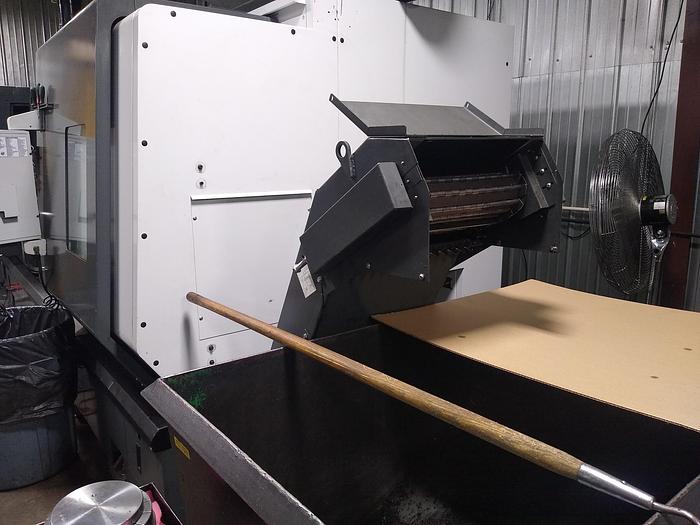

Belt Style Chip Conveyor
Tool Eye

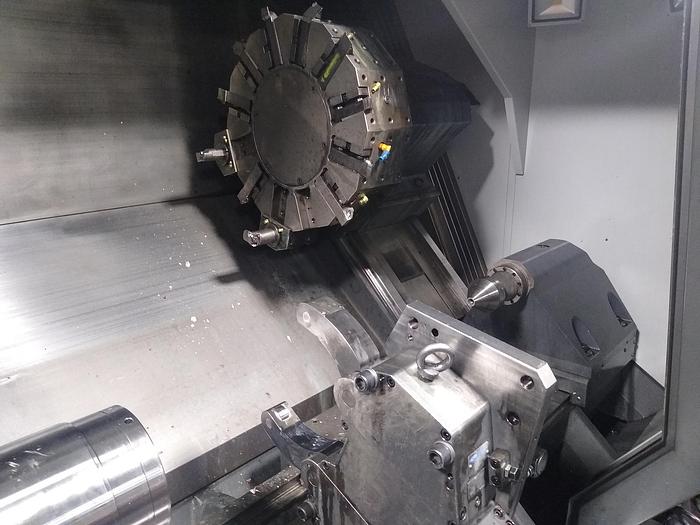

Tailstock
High Intensity Lighting

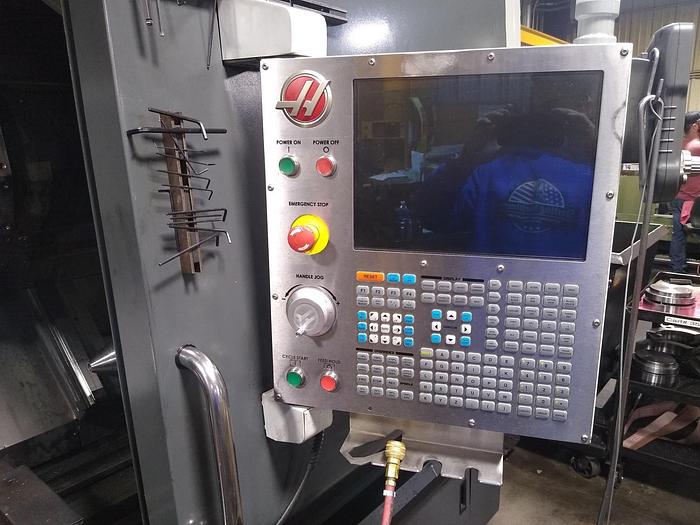

Haas Intuitive Programming
55 HP Option with Geared Headstock

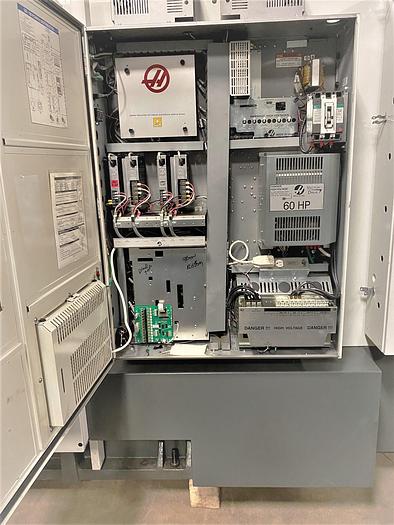

Control Cabinet Cooler
Full Load 70 amps
95 Gallon Coolant Tank
All Available Manuals
Wired 195-260V Electrics
**Delivered 9/2017**
**Machine was a lease return and runs well**
Specifications
| Manufacturer | Haas |
| Model | ST-45L |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118426 |
| Chuck Size | 18" Samchully MH-218 3 Jaw Hyd. Chuck |
| Maximum Swing | 34.5" |
| Maximum Turning Diameter | 25.5" |
| Maximum Machining Length | 80" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 7" / 6.5" |
| Spindle Motor | 55 HP |
| Spindle Speed | 1,400 RPM |
| Number of Turret Positions | 12 Station Turret - Bolt On |
| Spindle Torque | 1,400 ft-lbf@150 rpm |
| Rapid Traverse Rates X/Z | 710 ipm/320 ipm |
| Machine Weight | 29,900 lbs |
| Machine Dimensions LxWxH | 249"x90"x100" |
