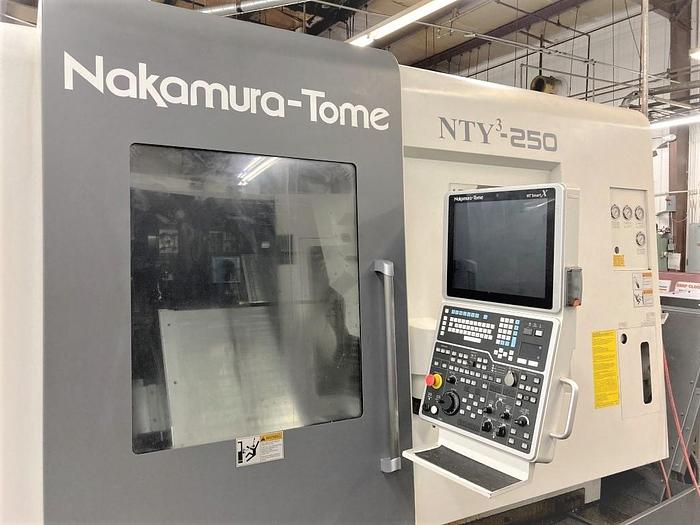

2017 Nakamura Tome NTY3-250
No longer available
2017 Nakamura Tome NTY3-250
$190,000 (USD)
Location:California
Description
Dual Spindle Design
Full C Axis Spindle Rotation (both) with Milling/Drilling Capability

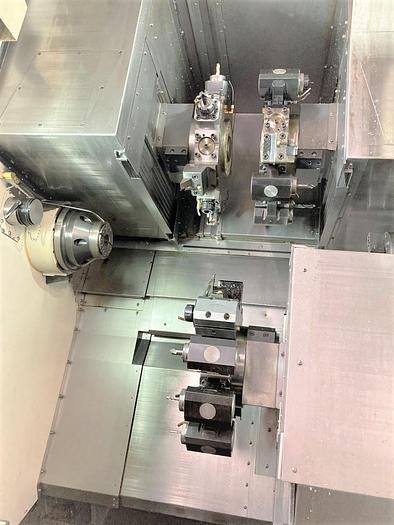

(3) Turrets, 2 Upper and 1 Lower Turret
24 Positions on Each Turret (12 Live) - 72 Positions Total
Royal Quick Grip Acu-Length Collet Chuck on Main Spindle
8.5" Schunk Tota NCD 215-66 2 Jaw Hydraulic Chuck on Subspindle
Parts Conveyor
Parts Catcher

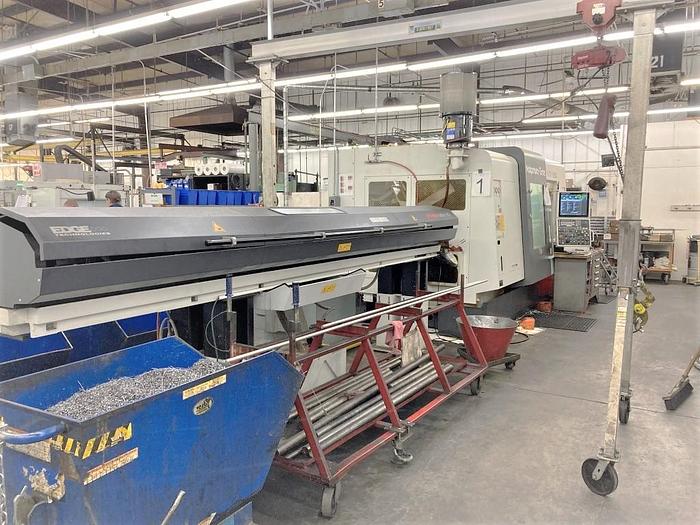

Edge Technologies FMB Turbo 5-65 Magazine Barfeeder
Manual Detachable Tool Setter
High Pressure Coolant Through on all 3 Turrets

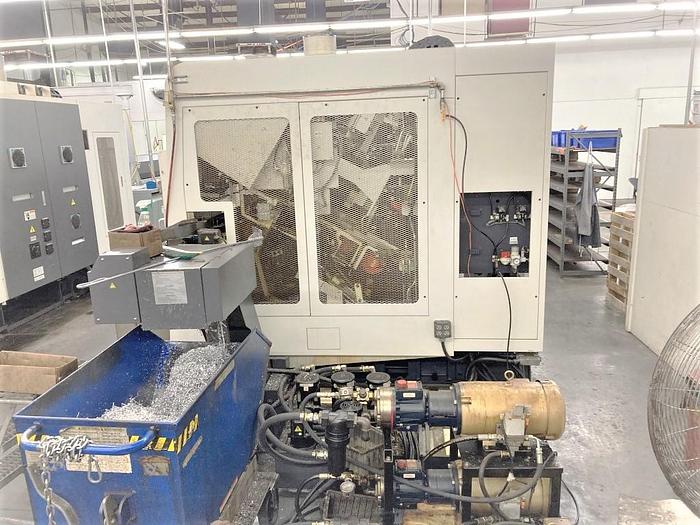

Chip Conveyor
Barfeed Interface
Heimatec Universal Head 90 Degree Adjustable

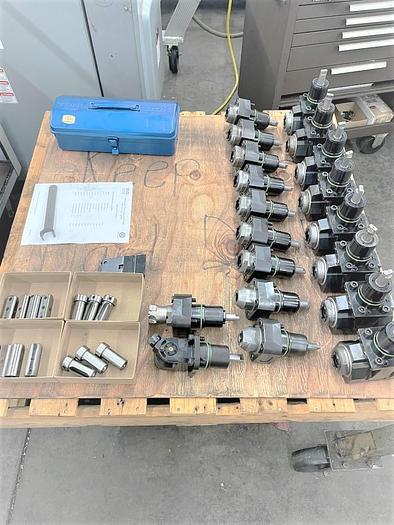

(9) Axial Live Tool Holders and (9) Radial Live Tool Holders

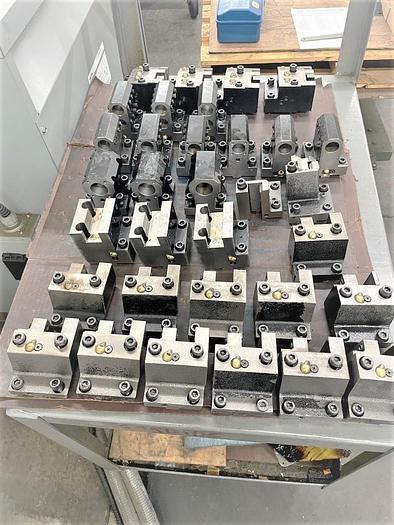

Additional Static Tool Holders
All Available Manuals
Specifications
| Manufacturer | Nakamura Tome |
| Model | NTY3-250 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 118413 |
| Machine Control | NT-Smart X-Controller |
| Chuck Sizes Main / Subspindle | Collet Chuck / 8.5" 2 Jaw Hydraulic Chuck |
| Maximum Turning Diameter | 8.86" |
| Maximum Turning Length Upper / Lower | 12.23" / 35.68" |
| Distance Between Spindles | 10.05" - 47.28" |
| Maximum Bar Capacity Left / Right | 2.5" / 2.0" |
| X-Axis Travel X1 / X2 / X3 | 6.3" / 6.3" / 6.5" |
| Y-Axis Travel | 4.4" |
| Z-Axis Travel Z1 / Z2 / Z3 | 14" / 14" / 35.9" |
| B-Axis Subspindle Travel | 37.2" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | Full C Rotation / Full C Rotation |
| Spindle Nose / Spindle Bore | A2-6" / 3.15" |
| Subspindle Nose / Subspindle Bore | A2-6" / 2.4" |
| Main & Subspindle Speeds | 4,000 RPM / 4,500 RPM |
| Spindle Motor / Sub Spindle Motor | 30 HP / 25 HP |
| Milling Spindle Speed | 6,000 RPM all three turrets |
| Milling Spindle Motor | 7.5 HP all three turrets |
| Number of Turrets | 3 Turrets |
| Number of Turret Positions | 24 Stations per Turret - 12 Live Positions each |
| Rapid Traverse Rates X / Y / Z | 1181 IPM / 551 IPM / 1575 IPM |
| Machine Weight | 31,802 lbs |
