2008 Hyundai-Kia SKT-250Y

2008 Hyundai-Kia SKT-250Y

$57,950 (USD)

Location:California

orCall (863) 439-6066

Description

Full C Axis Spindle Rotation (servo controlled)

Live Milling/Drilling Capability

Y Axis Capability

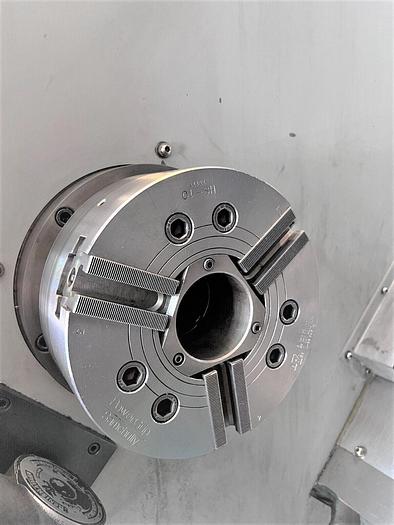

10" 3 Jaw Hydraulic Chuck (capable of 12")

Automatic Parts Catcher

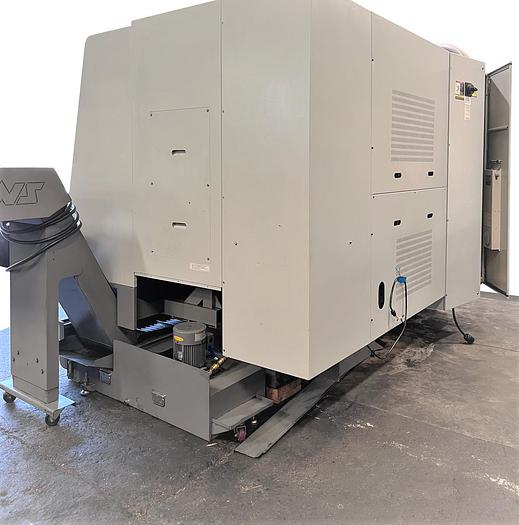

Chip Conveyor

Tool Presetter

Tailstock

Rigid Tapping

PCMCIA Port Interface

RS 232 Port Interface

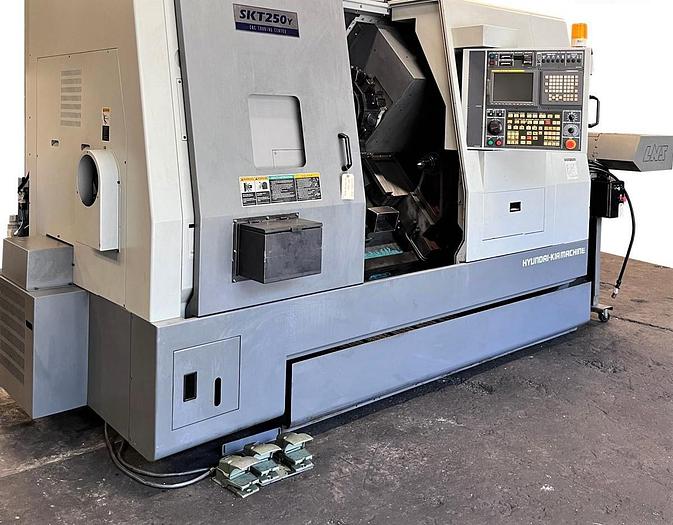

Foot Pedal for Operation of Chuck

Complete Coolant System with Tank & Pump

Static Tooling Includes (2) Boring Holders and (5 or 6) Turning Holders

(1) Live OD Type Tool Holder

All Available Manuals

Machine Run Hours 9,682

Approximate Cut Hours 3,500


Specifications

ManufacturerHyundai-Kia
ModelSKT-250Y
Year2008
ConditionUsed
Stock Number118410

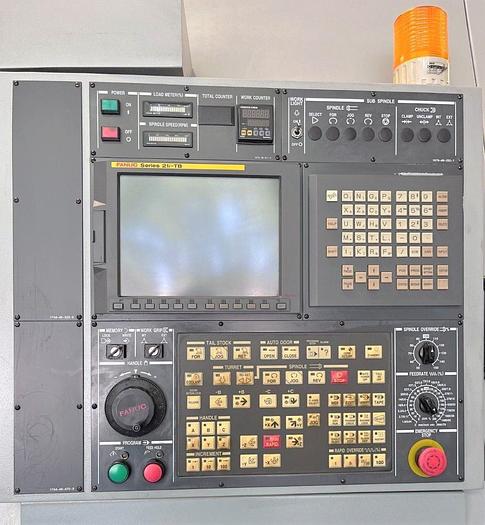

Machine ControlFanuc 21i-TB
Chuck types main / subspindle10" Hydraulic Chuck
Maximum swing24.4"
Maximum cutting diameter16.1"
Maximum machining length29.5"
Maximum bar capacity3.1"
X-axis travel9.1"
Y-Axis TravelYes
Z-axis travel27.6"
Minimum spindle index increment0.001 Degree
Spindle nose / spindle boreA2-8" / 3.75"
Spindle speed3,500 RPM
Spindle motor 30 min. / cont.30 HP / 25 HP
Rotary tool speed30 - 3000 RPM
Rotary tool motor5.5 HP

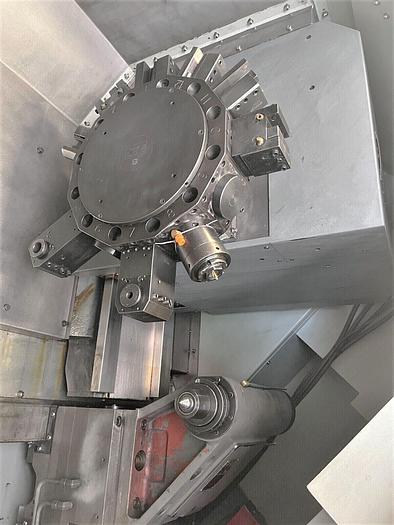

Turret type / live positions12 Stations
Rapid traverse rates945 IPM
Machine dimensions137" x 77" x 88"
Machine weight14,330 lbs.
