2004 Haas Super Mini Mill
No longer available
2004 Haas Super Mini Mill
$26,950 (USD)
Illinois
Description

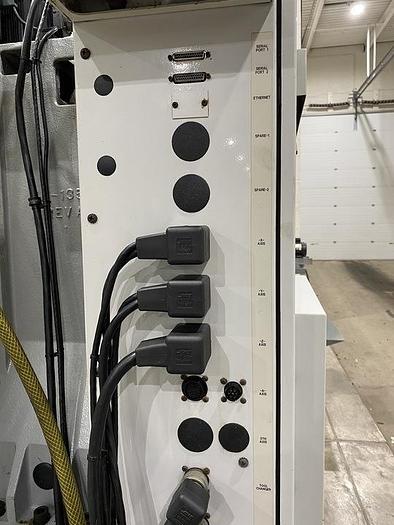

4th Axis Drive & Wiring

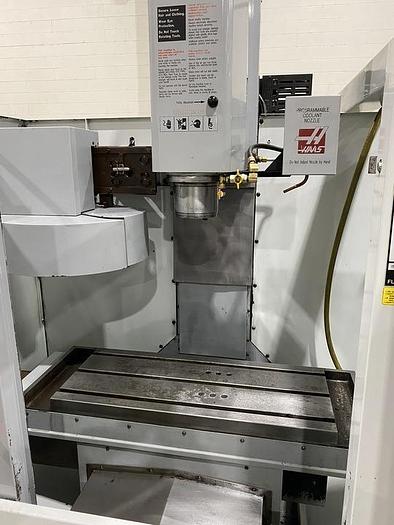

Programmable Coolant Nozzle

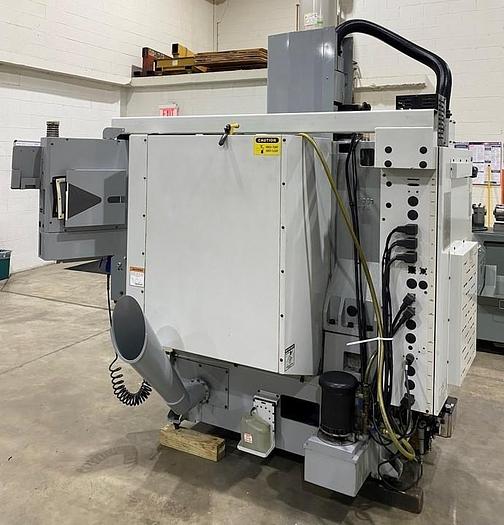

Auger Style Chip Conveyor
Rigid Tapping
Coolant System with Tank & Pump

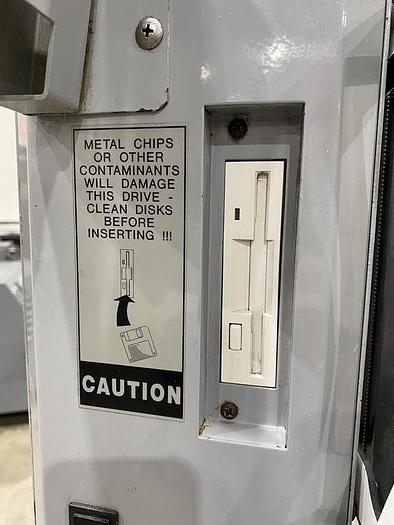

3.5" Floppy Disk Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill |
| Year | 2004 |
| Condition | Used |
| Stock Number | 118405 |

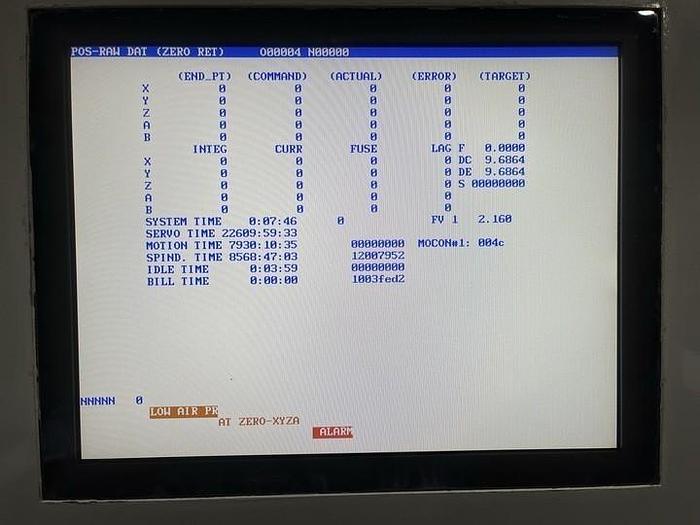

| Machine Control | Haas CNC Control |
| Table Size | 36" x 10" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |

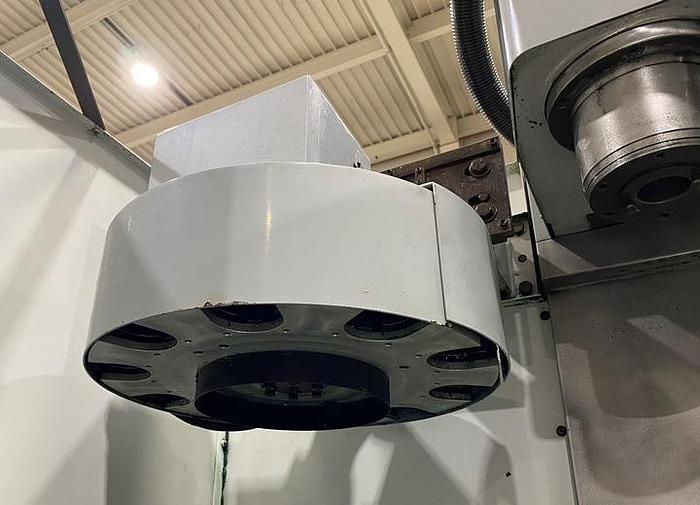

| Tool Magazine Capacity | 10 Station ATC |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 5,000 lbs |
