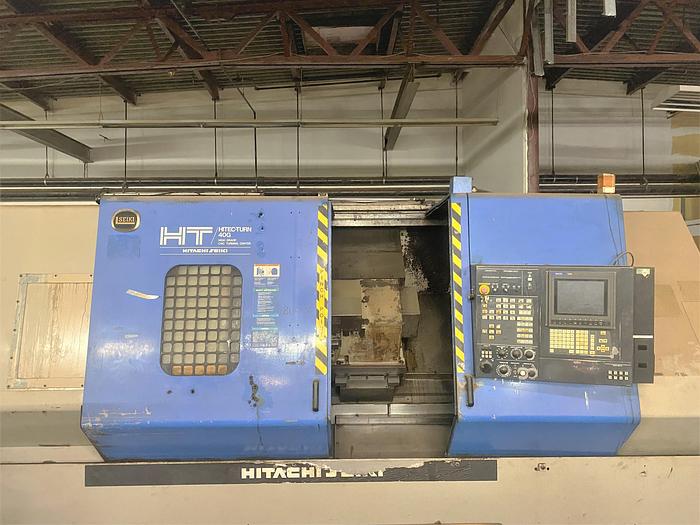

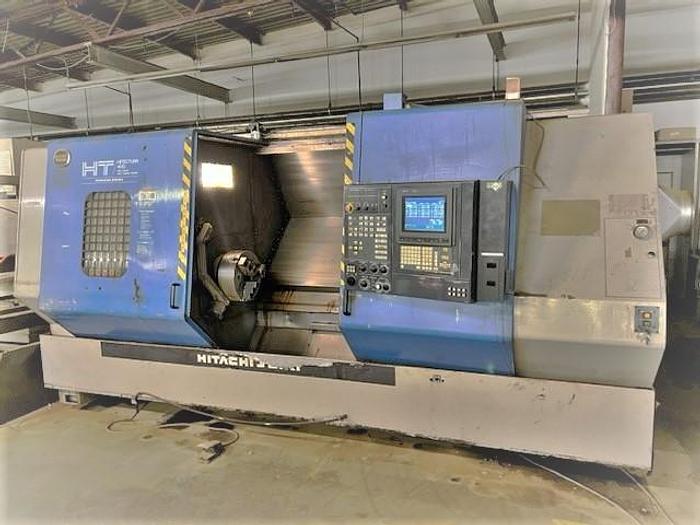

1998 Hitachi Seiki HiTec-Turn 40G
1998 Hitachi Seiki HiTec-Turn 40G
$19,500 (USD)
Location:Connecticut
or
Call (863) 439-6066
Description

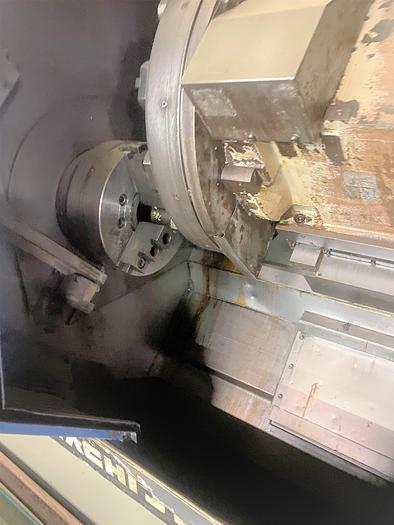

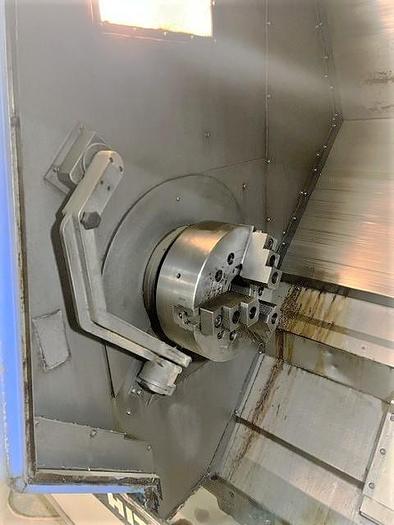

15" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tool Eye (not sure if working)

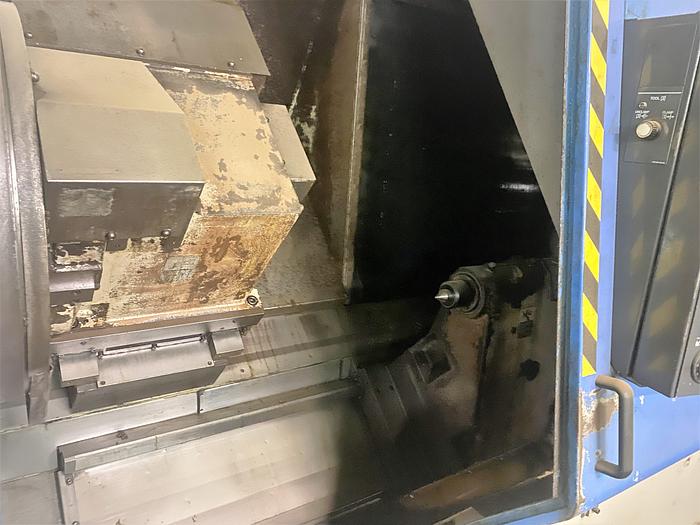

Tailstock
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
Specifications
| Manufacturer | Hitachi Seiki |
| Model | HiTec-Turn 40G |
| Year | 1998 |
| Condition | Used |
| Stock Number | 118404 |

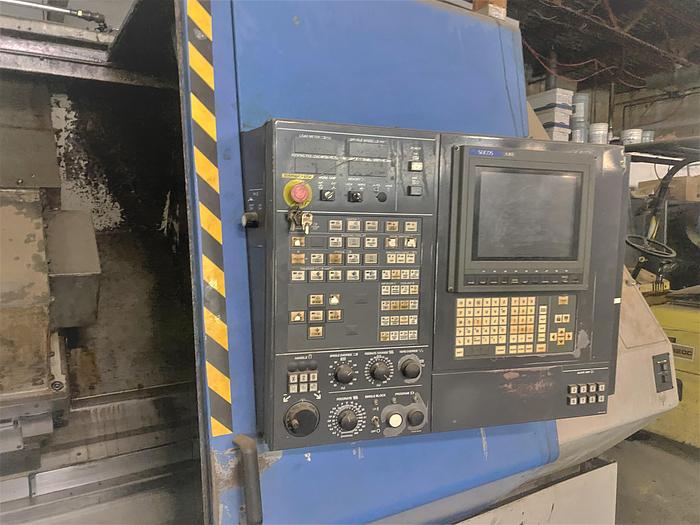

| Machine Control | Seicos Control |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 39.4" |
| Maximum Turning Diameter | 24.4" |
| Maximum Machining Length | 43.3" |
| X-axis travel | 13.5" |
| Z-Axis Travel | 44" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 4.7" / 4" |
| Spindle Speed | 20-2,000 RPM |
| Spindle Motor | 40 HP |

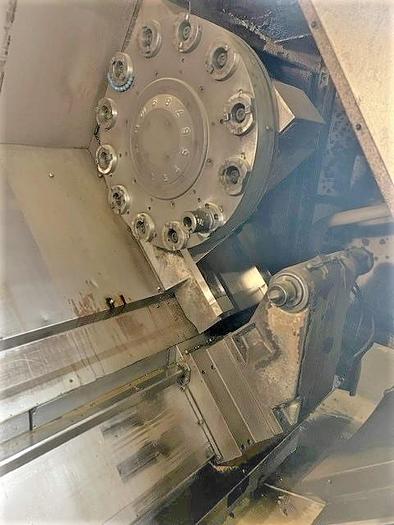

| Number of Turret Positions | 12 Posistions |
| Rapid Traverse Rates X / Z | 590 IPM / 708 IPM |
| Tailstock Body Travel / Quill Travel | 35.4" / 4.7" |
| Tailstock Quill Diameter / Center | 4.3" / #5 MT |
| Machine Dimensions LxWxH | 178"x103"x92" |
| Machine Weight | 21,340 lbs |
