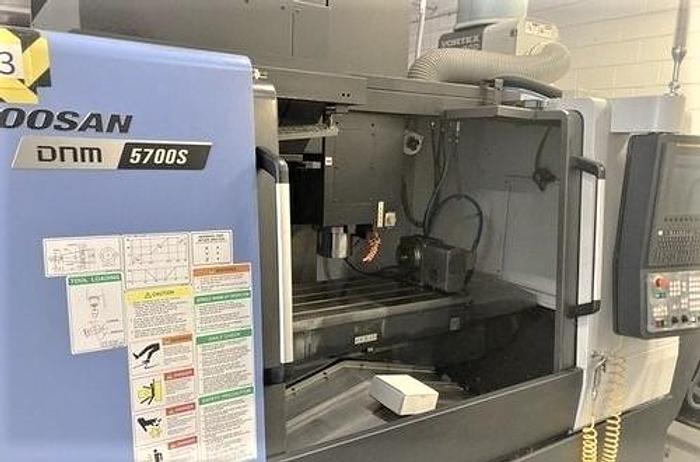

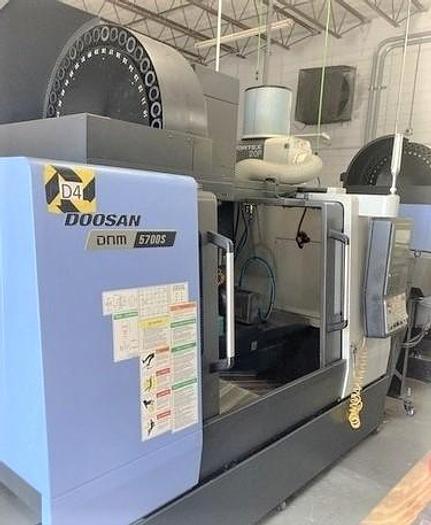

2021 Doosan DNM 5700S
No longer available
2021 Doosan DNM 5700S
$134,500 (USD)
Florida
Description
Renishaw Probing includes Tool Probe and Prepped for Spindle Mounted Part Probe
-Spindle Mounted Probe available for additional cost

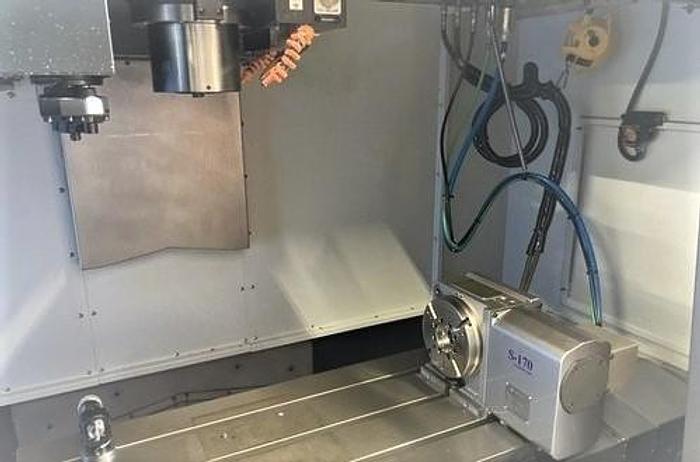

Samchully S-170 4th Axis Rotary Table
5th Axis Drive ONLY
Chip Conveyor -Fine Filter Type - LNS Turbo MH250
Dual Chip Augers
Coolant Through the Spindle
High Pressure Coolant Pump
15,000 RPM Spindle
40 Station Side Mounted Tool Changer
Edge Technologies Vortex 20P Mist Collector
Programmable Coolant
Rigid Tapping
Remote Jog Handle
Work Light
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Chiller Unit
Wired 220V Electrics
Includes (20) CAT 40 Tool Holders
**ONLY 2,209 Run Hours**
Specifications
| Manufacturer | Doosan |
| Model | DNM 5700S |
| Year | 2021 |
| Condition | Used |
| Stock Number | 118398 |
| Machine Control | Fanuc i Series Plus Control |
| Table size | 51.2" x 22.44" |
| Maximum Table Load | 1,300 lbs. |
| X-Axis Travel | 41.3" |
| Y-Axis Travel | 22.44" |
| Z-Axis Travel | 20.08" |
| Spindle Taper | CAT #40 Big Plus |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Tool Change Time Tool to Tool | 1.3 Seconds |
| Rapid Traverse Rates X, Y / Z | 1653 IPM / 1417 IPM |
| Cutting Feedrates | 590 IPM |
| Machine Dimensions | 122.4" x 95" x 117.5" |
| Machine Weight | 14,330 lbs. |
