2016 Haas VF2SS
No longer available
2016 Haas VF2SS
$66,950 (USD)
Location:Florida
Description
24+1 Position Side Mounted Tool Changer

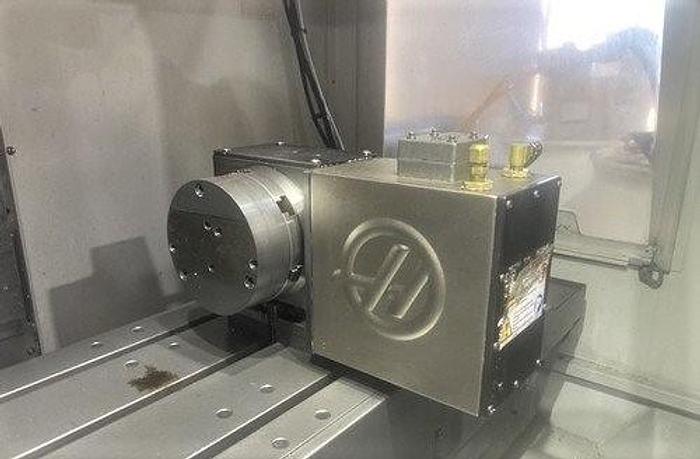

Haas HRT210 4th Axis Rotary Table
Haas Wireless Probing - Tool & Part Probing
300 PSI Coolant Through the Spindle
Auger Style Chip Conveyor
High Intensity Lighting
Programmable Coolant Nozzle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Oil Skimmer
Enclosure Exhaust System
Early Power Failure Detection Module
Rigid Tapping
1 GB Programming Memory

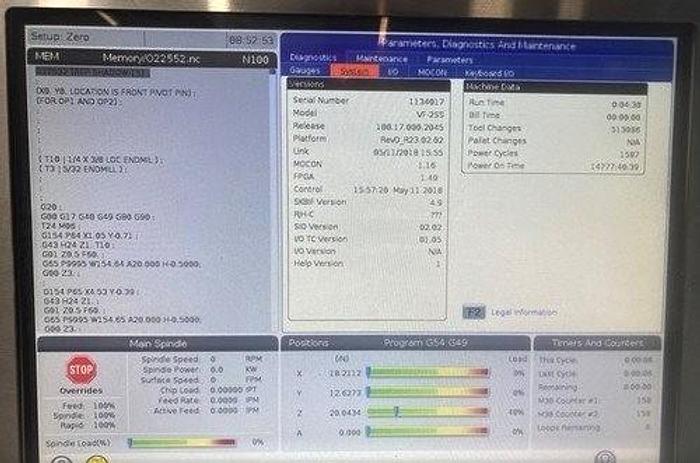

15" Color LCD Monitor
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 220V Electrics
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118397 |
| Table size | 36"x14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9,000 lbs. |
