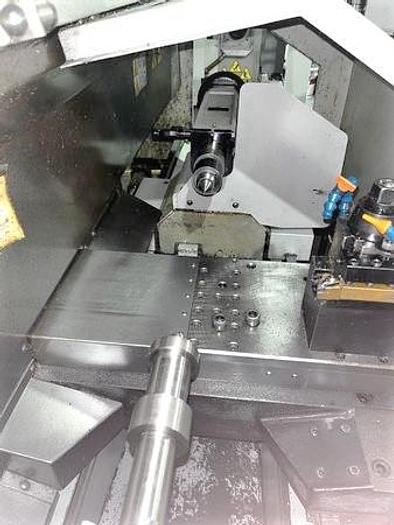

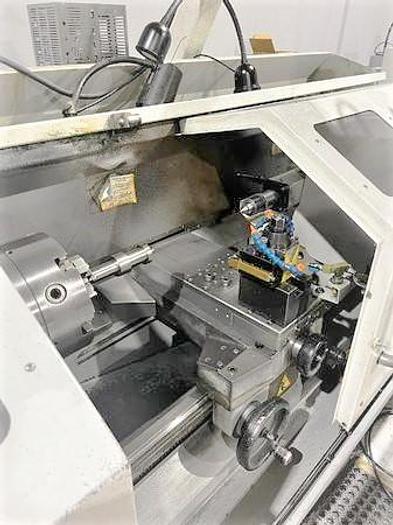

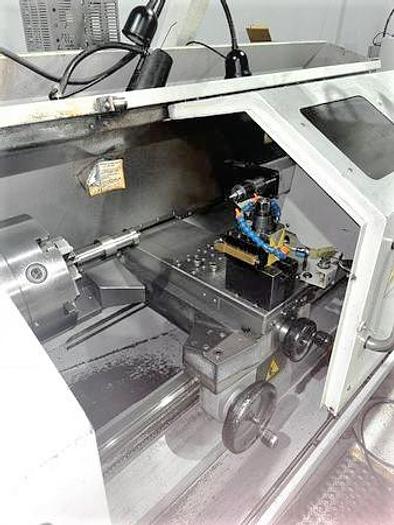

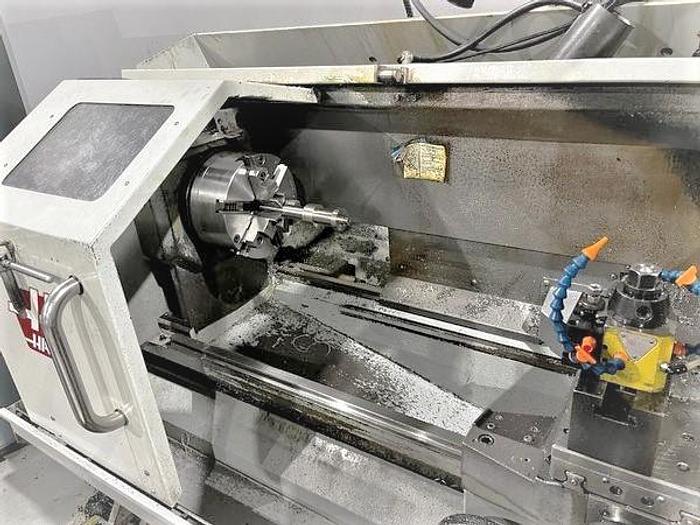

2009 Haas TL-2
No longer available
2009 Haas TL-2
Location:New Jersey
Description

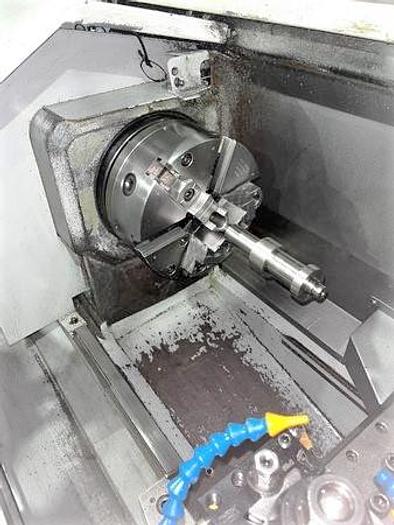

10" 3 Jaw Manual Chuck
Tailstock

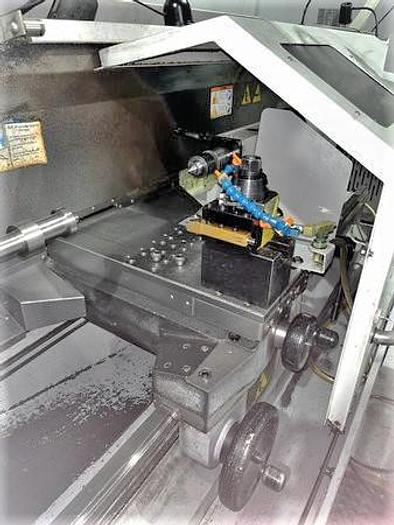

Tool Post
Full Machine Coolant Covers
Manual Hand Wheels Coolant System with Tank & Pump Integral Chip-Flow Channel Flip Down Safety Enclosure 1 MB Program Memory RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle Machine Can Run Either 240V Single Phase or 208V Three Phase Power

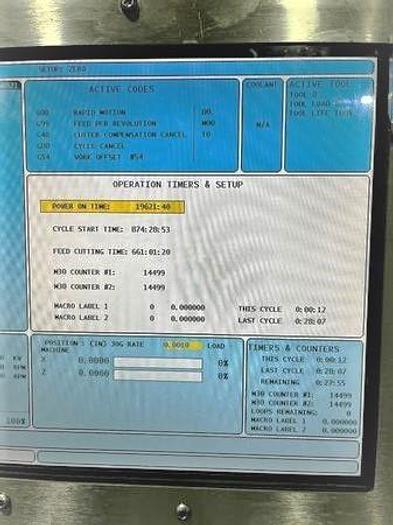

**Power On Hours 19,621**
**Cycle Start Hours 874**
**Feed Cut Hours 661**
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 118392 |
| Control | Haas 32 BIT |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-5" / 3" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | Cross Slide Only |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
