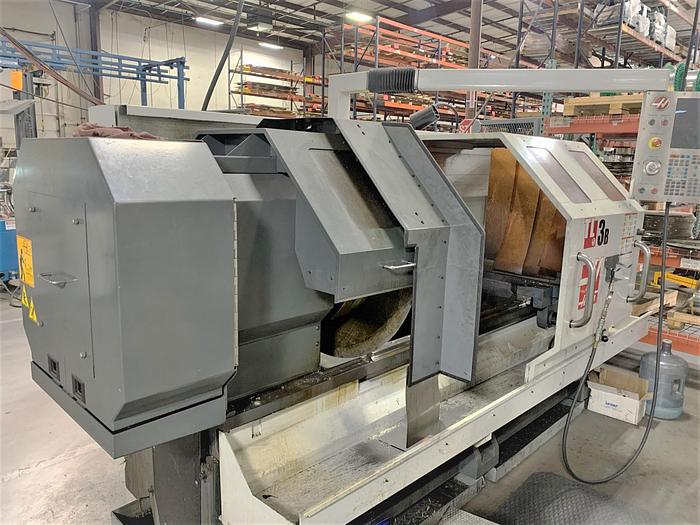

2013 Haas TL-3B Big Bore Chucker (no tailstock)
2013 Haas TL-3B Big Bore Chucker (no tailstock)
Contact us for price
Texas
orCall (863) 439-6066
Description

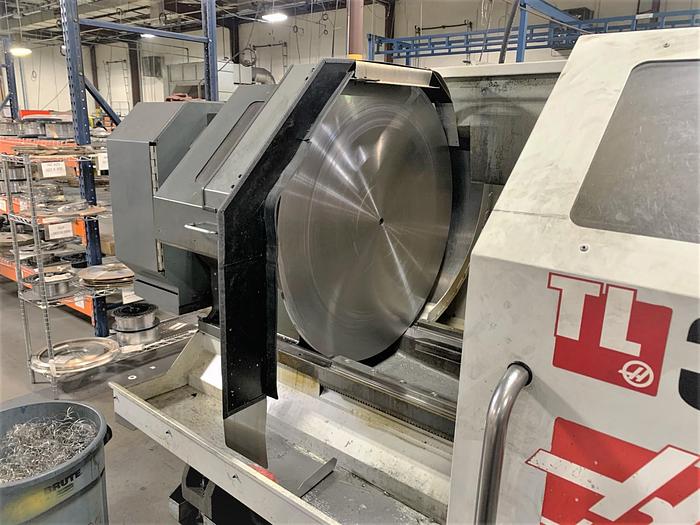

25" 3-Jaw Manual Scroll Chuck
8.5" Big Bore Spindle
Equipped with A2-15" nose mount for a rear chuck but none included
Haas Intuitive Programming System

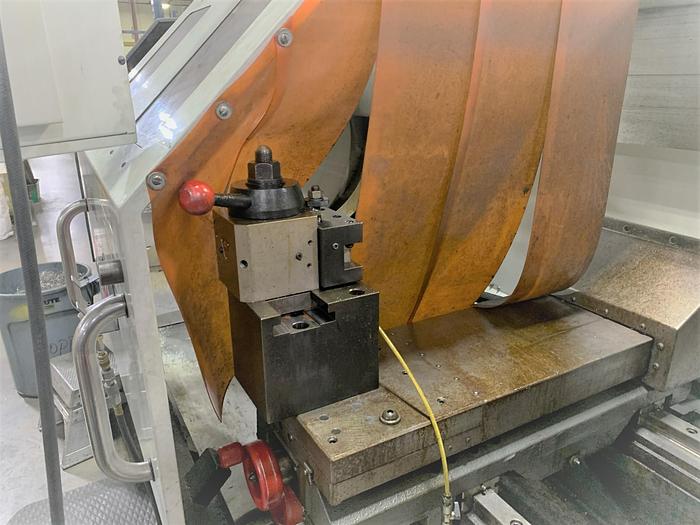

Quick Change Tool Post
Work Light
Coolant Pump Kit - 1/8 HP
2-Speed Geared Headstock
1 MB Progamming Memory
Memory Key Lock Switch

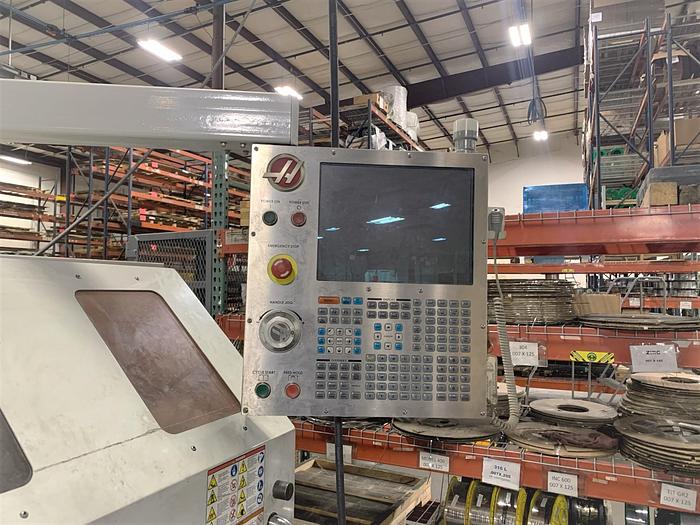

15" Color LCD Monitor
USB Port Interface
RS 232 Port Interface
Wired 195-260V Electrics
**This is a chucker without a tailstock**
**Estimated to be available late April to early May of 2024, once new machines has be commissioned**
**Currently under power in a plant**
Specifications
| Manufacturer | Haas |
| Model | TL-3B Big Bore |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118384 |
| Machine Control | Haas CNC Control |
| Chuck Sizes | 25" 3-Jaw Manual Chuck |
| Maximum Swing over Bed | 30" |
| Maximum Swing/Over Carriage | 32" / 18.4" |
| Distance Between Centers | 60" |
| Maximum Machining Length | 60" |
| Spindle Nose / Bore / Bar Capacity | A2-15" / 8.5" / 8.5" |
| Spindle Speeds | 650 RPM |
| Spindle Motor | 30 HP |
| Spindle Torque | 1,600 ft/lbs |
| Number of Tool Positions | Single Tool Posts |
| Rapid Traverse Rates X/Z | 75 IPM/ 150 IPM |
| Machine Dimensions LxWxH | 132"x97"x79" |
| Machine Weight | 9,624 lbs |
