2006 Mazak Nexus VCN 510C with 4th Axis Rotary Table
No longer available
2006 Mazak Nexus VCN 510C with 4th Axis Rotary Table
$49,000 (USD)
Illinois
Description

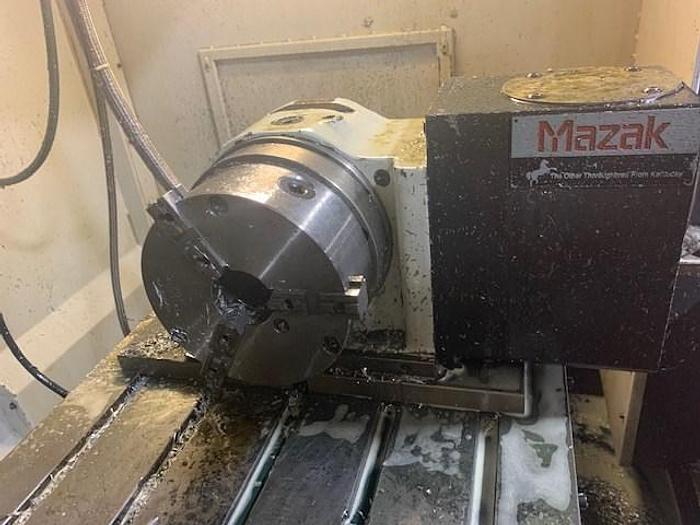

Mazak MR200 4th Axis Rotary Table
Coolant Through the Spindle

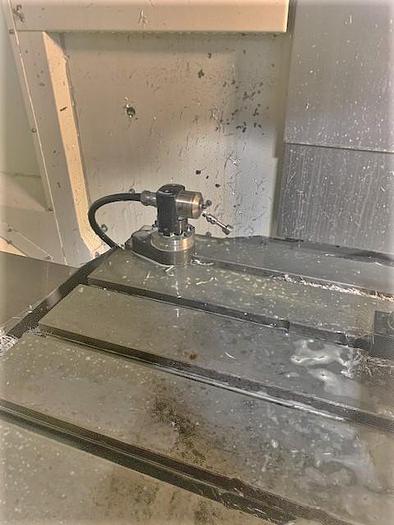

Auto Tool Length Measurement Probe (damaged)
Wired for Part Probe
Remote Jog Handle
Rigid Tapping
Mazatrol Planetary Tapping
EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tapping Cycle
Spiral Interpolation
Coordinate Rotation & Scaling
Shape Compensation
Threading
Variable 600 Sets
External Data Input / Output
Multi Tap Transformer
PCMCIA Slots
IC Memory Card Interface
All Available Manuals
Specifications
Manufacturer | Mazak |
Model | Nexus VCN 510C |
Year | 2006 |
Condition | Used |
Stock Number | 118382 |
Machine Control | Mazatrol Fusion 640M |
Table Size | 51.18"x21.65" |
Maximum Table Load | 2,646 lbs |
X-Axis Travel | 41.3" |
Y-Axis Travel | 20" |
Z-Axis Travel | 20" |
Spindle Taper | CAT 40 |
Spindle Speed | 12,000 RPM |
Spindle Motor | 25/20/10 HP |
Distance Spindle Nose to Table Top | 5.9" to 25.98" |
Tool Magazine Capacity | 30 ATC |
Rapid Traverse Rates | 1,417 IPM |
Machine Dimensions LxWxH | 113"x111"x113" |
Machine Weight | 15,180 lbs |
