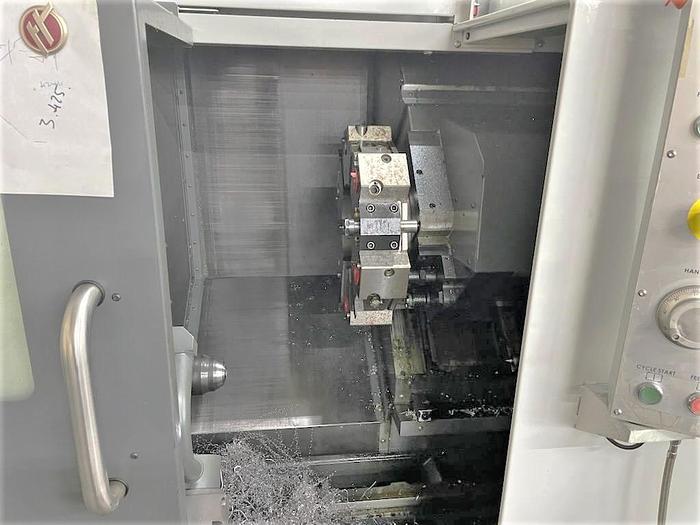

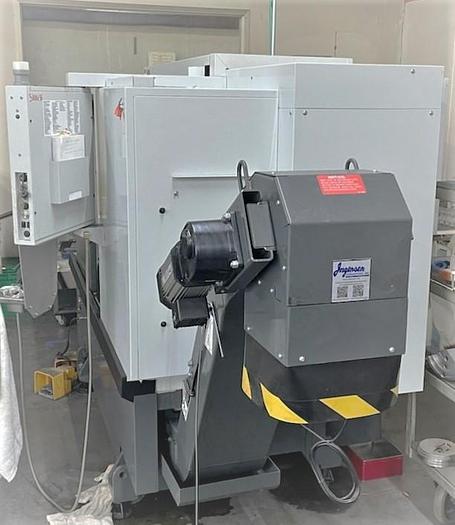

2019 Haas ST-15Y
Featured
No longer available
2019 Haas ST-15Y
$72,500 (USD)
Location:California
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
4,000 RPM Live Milling Option
Y Axis Capability
Chip Conveyor
8.3" 3 Jaw Hydraulic Chuck
User Definable Macros
Spindle Orientation
Visual Part Programming
Tool Presetter
Manual Tailstock w/Hydraulic Quill
Rigid Tapping
Ethernet Interface
1GB Program Memory
Auto Door
Early Power Failure Detection Module
12 Station VDI/BOT Hybrid Turret
Memory Lock Key Switch
30-Gallon Coolant Tank
USB Port Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | ST-15Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118374 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 16.5" |
| Maximum Machining Diameter | 12" |
| Maximum Machining Length | 16" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 7.9" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 16" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Position Hybrid w/ 6 BOT and 6 VDI-40 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Tailstock Taper | MT #3 |
| Machine Dimensions LxWxH | 126"x70"x81" |
| Machine Weight | 7,900 lbs. |
