2019 Haas ST-20Y
2019 Haas ST-20Y
$92,500 (USD)
Location:Ontario, Canada
Description

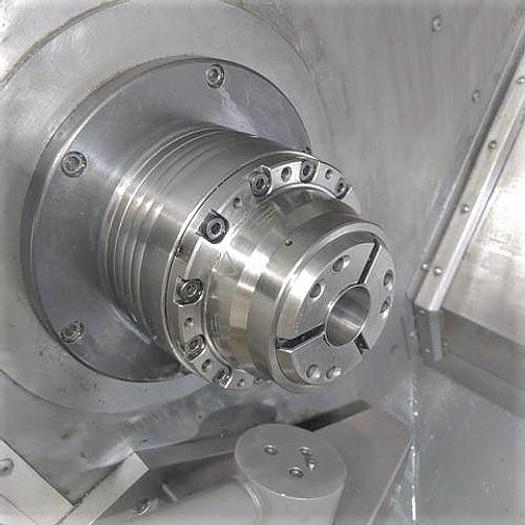

Hainbuch Spanntop Mini Chuck: Size 65 Collet Chuck
Visual Part Programming System
4000-rpm Spindle
Standard Program Memory, 1 GB
User-Definable Macros
55-Gallon Coolant Tank
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
HaasDrop

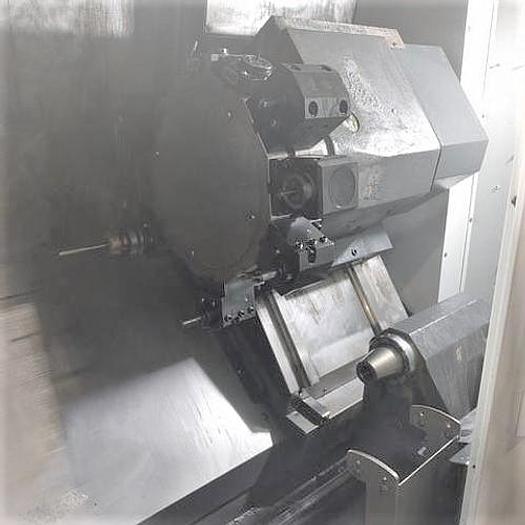

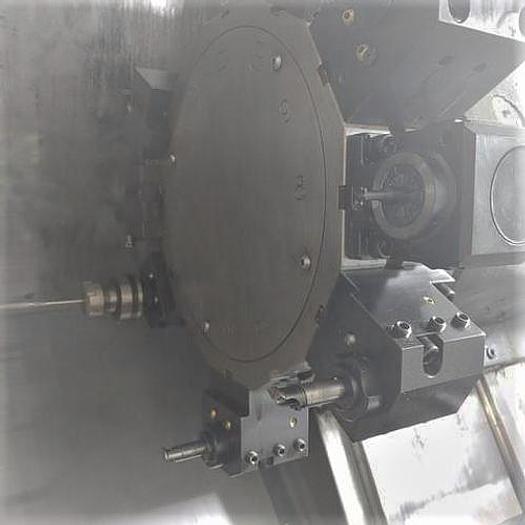

4000-rpm Live Tooling with C axis, 12-Station BMT65 Turret
Media Display M-Code; M130
Rigid Tapping
Spindle Orientation

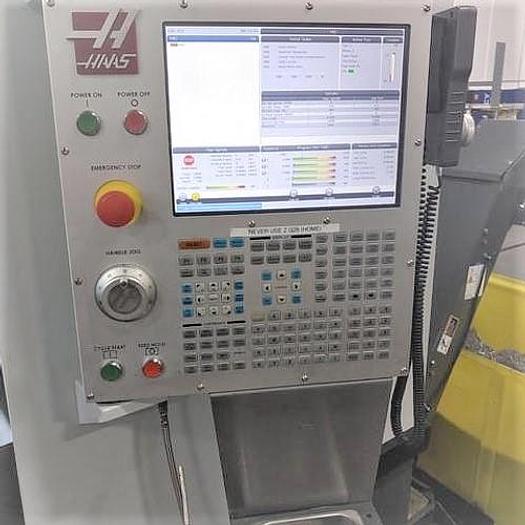

Control Touch Screen
WiFi Connection for the Haas Control
Inch Measurement Units
High-Pressure Coolant, 1,000 PSI
Automatic Tool Presetter
Belt-Type Lift up Chip Conveyor
Enclosure Exhaust System
High-Intensity Lighting
Haas Barfeed
Parts Catcher
Programmable Hydraulic Tailstock
Remote Jog Handle with Touchscreen Display
Internal High-Voltage Isolated Transformer
Chip Tray Filter Kit
Wired 220V Electrics
(1) Driven Toolholder, 90 Degree, for BMT65 Turret
(1) Driven Toolholder, Straight, for BMT65 Turret
MIscellaneous Static Tooling for BMT65 Turret

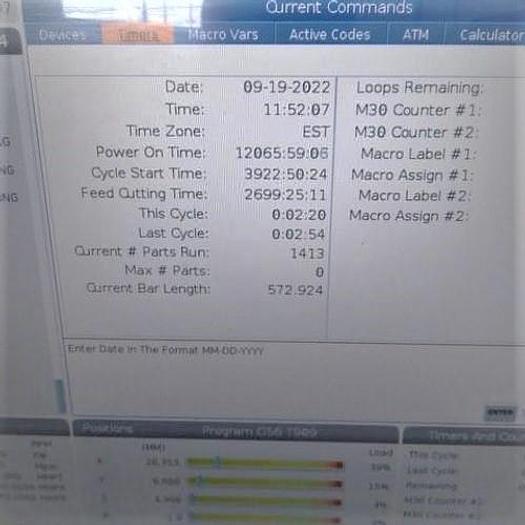

**Just 2,699 Feed Cutting Hours**
**New as equipped today inclusive of Haas discounting $163,956**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118373 |
| Machine Control | Haas NextGen Control |
| Chuck Size | Collet Chuck 65mm |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 10,480 lbs. |
