2020 Haas ST-20Y

2020 Haas ST-20Y

$106,000 (USD)

Pennsylvania

orCall (863) 439-6066

Description

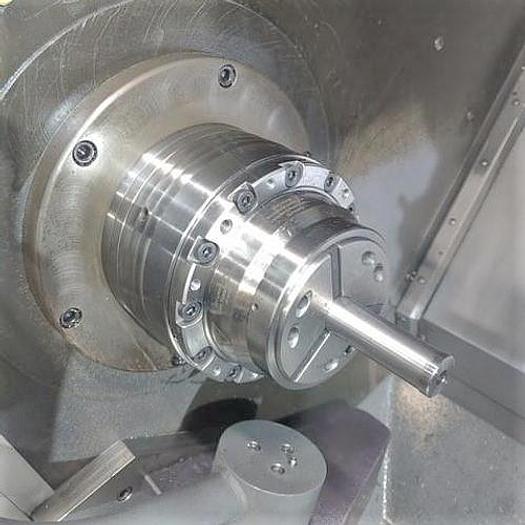

Hainbuch Spanntop Mini Chuck: Size 65 Collet Chuck

Visual Part Programming System

Standard Program Memory, 1 GB

User-Definable Macros

55-Gallon Coolant Tank

Early Power-Failure Detection Module

Ethernet Interface

HaasConnect: Remote monitoring

HaasDrop

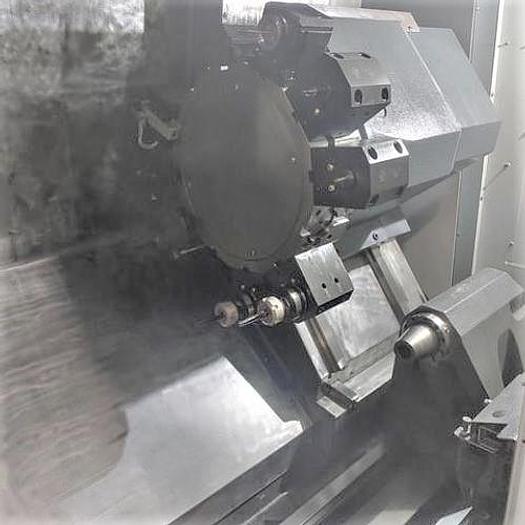

4000-rpm Live Tooling with C axis, 12-Station BMT65 Turret

Media Display M-Code; M130

Rigid Tapping

Spindle Orientation

Control Touch Screen

WiFi Connection for the Haas Control

Inch Measurement Units

High-Pressure Coolant, 1,000 PSI

Automatic Tool Presetter

Belt-Type Lift up Chip Conveyor

Enclosure Exhaust System

High-Intensity Lighting

Haas Barfeed

Parts Catcher

Programmable Hydraulic Tailstock

Remote Jog Handle with Touchscreen Display

Internal High-Voltage Isolated Transformer

Chip Tray Filter Kit

(1) Driven Toolholder, 90 Degree, for BMT65 Turret

(1) Driven Toolholder, Straight, for BMT65 Turret

MIscellaneous Static Tooling for BMT65 Turret

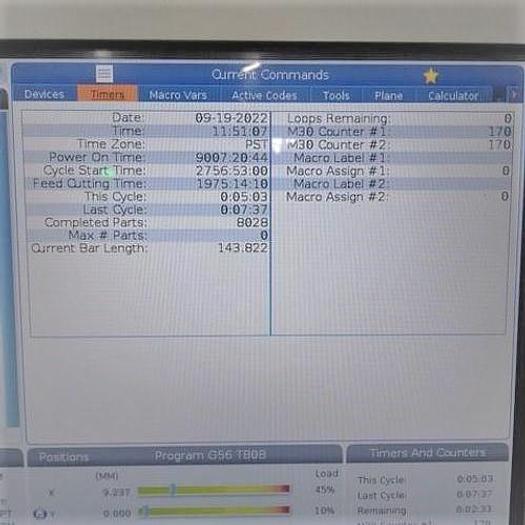

**Just 1,975 Feed Cutting Hours**

**New as equipped today inclusive of Haas discounting $163,956**

Specifications

ManufacturerHaas
ModelST-20Y
Year2020
ConditionUsed
Stock Number118372

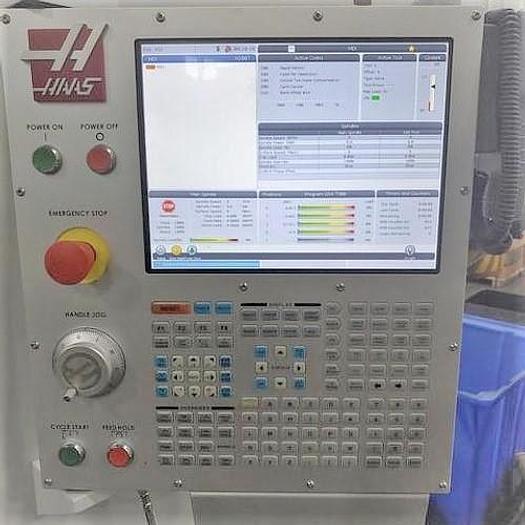

Machine ControlHaas NextGen Control
Chuck SizeCollet Chuck 65mm
Maximum Swing Over Cross Slide21"
Maximum Machining Diameter11.75"
Maximum Machining Length22.5"
Maximum Bar Capacity2.5"
X-Axis Travel8.4"
Y-Axis Travel+/- 2.0"
Z-Axis Travel22.5"
C Axis Spindle Rotation0.01 Degree
Spindle Nose / Spindle BoreA2-6" / 3.5"
Spindle Speeds4,000 RPM
Spindle Motor20 HP
Rotary Tool Speed / Rotary Motor4,000 RPM / 5 HP
Number of Turret Positions12 Bolt on Style - BMT65 Type
Rapid Traverse Rates X, Y / Z472 IPM / 945 IPM
Tailstock TaperMT #4
Machine Dimensions LxWxH142" x 90" x 92"
Machine Weight10,480 lbs.
