2017 Haas ST-20Y
No longer available
2017 Haas ST-20Y
$82,500 (USD)
New Jersey
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
6,000 RPM Live Milling Option
Y Axis Capability

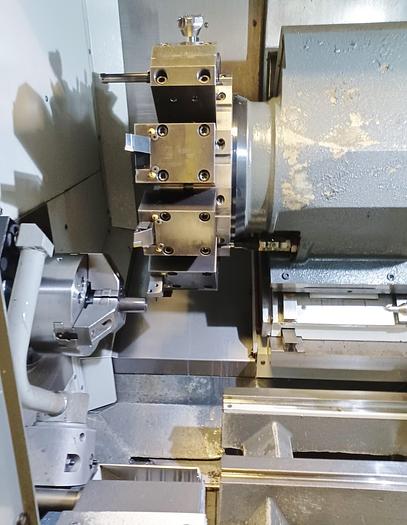

8" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
Tool Presetter
Spindle Orientation
Rigid Tapping

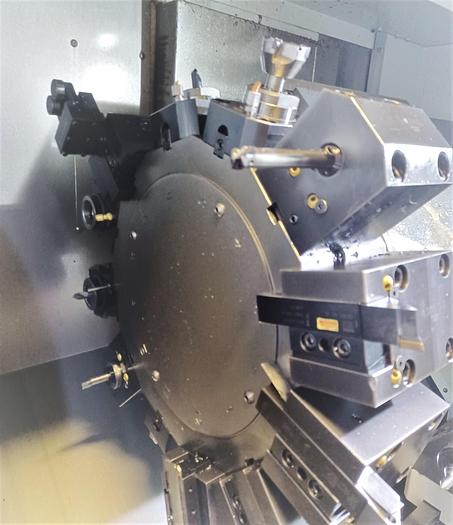

12 Station BMT65 Turret
15" LCD Color Monitor
Early Power Failure Detection Module
USB Port Interface
RS 232 Port Interface
Memory Lock Key Switch
All Available Tool Blocks
All Available Manuals

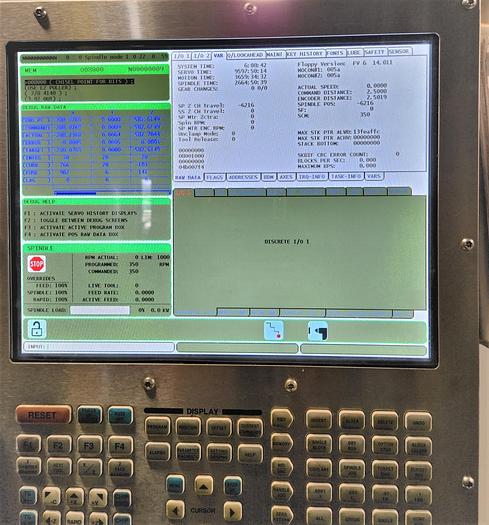

**Servo Time 9,597 Hours**
**Motion Time 3,659 Hours**
**Spindle Time 2,664 Hours**
**Machine primarily cut 4140 and 12L14 Steel**
**Check replacement cost at $120,000**
**Available at end of October**
Specifications
| Manufacturer | Haas |
| Model | ST-20Y |
| Year | 2017 |
| Condition | Used |
| Stock Number | 118369 |
| Machine Control | Haas CNC Control |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Machining Diameter | 12" |
| Maximum Machining Length | 21" |
| Maximum Bar Capacity | 2.0" |
| X-Axis Travel | 9.3" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 21" |
| C Axis Spindle Rotation | Full C Axis |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |

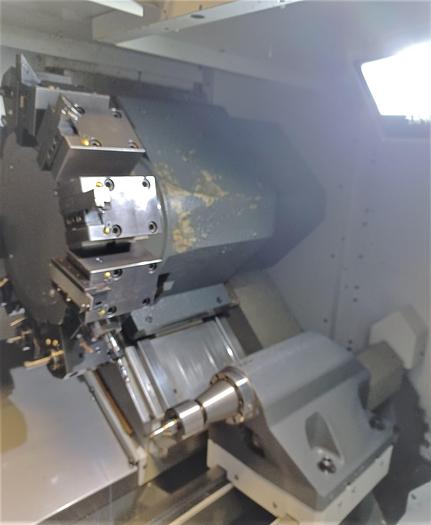

| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 12,300 lbs. |
