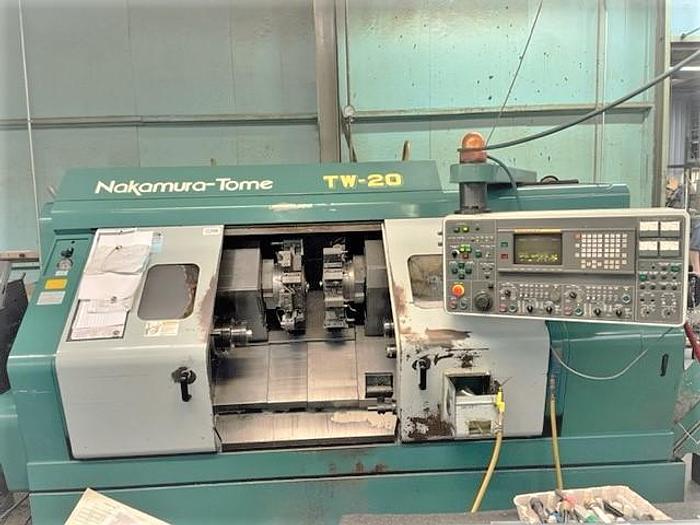

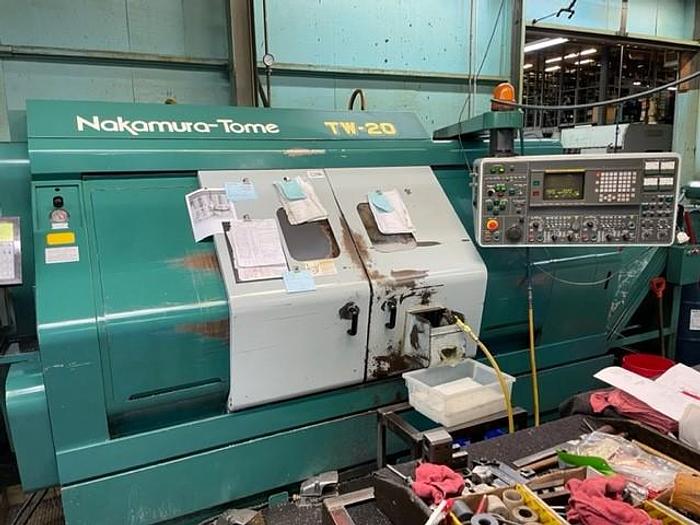

1995 Nakamura Tome TW-20MM
No longer available
1995 Nakamura Tome TW-20MM
$22,950 (USD)
New Jersey
Description

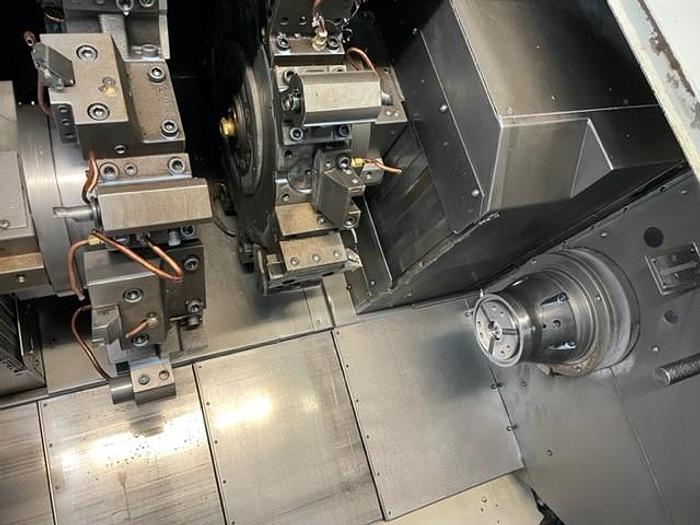

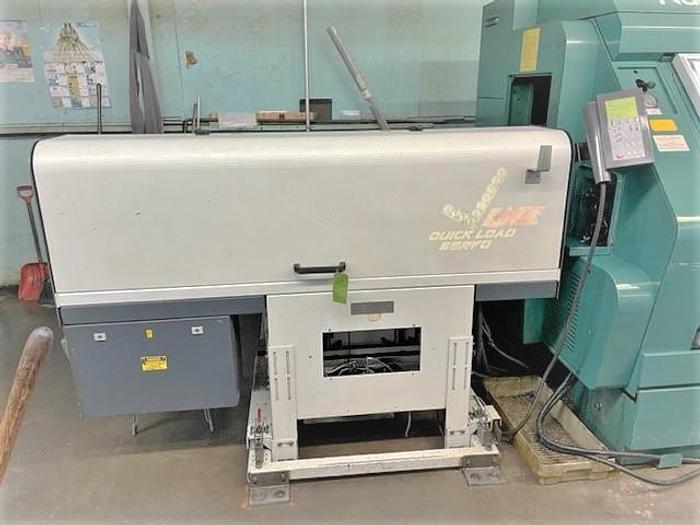

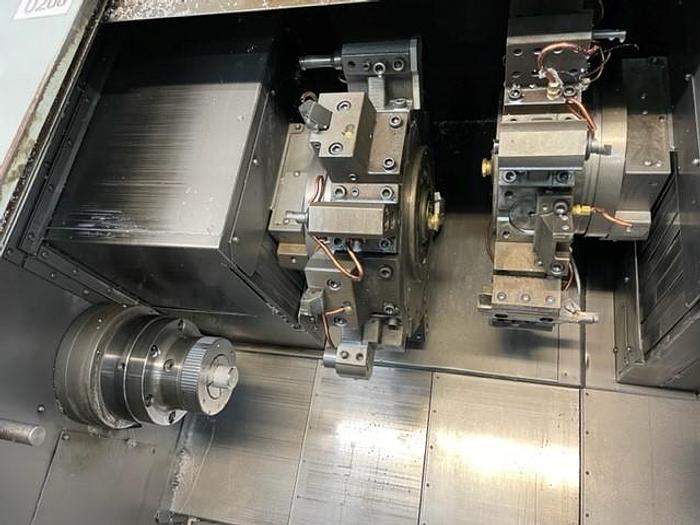

Twin Facing Spindle Design Full "C" Axis Spindle Rotation Both Spindle Live Milling / Drilling Capability on Both Turrets (2) Collet Chucks Barfeed Interface LNS Quickload Servo Short Bar Feed Unit Parts Catcher

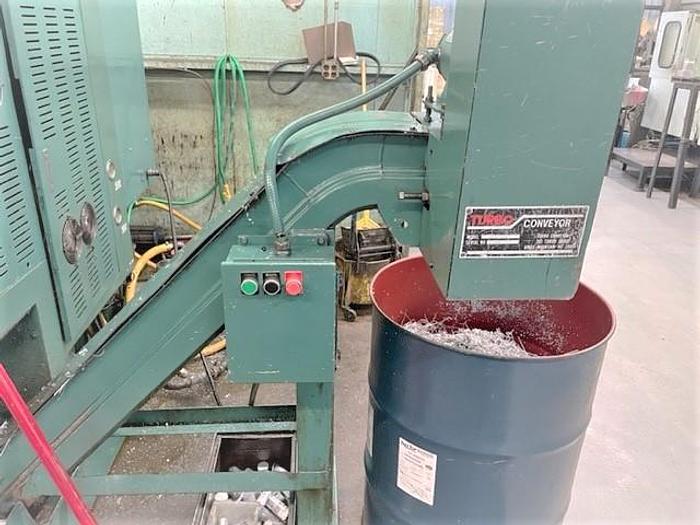

Chip Conveyor Coolant Tank with Pumps RS232 Port Interface
Miscellaneous Tooling All Available Manuals

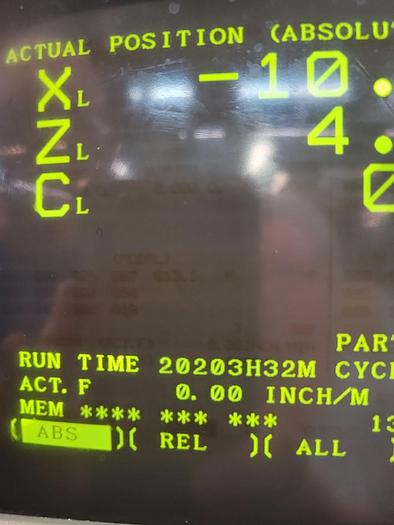

**Left Spindle Hours 20,203**

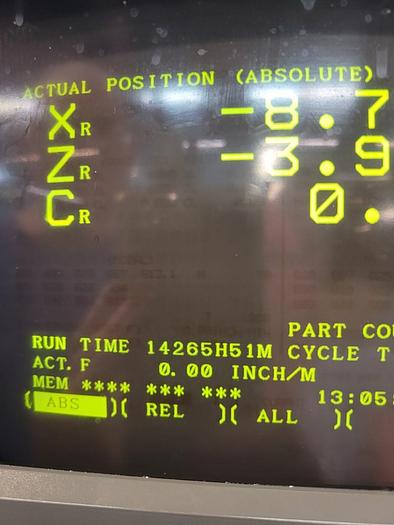

**Right Spindle Hours 14,265**
Specifications
| Manufacturer | Nakamura Tome |
| Model | TW-20MM |
| Year | 1995 |
| Condition | Used |
| Stock Number | 118361 |

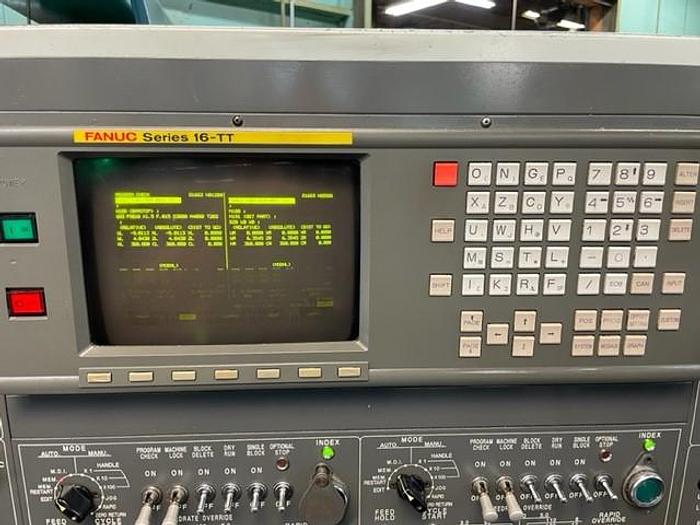

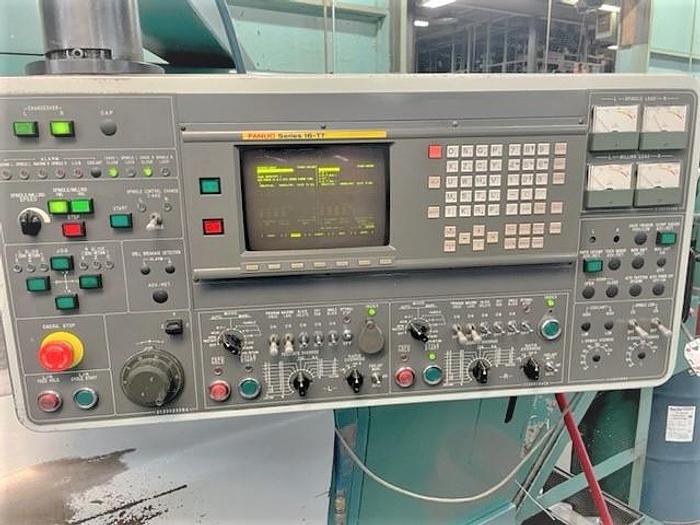

| Control | Fanuc 16-TT |
| Chuck Type Left / Right Spindle | Collet Chuck / Collet Chuck |
| Maximum Swing Bed Left / Right | 10.63" / 8.46" |
| Maximum Turning Diameter | 10.63" |
| Maximum Turning Length | 7.56" |
| Distance Between Spindles | 42.52" |
| Maximum Bar Capacity Left Side / Right Side | 2.0" / 2.0" |
| X-Axis Travel (Both Sides) | 7.68" |
| Z-Axis Travel (Left / Right) | 10.43" / 30.71" |
| C Axis Spindle Rotation - Both | .001 Degree |
| Spindle Nose / Spindle Bore Left / Right | A2-6" / 2.56" / 2.56" |
| Spindle Speed Left / Right | 5,000 RPM / 5,000 RPM |
| Spindle Motor - Both 30 minutes/continuous | 20 HP / 15 HP |
| Rotary Tool Speed / Rotary Motor | 3,600 RPM / 5 HP |
| Number of Turret Positions - Both | 12 Station each |
| Rapid Traverse Rates X / Z | 630 IPM / 1181 IPM |
| Machine Dimensions | 137" x 83" x 85" |
| Machine weight | 17,160 lbs. |
