2005 Milltronics ML18 CNC Combination Lathe
No longer available
2005 Milltronics ML18 CNC Combination Lathe
$19,950 (USD)
Location:Texas
Description
10" 3 Jaw Chuck
8 Station Turret
Tailstock
Electronic Hand Wheels for Manual Operation
Coolant System
Hardened / Ground Ways
Utilizes Both G Code and Conversational Type Programming
Wired 220V Electrics
3.5" Floppy Disk Interface
RS 232 Port Interface
Specifications
| Manufacturer | Milltronics |
| Model | ML18 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118356 |

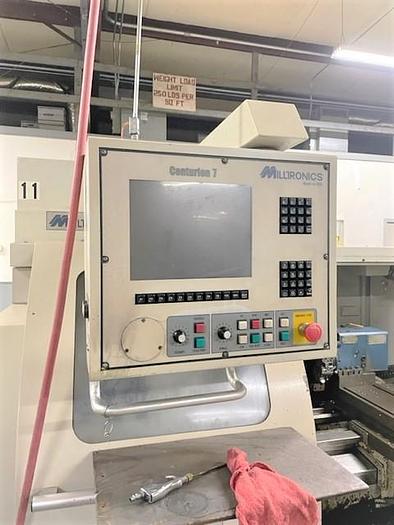

| Machine Control | Milltronics Centurion 7 Control |
| Chuck Size | 10" 3-Jaw Manual |
| Maximum Swing over Bed | 19" |
| Swing in Gap | 27.9" |
| Maximum Swing Over Cross Slide | 9.25" |
| Distance Between Centers | 66.9" |
| X-Axis Travel | 12" |
| Z-Axis Travel | 63.25" |
| Subspindle Nose / Bore / Bar Capacity | D1-6 Camlock / 2.56" / 2.56" |
| Spindle Speeds | 10 - 2,600 RPM |
| Spindle motor | 24 HP |
| Turret Type | 8 Station Turret |
| Rapid Traverse Rates | 500 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.15" / 6" / MT #5 |
| Machine Dimensions LxWxH | 120" x 60" x 76" |
| Machine Weight | 8,500 lbs |
