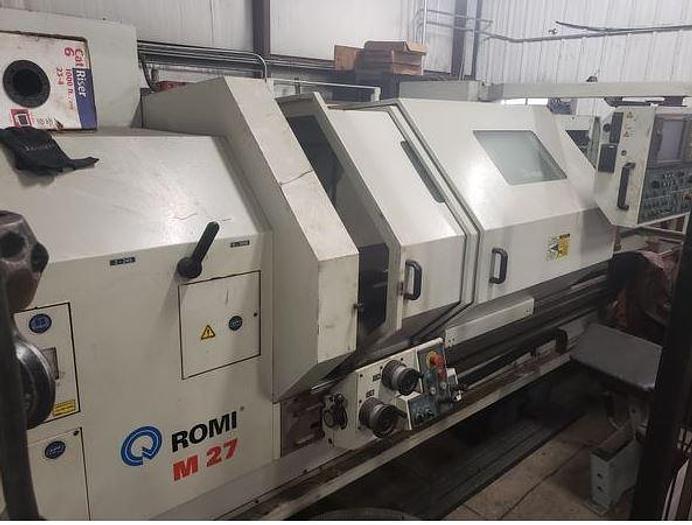

2007 Romi M27x80"
No longer available
2007 Romi M27x80"
Location:Texas
Description
Conversational Programming System
15" 3 Jaw Manual Chuck
Tailstock
U-Type Steady Rest 12"-16" Diameter Capacity w/rollers for 4"-8" and 8"-12"
Chip Conveyor
X & Z Electronic Hand Wheels
4 Position Joystick & Spindle Motor Switch for Manual Operation
Adjustable Z-Axis Home Position
Complete Coolant System
Work Light
Wired 480V 3ph 50/60 Hz
All Available Manuals
Miscellaneous Tooling
Specifications
| Manufacturer | Romi |
| Model | M27x80" |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118353 |
| Machine Control | Fanuc 21i-TB |
| Chuck Size | 15" 3-Jaw Manual |
| Maximum Swing over Bed | 26.97" |
| Distance Between Centers | 80" |
| Maximum Swing Over Cross Slide | 16.93" |
| X-Axis Travel | 14.17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 4.1" / 4" |
| Spindle Motor | 30 hp |
| Spindle Speeds | 2-441 rpm Low Range |
| Spindle Speeds | 8-1,800 rpm High Range |
| Number of Tool Positions | Quick Change Tool Post |
| Rapid Traverse Rates | 295 ipm |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 7.08" / #5MT |
| Floor Space Required | 155"x75" |
| Machine Weight | 13,890 lbs |
