2015 Doosan Puma MX2600ST
No longer available
2015 Doosan Puma MX2600ST
Location:New York, NY
Description

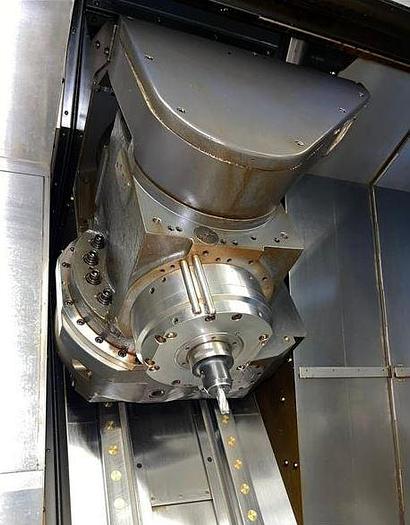

Pendulum Style B-Axis Head

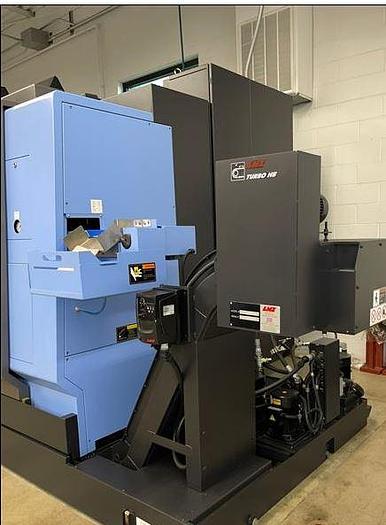

LNS Turbo Chip Conveyor

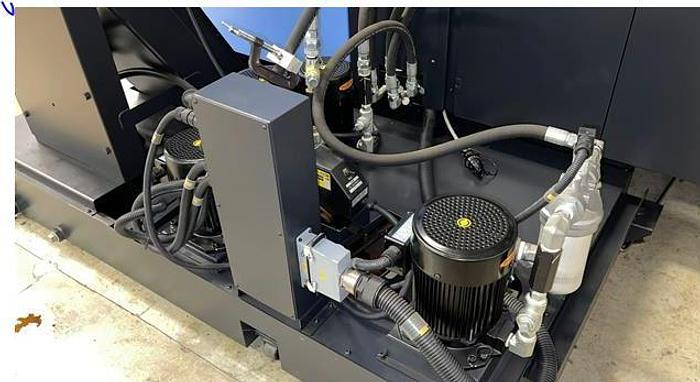

High Pressure Coolant System
Y-Axis

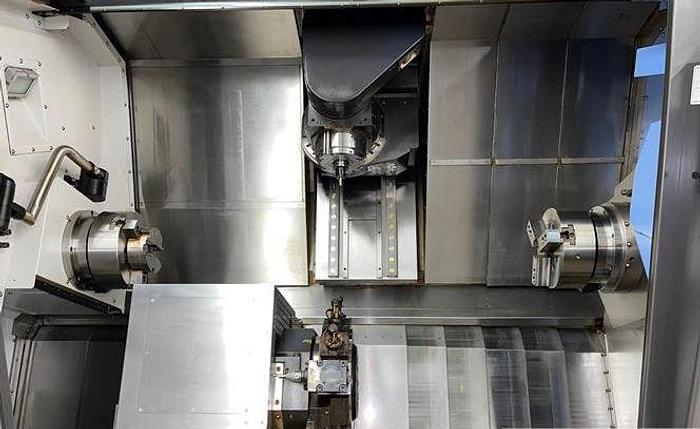

Sub Spindle

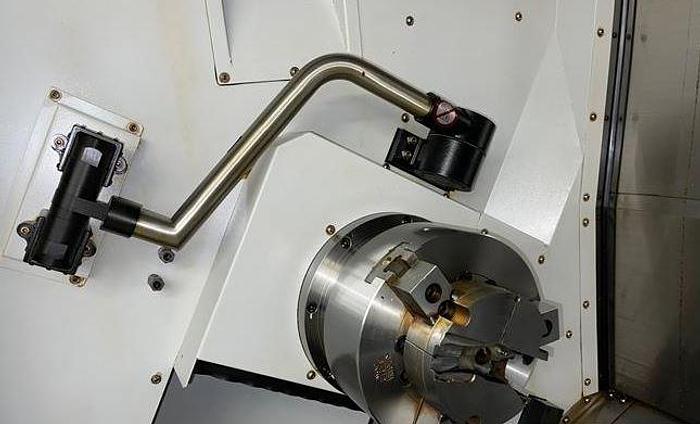

Automatic Tool Eye

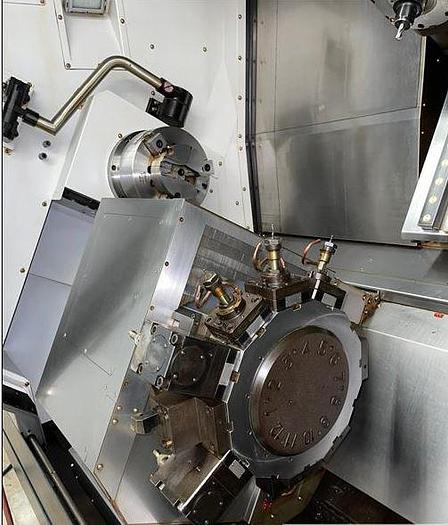

12 Position Lower Turret w/Live Milling
Chip Conveyor
All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma MX2600ST |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118352 |

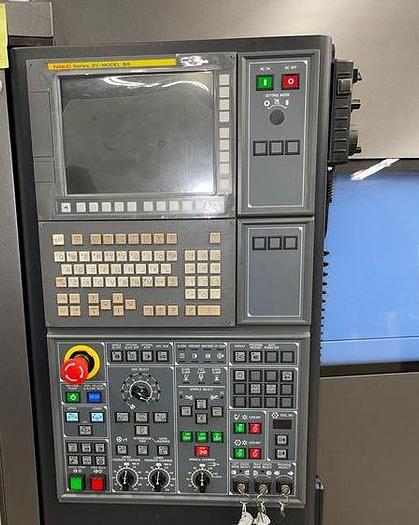

| Machine Control | Fanuc 31i-B5 |

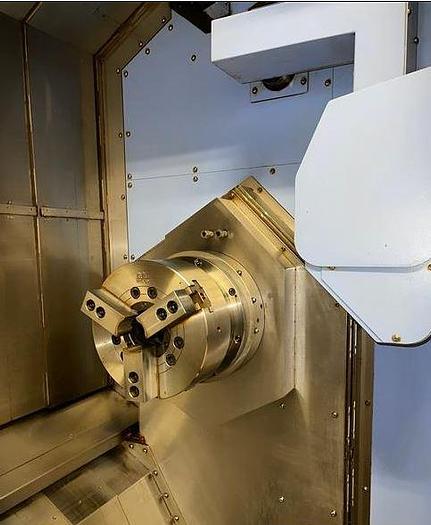

| Chuck Sizes Main / Subspindle | 12" 3-Jaw Hydraulic / 12" 3-Jaw Hydraulic |
| Maximum Swing | 39.4" |
| Maximum Turning Diameter | 29.9" |
| Maximum Turning Length | 60.6" |
| X-axis travel | 24.8" |
| Z-Axis Travel | 62.4 |
| C-Axis Rotation | .001 Degrees |
| Maximum Swing over Bed | 39" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.54" / 3" |
| Main Spindle Speed / Sub Spindle Speed | 4,000 RPM / 4,000 RPM |

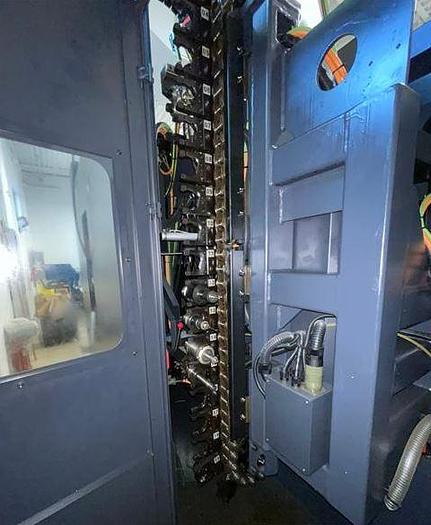

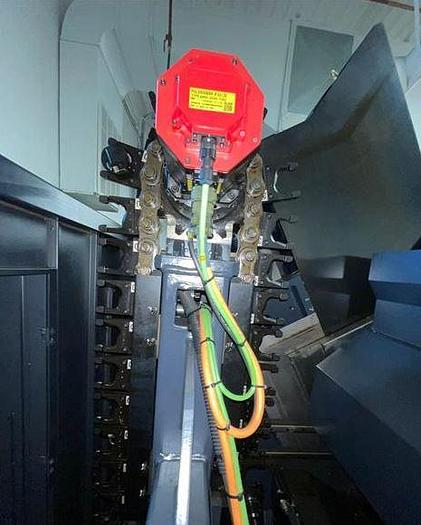

| Tool Magazine Capacity | 40 Station Tool Changer |
| Lower Turret Tools Position | 12 Position Turret |
| Main Spindle Motor / Sub Spindle Motor | 30 HP / NA |
| Milling Spindle Speed | 12,000 RPM |
| Rapid Traverse Rates X, Y / Z | 1417 IPM, 1024 IPM / 1417 IPM |
| Machine Dimensions LxWxH | 201"x103"x119" |
| Machine Weight | 27,557 lbs |
