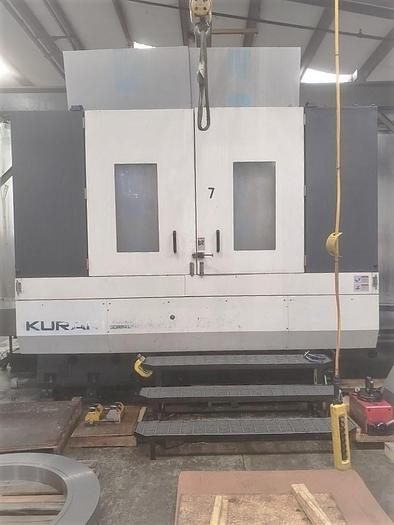

2013 Kuraki AKB-13 CNC Table Type HBM
No longer available
2013 Kuraki AKB-13 CNC Table Type HBM
$425,000 (USD)
New York, NY
Description

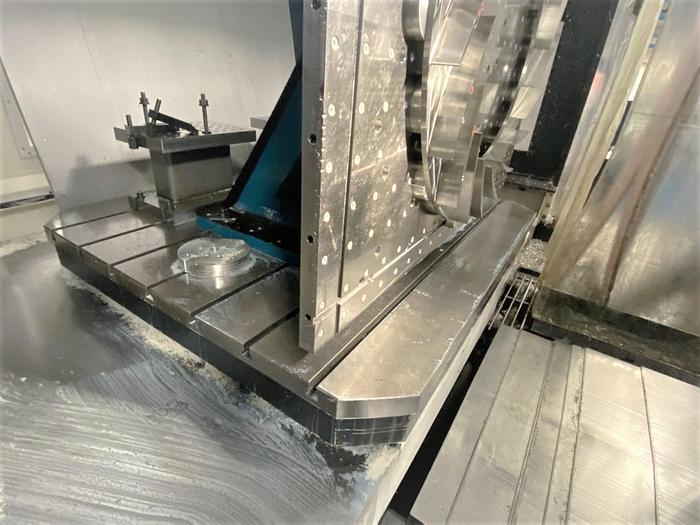

70.87” x 78.74” Full B-Axis Rotary Table

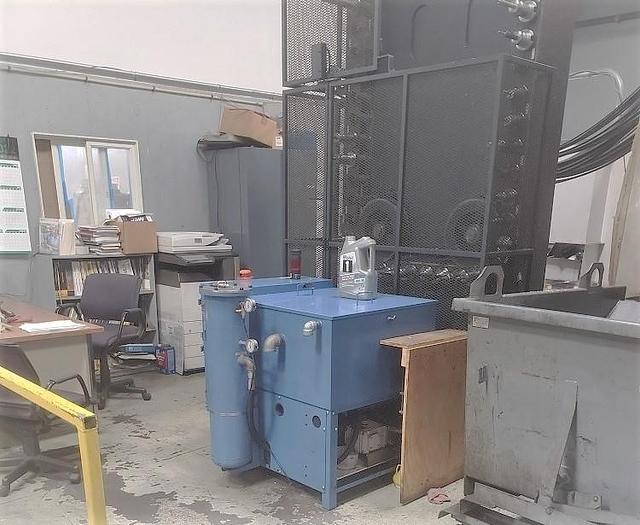

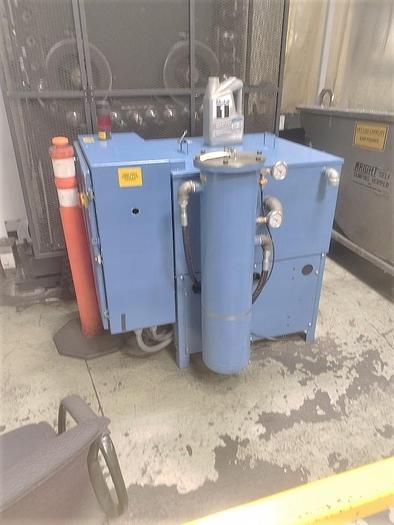

High Pressure Thru Spindle Coolant (700 PSI)

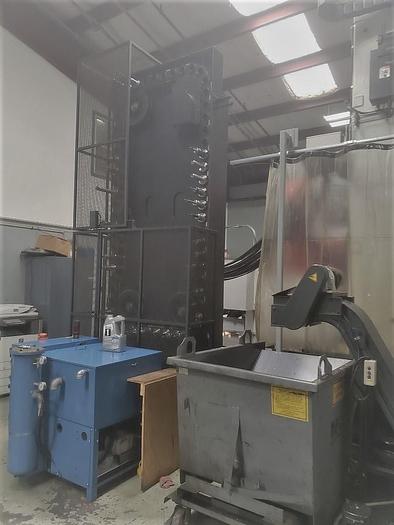

Chip Conveyor
60 Station Tool Changer
Spindle Cooling Device
Work Light
Yellow Signal Light
Scale Feedback System (X,Y,Z,B)
Manual Pulse Generator
Monolever Jog Feed
Z- Axis Gearbox
Inch / Metric Conversion
Multi-Quadrant Circular Interpolation
Linear Interpolation
Helical Interpolation
Cylindrical Interpolation
Polar Coordinate Interpolation
Thread Cutting

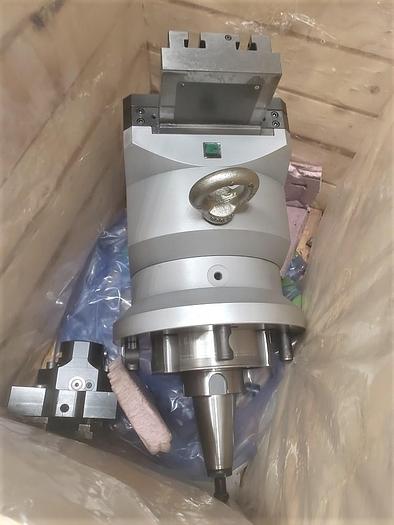

Cogsdill Facing Head

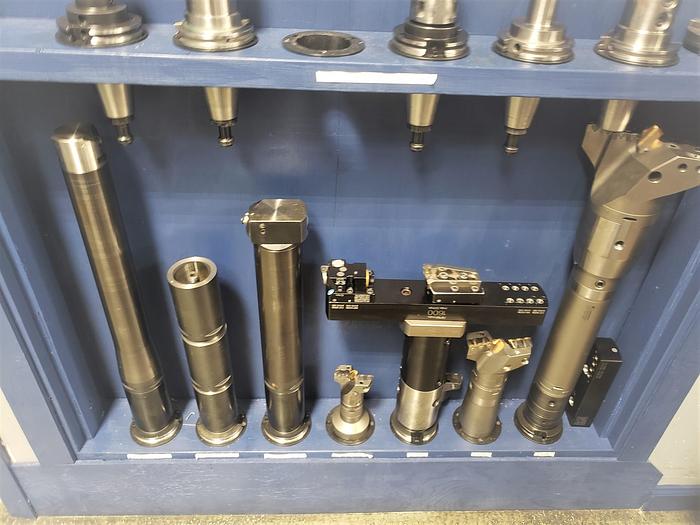

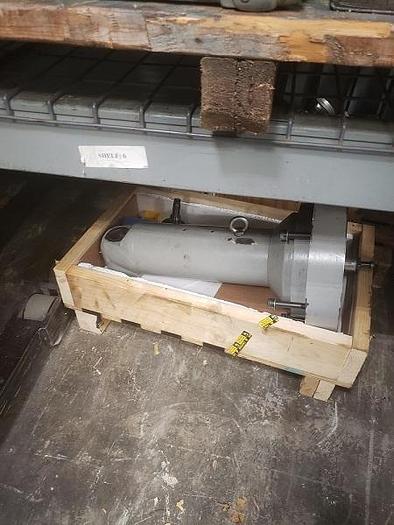

Right Angle Head
Card Interface
RS 232 Port Interface
Specifications
| Manufacturer | Kuraki |
| Model | AKB-13 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118347 |

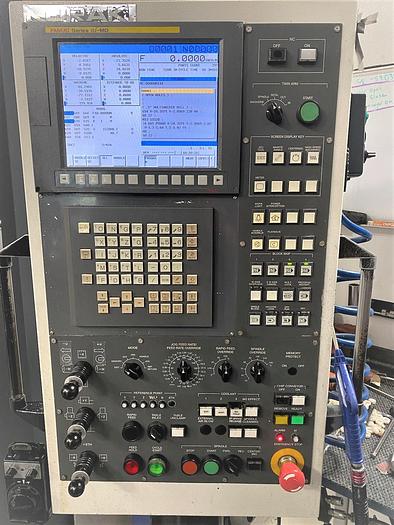

| Machine Control | Fanuc 0i-MD |
| Table size | 70.87” x 78.74” |
| Maximum Table Load | 26,400 lbs |
| Table Indexing | .001 Degrees |
| X-Axis Travel | 118.11" |
| Y-Axis Travel | 78.74" |
| Z-Axis Travel | 27.56" (Spindle Travel) |
| W-Axis Travel | 62.99" (Saddle Travel) |
| Spindle Diameter | 5.12" |
| Spindle Taper | CAT #50 Big Plus |
| Spindle Speeds | 2,500 RPM |
| Tool Magazine Capacity | 60 Position Tool Changer |
| Approximate Floor Space | 295.53" x 295.53" x 188.97" H |
| Approximate Weight | 77,000 lbs |
