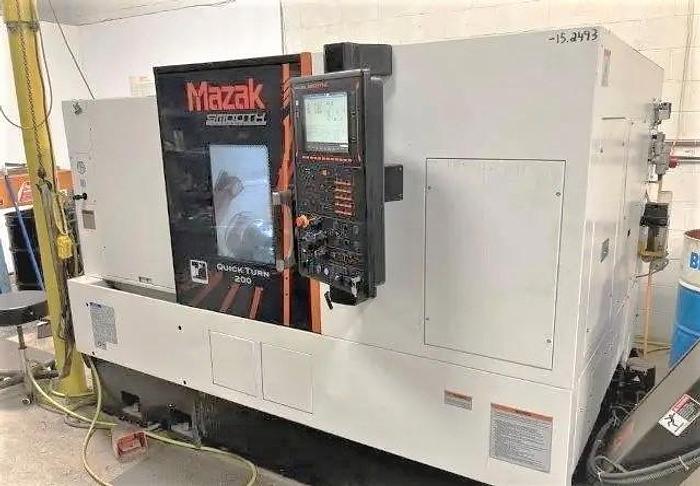

2018 Mazak Quick Turn 200
No longer available
2018 Mazak Quick Turn 200
$79,500 (USD)
Location:Ontario, Canada
Description
8" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
Transformer
USB Port Interface
RS 232 Port Interface
All Available Manuals
All Available Tool Holder
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn 200 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118342 |

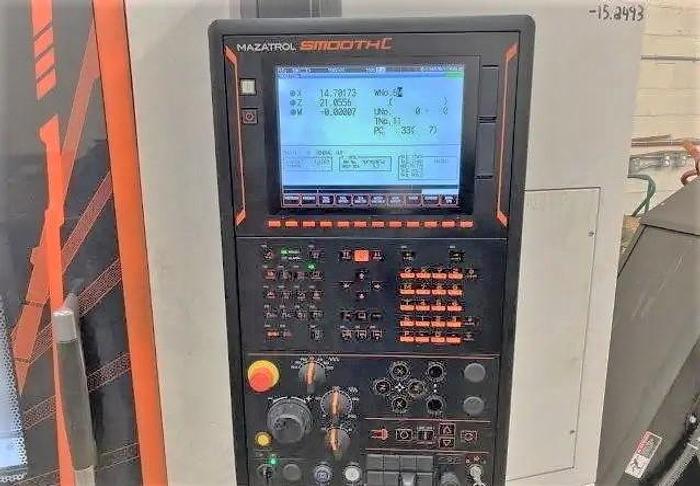

| Machine Control | Mazatrol SmoothC Control |
| Chuck Sizes Main / Subspindle | 8" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 24.02" |
| Maximum Cutting Diameter | 13.78" |
| Maximum Cutting Length | 20.16" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 21.13" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.99" / 2.6" |
| Spindle Speeds | 5,000 RPM |
| Spindle Motor | 35 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Center | 17.6" / MT #5 |
| Machine Dimensions LxWxH | 103"x66"x67" |
| Machine Weight | 10,200 lbs |
