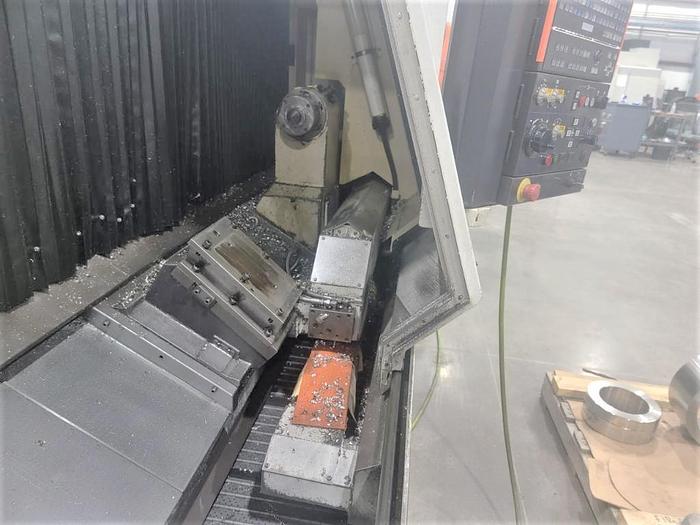

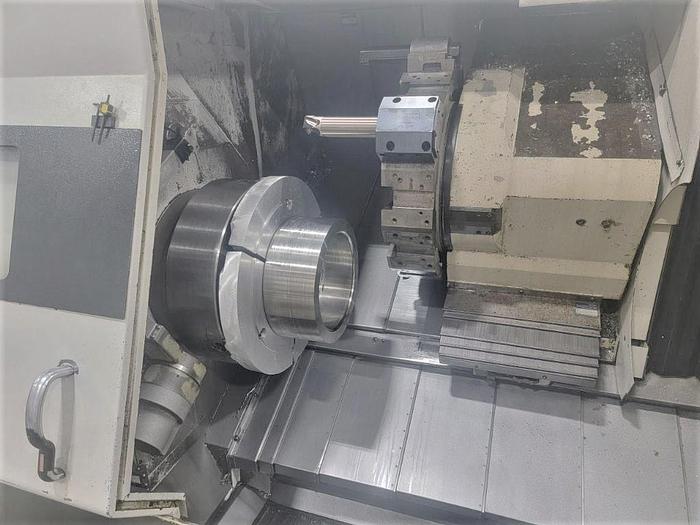

2006 Mazak Nexus QTN 450-II/2000
No longer available
2006 Mazak Nexus QTN 450-II/2000
$109,500 (USD)
Location:Texas
Description
21" 3 Jaw Hydraulic Chuck
Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock
Manual Steady Rest (drag type with cross slide) Range .78" - 7.8"
118 PSI Coolant
Re Threading
Thread Point Start Compensation
EIA/ISO Input Function
12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi-Tap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/2000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118340 |
| Control | Mazatrol Matrix Nexus |
| Chuck Size | 21" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 80.3" |
| Maximum Bar Capacity | 5.5" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 82.13" |
| Spindle Nose / Spindle Bore | A2-15" / 6.5" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 80.375" / MT #5 |
| Machine Dimensions | 204"x90"x80" |
| Machine Weight | 25,000 lbs. |
