2012 Mazak Nexus QTN 400-II/2000
No longer available
2012 Mazak Nexus QTN 400-II/2000
Illinois
Description

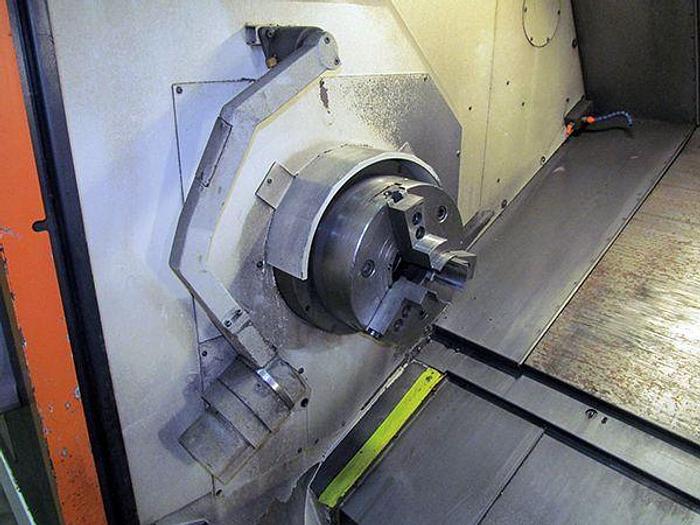

12" 3 Jaw Hydraulic Chuck

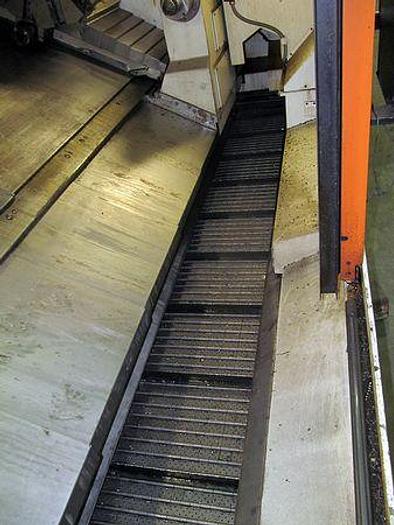

Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi-Tap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling

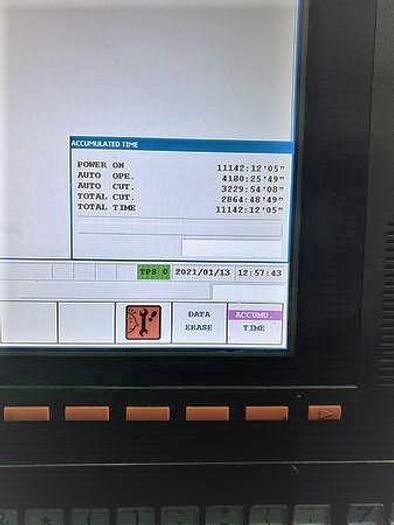

**Total Cut Hours 2,864**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 400-II/2000 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118336 |

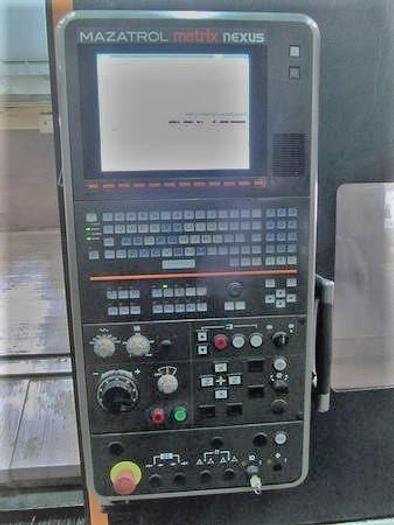

| Control | Mazatrol Matrix Nexus |
| Chuck Size | 15" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 80.3" |
| Maximum Bar Capacity | 4.5" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 82.13" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 2,500 RPM - Geared |
| Spindle Motor | 50 HP |

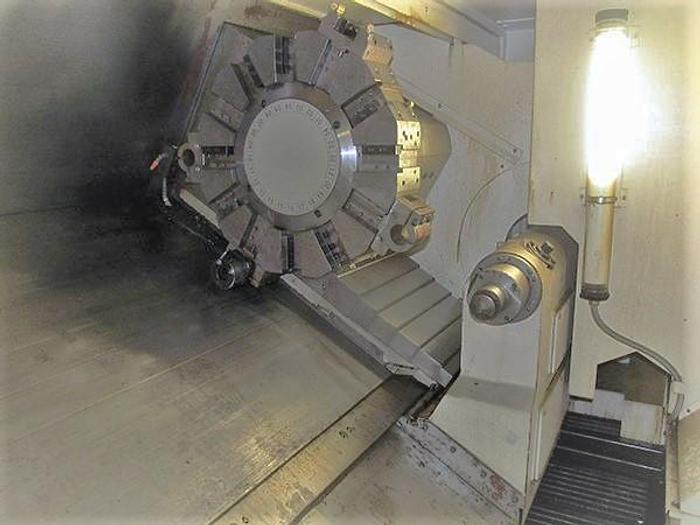

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 80.375" / MT #5 |
| Machine Dimensions | 196"x80"x90" |
| Machine Weight | 22,700 lbs. |
